All diagrams for this model

2001 Scooter XN150 - XN150 (5PR2) [020] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

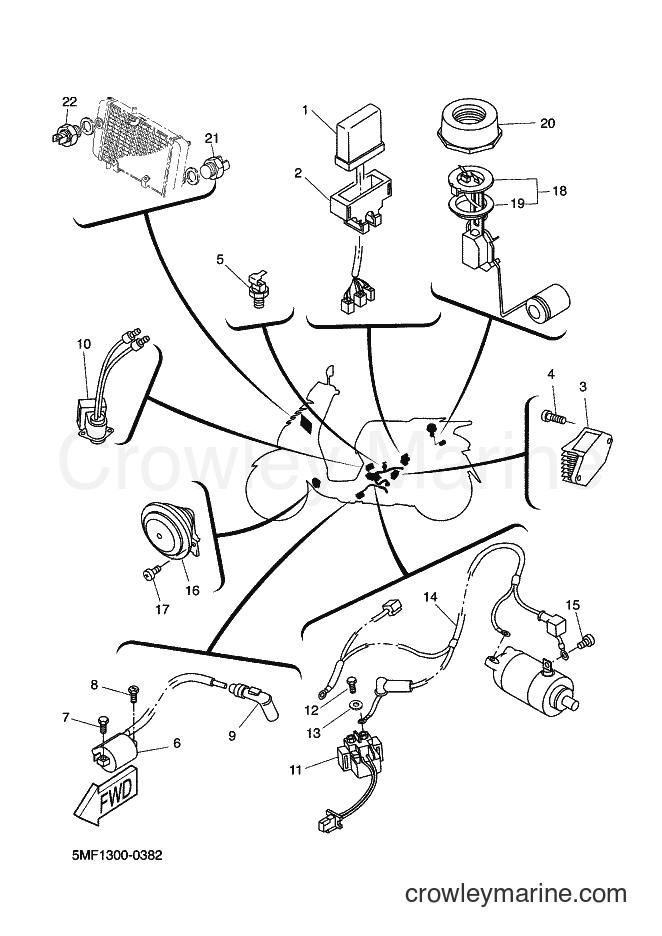

Yamaha Motors XN150 (5PR2) [020] - ELECTRICAL 1
Change View:
C.D.I. UNIT ASSY
1
Yamaha Motors
C.D.I. UNIT ASSY5DS-H5540-00
Required: 1
C.D.I. UNIT ASSY
Price unavailable
BAND
2
Yamaha Motors
BAND5DS-H5546-00
Required: 1
BAND
Price unavailable
RECTIFIER & REGULATOR ASSY
3
Yamaha Motors
RECTIFIER & REGULATOR ASSY5DS-H1960-00
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
SCREW, BINDING
4
Yamaha Motors
SCREW, BINDING90154-06X13
Required: 3
SCREW, BINDING
Price unavailable
SENDER, WATER
5
Yamaha Motors
SENDER, WATER5MF-H3605-10
Required: 1
SENDER, WATER
Price unavailable
IGNITION COIL ASSY
6
Yamaha Motors
IGNITION COIL ASSY3RW-H2310-00
Required: 1
IGNITION COIL ASSY
Price unavailable
-15%
Hexagon Screw
7
Yamaha Motors
Hexagon Screw90153-06034-00
Required: 1
SCREW, HEXAGON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
BOLT, WASHER BASED
8
Yamaha Motors
BOLT, WASHER BASED90105-06841
Required: 1
BOLT, WASHER BASED
Price unavailable
PLUG CAP ASSY
9
Yamaha Motors
PLUG CAP ASSY5MF-H2370-00
Required: 1
PLUG CAP ASSY
Price unavailable
THERMO SWITCH ASSY
10
Yamaha Motors
THERMO SWITCH ASSY3MW-82560-00
Required: 1
THERMO SWITCH ASSY
Price unavailable
-15%
Starter Relay Assembly
11
Yamaha Motors
Starter Relay Assembly3MW-81940-01-00
Required: 1
STARTER RELAY ASSY
Supersedes: 3MW-81940-00-00
Cross Ship
Leaves in 2-5 days
$89.99
$76.49
You save $13.50
More details
CORD, STARTER MOTOR
14
Yamaha Motors
CORD, STARTER MOTOR5MF-H1815-00
Required: 1
CORD, STARTER MOTOR
Price unavailable
BOLT, WITH WASHER
15
Yamaha Motors
BOLT, WITH WASHER90119-05X00
Required: 1
BOLT, WITH WASHER
Price unavailable
-15%
Horn
16
Yamaha Motors
Horn2KG-83371-00-00
Required: 1
HORN
Cross Ship
Leaves in 2-5 days
$93.99
$79.89
You save $14.10
More details
SCREW, BINDING
17
Yamaha Motors
SCREW, BINDING90154-06X02
Required: 1
SCREW, BINDING
Price unavailable
SENDER UNIT ASSY, FUEL METER
18
Yamaha Motors
SENDER UNIT ASSY, FUEL METER5MF-H5752-00
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
. GASKET, SENDER UNIT
19
Yamaha Motors
. GASKET, SENDER UNIT4MJ-H5753-00
Required: 1
. GASKET, SENDER UNIT
Price unavailable
HOUSING, FUEL METER
20
Yamaha Motors
HOUSING, FUEL METER4MJ-F4261-00
Required: 1
HOUSING, FUEL METER
Price unavailable
THERMO SWITCH ASSY
21
Yamaha Motors
THERMO SWITCH ASSY5MF-H2560-00
Required: 1
THERMO SWITCH ASSY
Price unavailable
THERMO SWITCH ASSY
22
Yamaha Motors
THERMO SWITCH ASSY5MF-H2560-10
Required: 1
THERMO SWITCH ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
