All diagrams for this model

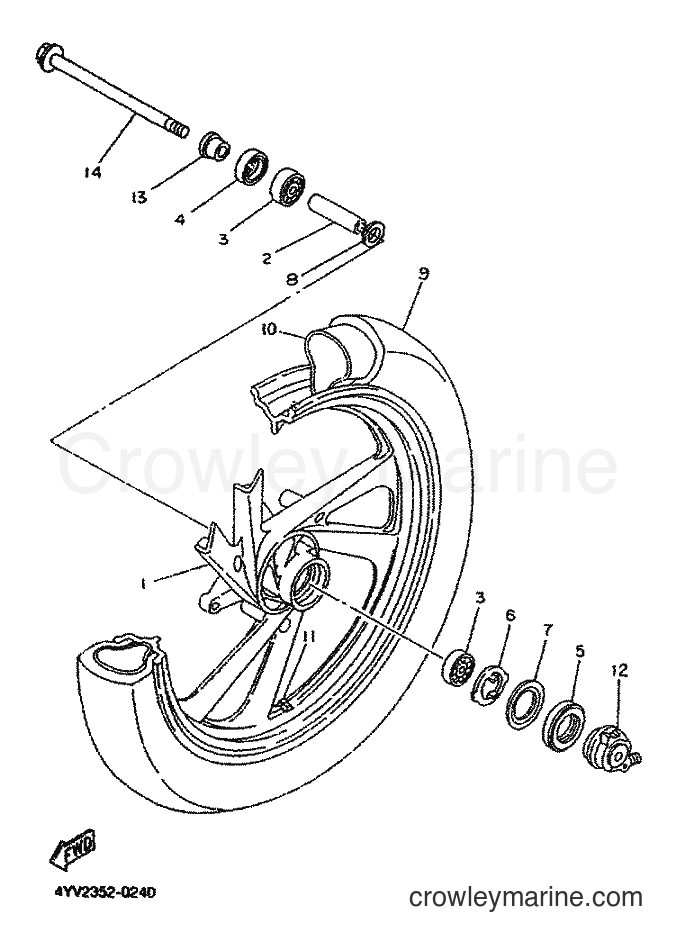

2001 Scooter TZR50 - TZR50 (5DU5) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TZR50 (5DU5) [010] - FRONT WHEEL
Change View:
CAST WHEEL, FRONT
1
Yamaha Motors
CAST WHEEL, FRONT4BA-F5168-00-33
Required: 1
CAST WHEEL, FRONT
Price unavailable
SPACER
2
Yamaha Motors
SPACER90560-12332
Required: 1
SPACER
Price unavailable
-15%
BEARING
3
Yamaha Motors
BEARING93306-30101-00
Required: 2
BEARING
Cross Ship
Leaves in 2-5 days
$39.99
$33.99
You save $6.00
More details
OIL SEAL
4
Yamaha Motors
OIL SEAL93106-20805
Required: 1
OIL SEAL
Price unavailable
OIL SEAL
5
Yamaha Motors
OIL SEAL93105-45804
Required: 1
OIL SEAL
Price unavailable
CLUTCH, METER
6
Yamaha Motors
CLUTCH, METER2RN-F5149-00
Required: 1
CLUTCH, METER
Price unavailable
RETAINER, CLUTCH
7
Yamaha Motors
RETAINER, CLUTCH2RN-F5846-00
Required: 1
RETAINER, CLUTCH
Price unavailable
FLANGE, SPACER
8
Yamaha Motors
FLANGE, SPACER3PE-F5315-A0
Required: 1
FLANGE, SPACER
Price unavailable
COLLAR
13
Yamaha Motors
COLLAR90387-123N2
Required: 1
COLLAR
Price unavailable
-15%
Wheel Axle
14
Yamaha Motors
Wheel Axle51Y-25181-00-00
Required: 1
AXLE, WHEEL
Cross Ship
Leaves in 2-5 days
$17.99
$15.29
You save $2.70
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
