2001 Scooter T105SE - T105SE (5HU2) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

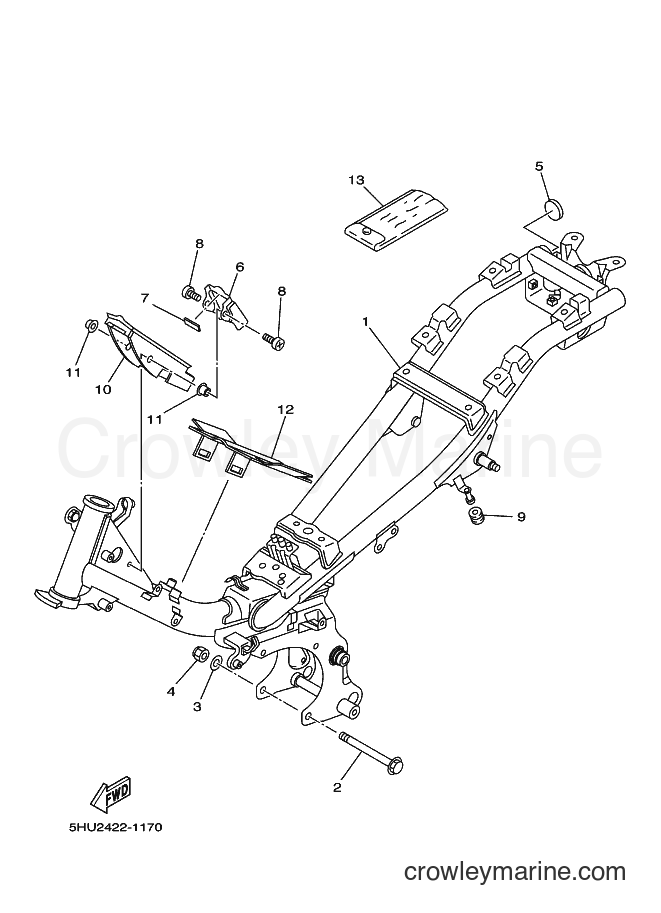

Yamaha Motors T105SE (5HU2) [010] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.5HU-F1110-00
Required: 1
FRAME COMP.
Price unavailable
-15%
Washer Based Bolt
2
Yamaha Motors
Washer Based Bolt90105-08024-00
Required: 3
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
-15%
Plain Washer
3
Yamaha Motors
Plain Washer90201-086P8-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
-15%
Self Locking Nut
4
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 3
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
COVER 2
5
Yamaha Motors
COVER 25HU-F139R-00
Required: 2
COVER 2
Price unavailable
COVER
6
Yamaha Motors
COVER4ST-F117F-00
Required: 1
COVER
Price unavailable
DAMPER
7
Yamaha Motors
DAMPER5HU-F139X-00
Required: 3
DAMPER
Price unavailable
-15%
SPECIAL SHAPE SCREW
8
Yamaha Motors
SPECIAL SHAPE SCREW90149-06184-00
Required: 2
SCREW, BINDING
Cross Ship
Leaves in 2-5 days
$4.85
$4.12
You save $0.73
More details
-15%
GROMMET, WATER TUBE (UPPER)
9
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-10334-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
PROTECTOR
10
Yamaha Motors
PROTECTOR5HU-F117G-00
Required: 1
PROTECTOR
Price unavailable
-15%
Collar
11
Yamaha Motors
Collar90387-06681-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
COVER 3
12
Yamaha Motors
COVER 34ST-F117N-00
Required: 1
COVER 3
Price unavailable
TOOL KIT
13
Yamaha Motors
TOOL KIT5HU-F8100-00
Required: 1
TOOL KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
