All diagrams for this model

2001 Scooter EW50 - EW50 (5LH3) [040] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

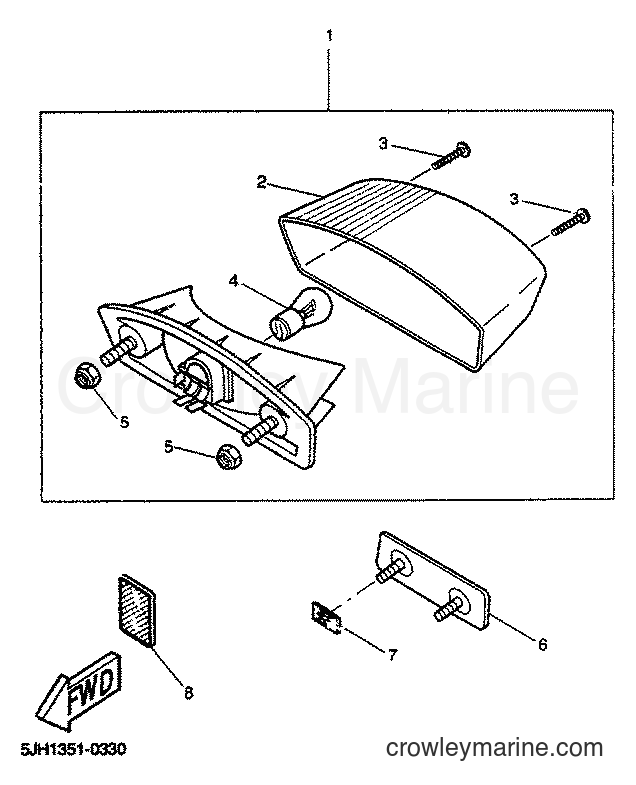

Yamaha Motors EW50 (5LH3) [040] - TAILLIGHT
Change View:
TAILLIGHT ASSY
1
Yamaha Motors
TAILLIGHT ASSY5JH-H4700-00
Required: 1
TAILLIGHT ASSY
Price unavailable
. LENS, TAILLIGHT
2
Yamaha Motors
. LENS, TAILLIGHT5JH-H4721-00
Required: 1
. LENS, TAILLIGHT
Price unavailable
. SCREW, LENS FITTING
3
Yamaha Motors
. SCREW, LENS FITTING5JH-H4724-00
Required: 2
. SCREW, LENS FITTING
Price unavailable
. BULB
4
Yamaha Motors
. BULB3HL-H4535-00
Required: 1
. BULB
Price unavailable
-15%
Nut
5
Yamaha Motors
Nut90179-06X00-00
Required: 2
NUT
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
REAR REFLECTOR ASSY
6
Yamaha Motors
REAR REFLECTOR ASSY5BK-H5130-00
Required: 1
REAR REFLECTOR ASSY
Price unavailable
NUT, SPRING
7
Yamaha Motors
NUT, SPRING90183-04X00
Required: 2
NUT, SPRING
Price unavailable
REFLECTOR, FRONT 1
8
Yamaha Motors
REFLECTOR, FRONT 15HE-H5111-00
Required: 2
REFLECTOR, FRONT 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
