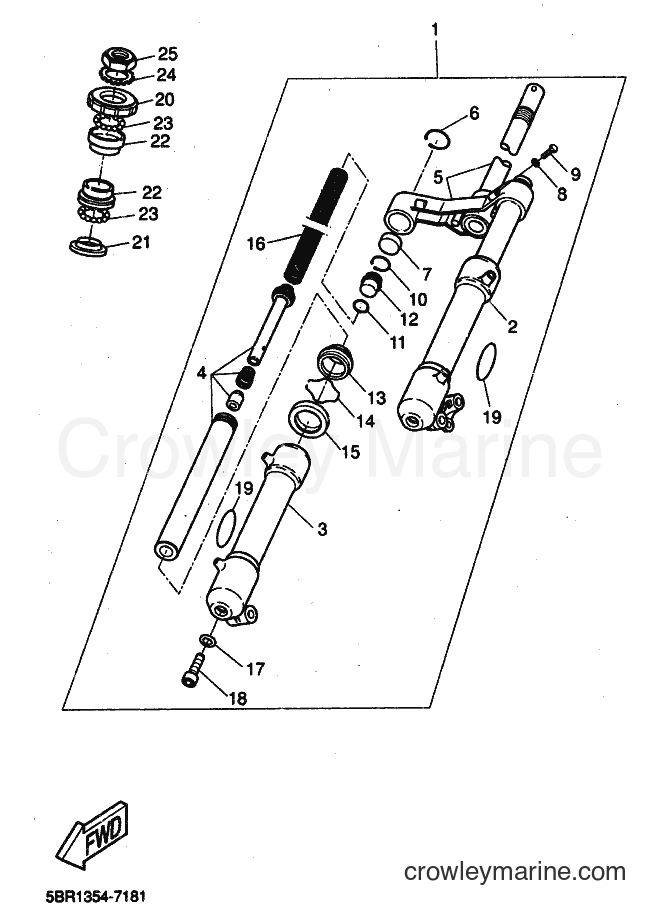

2000 Scooter YQ50L - YQ50L (5KH8) [010] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YQ50L (5KH8) [010] - FRONT FORK
Change View:
FRONT FORK ASSY
1
Yamaha Motors
FRONT FORK ASSY5BR-F3100-02
Required: 1
FRONT FORK ASSY
Price unavailable
.TUBE, OUTER 1 LEFT
2
Yamaha Motors
.TUBE, OUTER 1 LEFT5BR-F3126-00
Required: 1
.TUBE, OUTER 1 LEFT
Price unavailable
.TUBE, OUTER 2 RIGHT
3
Yamaha Motors
.TUBE, OUTER 2 RIGHT5BR-F3136-00
Required: 1
.TUBE, OUTER 2 RIGHT
Price unavailable
.INNER TUBE COMP. 1
4
Yamaha Motors
.INNER TUBE COMP. 15BR-F3110-01
Required: 1
.INNER TUBE COMP. 1
Price unavailable
.UNDER BRACKET COMP.
5
Yamaha Motors
.UNDER BRACKET COMP.5BR-F3340-02
Required: 1
.UNDER BRACKET COMP.
Price unavailable
.RING, SNAP
6
Yamaha Motors
.RING, SNAP4TD-F3153-00
Required: 2
.RING, SNAP
Price unavailable
.PLUG, INNER TUBE
7
Yamaha Motors
.PLUG, INNER TUBE4TD-F3154-00
Required: 2
.PLUG, INNER TUBE
Price unavailable
.WASHER, CAP
8
Yamaha Motors
.WASHER, CAP4TD-F3112-00
Required: 2
.WASHER, CAP
Price unavailable
.BOLT, SPECIAL
9
Yamaha Motors
.BOLT, SPECIAL4TD-F3394-00
Required: 2
.BOLT, SPECIAL
Price unavailable
.CIRCLIP
10
Yamaha Motors
.CIRCLIP4TD-F3183-00
Required: 2
.CIRCLIP
Price unavailable
.O-RING
11
Yamaha Motors
.O-RING4TD-F3147-00
Required: 2
.O-RING
Price unavailable
.BOLT, CAP
12
Yamaha Motors
.BOLT, CAP4TD-F3111-00
Required: 2
.BOLT, CAP
Price unavailable
.SEAL, DUST
13
Yamaha Motors
.SEAL, DUST4TD-F3144-00
Required: 2
.SEAL, DUST
Price unavailable
.CLIP, OIL SEAL
14
Yamaha Motors
.CLIP, OIL SEAL4TD-F3156-00
Required: 2
.CLIP, OIL SEAL
Price unavailable
.OIL SEAL
15
Yamaha Motors
.OIL SEAL4TD-F3145-00
Required: 2
.OIL SEAL
Price unavailable
.SPRING, FRONT FORK
16
Yamaha Motors
.SPRING, FRONT FORK4TD-F3141-00
Required: 2
.SPRING, FRONT FORK
Price unavailable
.WASHER PLAIN
17
Yamaha Motors
.WASHER PLAIN4CU-F3165-00
Required: 2
.WASHER PLAIN
Price unavailable
.BOLT, HEXAGON SOCKET HEAD
18
Yamaha Motors
.BOLT, HEXAGON SOCKET HEAD4TD-F3181-00
Required: 2
.BOLT, HEXAGON SOCKET HEAD
Price unavailable
.EMBLEM
19
Yamaha Motors
.EMBLEM5BR-F3108-00
Required: 2
.EMBLEM
Price unavailable
RACE, BALL 1
20
Yamaha Motors
RACE, BALL 14SB-F3411-01
Required: 1
RACE, BALL 1
Price unavailable
RACE, BALL 4
21
Yamaha Motors
RACE, BALL 44SB-F3414-00
Required: 1
RACE, BALL 4
Price unavailable
RACE, BALL 2
22
Yamaha Motors
RACE, BALL 24SB-F3412-00
Required: 2
RACE, BALL 2
Price unavailable
PLANE BEARING, STEERING
23
Yamaha Motors
PLANE BEARING, STEERING4SB-F3812-00
Required: 2
PLANE BEARING, STEERING
Price unavailable
WASHER
24
Yamaha Motors
WASHER4SB-F3427-01
Required: 1
WASHER
Price unavailable
NUT, FITTING 1
25
Yamaha Motors
NUT, FITTING 14SB-F3453-01
Required: 1
NUT, FITTING 1
Price unavailable
