All diagrams for this model

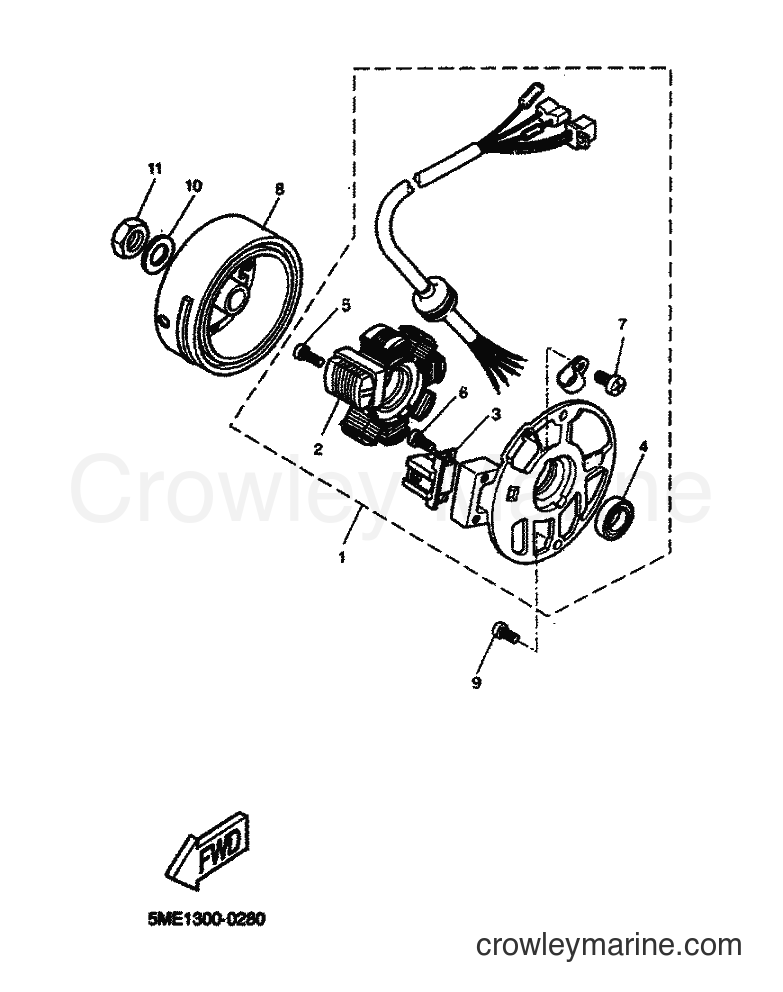

2000 Scooter YQ100 - YQ100 (5ME1) [080] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YQ100 (5ME1) [080] - GENERATOR
Change View:
BASE ASSY
1
Yamaha Motors
BASE ASSY4VP-H5560-00
Required: 1
BASE ASSY
Price unavailable
. STATORCOMP.
2
Yamaha Motors
. STATORCOMP.4VP-H1403-00
Required: 1
. STATORCOMP.
Price unavailable
. COIL, PULSER
3
Yamaha Motors
. COIL, PULSER4VP-H5595-00
Required: 1
. COIL, PULSER
Price unavailable
-15%
OIL SEAL,SO-TYPE
4
Yamaha Motors
OIL SEAL,SO-TYPE93104-19097-00
Required: 1
. OIL SEAL
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
. SCREW, PAN HEAD
5
Yamaha Motors
. SCREW, PAN HEAD96507-05020
Required: 2
. SCREW, PAN HEAD
Price unavailable
. SCREW, PAN HEAD WITH WASHER
7
Yamaha Motors
. SCREW, PAN HEAD WITH WASHER96580-04008
Required: 1
. SCREW, PAN HEAD WITH WASHER
Price unavailable
ROTOR ASSY
8
Yamaha Motors
ROTOR ASSY4VP-H5550-00
Required: 1
ROTOR ASSY
Price unavailable
-15%
Pan Head Screw
9
Yamaha Motors
Pan Head Screw98507-06016-00
Required: 2
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.48
$2.96
You save $0.52
More details
-15%
Plate Washer
10
Yamaha Motors
Plate Washer92907-12600-00
Required: 1
WASHER
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
-15%
NUT (6TA)
11
Yamaha Motors
NUT (6TA)95337-12600-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
