All diagrams for this model

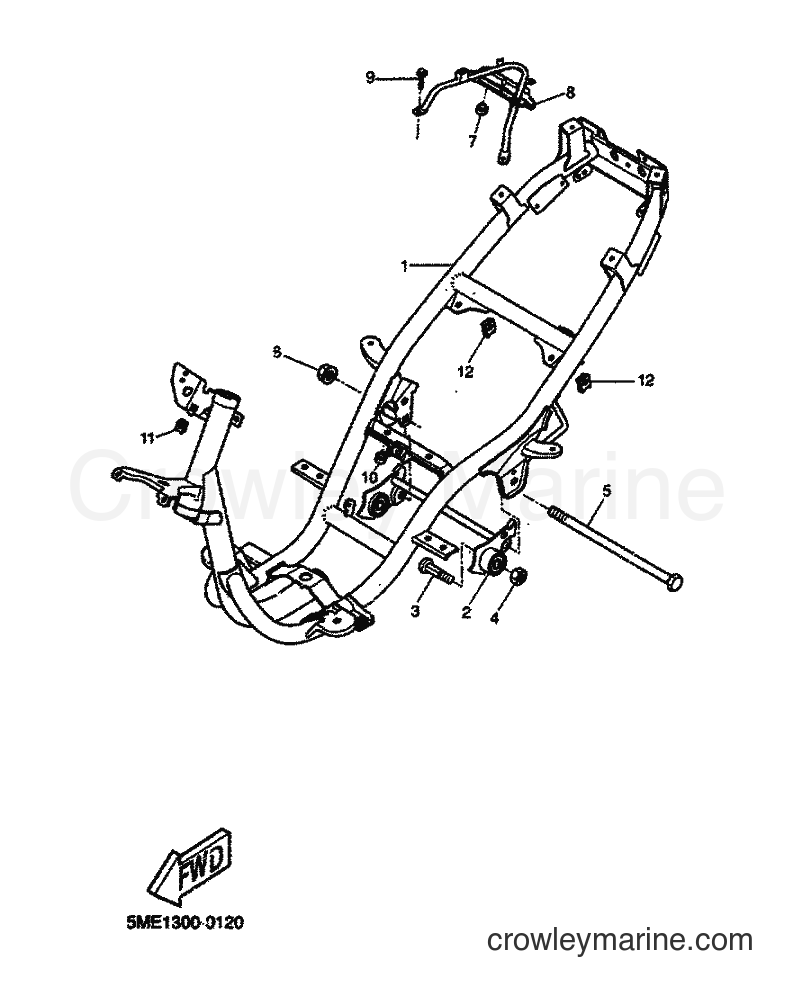

2000 Scooter YQ100 - YQ100 (5ME1) [070] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YQ100 (5ME1) [070] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.5ME-F1110-00
Required: 1
FRAME COMP.
Price unavailable
ENGINE BRACKET COMP.
2
Yamaha Motors
ENGINE BRACKET COMP.5ME-F1410-00
Required: 1
ENGINE BRACKET COMP.
Price unavailable
BOLT, ENGINE MOUNTING 1
3
Yamaha Motors
BOLT, ENGINE MOUNTING 15DS-F1481-00
Required: 2
BOLT, ENGINE MOUNTING 1
Price unavailable
-15%
Self-Locking Nut
4
Yamaha Motors
Self-Locking Nut90185-10154-00
Required: 2
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
BOLT, STUD
6
Yamaha Motors
BOLT, STUD96607-12200
Required: 1
BOLT, STUD
Price unavailable
REINFORCEMENT, TAIL
8
Yamaha Motors
REINFORCEMENT, TAIL5HE-F1232-00
Required: 1
REINFORCEMENT, TAIL
Price unavailable
-15%
Flange Bolt
9
Yamaha Motors
Flange Bolt95817-08016-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
