All diagrams for this model

2000 Scooter YQ100 - YQ100 (5ME1) [050] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

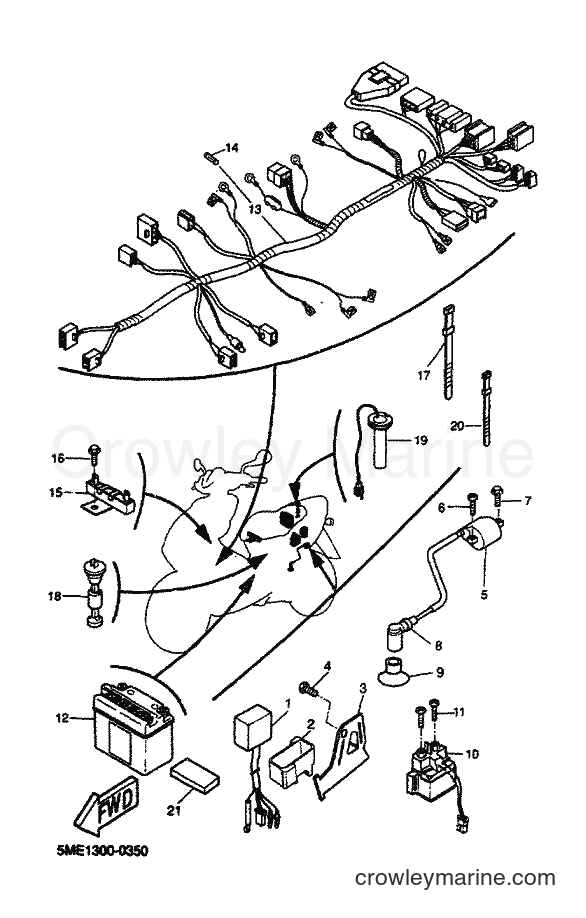

Yamaha Motors YQ100 (5ME1) [050] - ELECTRICAL 2
Change View:
C.D.I. UNIT ASSY
1
Yamaha Motors
C.D.I. UNIT ASSY4VP-H5540-00
Required: 1
C.D.I. UNIT ASSY
Price unavailable
BAND
2
Yamaha Motors
BAND5KK-H5546-00
Required: 1
BAND
Price unavailable
STAY UNIT
3
Yamaha Motors
STAY UNIT5ME-H553A-00
Required: 1
STAY UNIT
Price unavailable
-15%
IGNITION COIL ASSY
5
Yamaha Motors
IGNITION COIL ASSY3KJ-82310-14-00
Required: 1
IGNITION COIL ASSY
Supersedes: 4BE-82310-01-00
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details
-15%
Hexagon Screw
6
Yamaha Motors
Hexagon Screw90153-06034-00
Required: 1
SCREW, HEXAGON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
BOLT, WASHER BASED
7
Yamaha Motors
BOLT, WASHER BASED90105-06841
Required: 1
BOLT, WASHER BASED
Price unavailable
PLUG CAP ASSY
8
Yamaha Motors
PLUG CAP ASSY4VP-H2370-00
Required: 1
PLUG CAP ASSY
Price unavailable
SEAL, PLUG CAP
9
Yamaha Motors
SEAL, PLUG CAP4VP-H2372-00
Required: 1
SEAL, PLUG CAP
Price unavailable
-15%
Starter Relay Assembly
10
Yamaha Motors
Starter Relay Assembly3MW-81940-01-00
Required: 1
STARTER RELAY ASSY
Supersedes: 3MW-81940-00-00
Cross Ship
Leaves in 2-5 days
$89.99
$76.49
You save $13.50
More details
SCREW, BINDING
11
Yamaha Motors
SCREW, BINDING90154-06X03
Required: 2
SCREW, BINDING
Price unavailable
BATTERY ASSY
12
Yamaha Motors
BATTERY ASSY9079R-24279
Required: 1
BATTERY ASSY
Price unavailable
WIRE HARNESS ASSY
13
Yamaha Motors
WIRE HARNESS ASSY5ME-H2590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
. FUSE
14
Yamaha Motors
. FUSE5BR-H2151-00
Required: 1
. FUSE
Price unavailable
RESISTOR ASSY
15
Yamaha Motors
RESISTOR ASSY5BK-H5370-00
Required: 1
RESISTOR ASSY
Price unavailable
BOLT, WASHER BASED
16
Yamaha Motors
BOLT, WASHER BASED90105-06841
Required: 1
BOLT, WASHER BASED
Price unavailable
-15%
Switch Cord Band
17
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 6
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
-15%
Oil Level Gauge Assembly
18
Yamaha Motors
Oil Level Gauge Assembly53L-85720-10-00
Required: 1
OIL LEVEL GAUGE ASSY
Supersedes: 3VL-H5720-10-00
Cross Ship
Leaves in 2-5 days
$64.99
$55.24
You save $9.75
More details
SENDER UNIT ASSY, FUEL METER
19
Yamaha Motors
SENDER UNIT ASSY, FUEL METER5ME-H5752-00
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
CLAMP, WIRE HARNESS 1
20
Yamaha Motors
CLAMP, WIRE HARNESS 15BR-F1335-00
Required: 1
CLAMP, WIRE HARNESS 1
Price unavailable
DAMPER
21
Yamaha Motors
DAMPER5BR-F174X-00
Required: 2
DAMPER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
