2000 Scooter YN50 - YN50 (5ADT) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

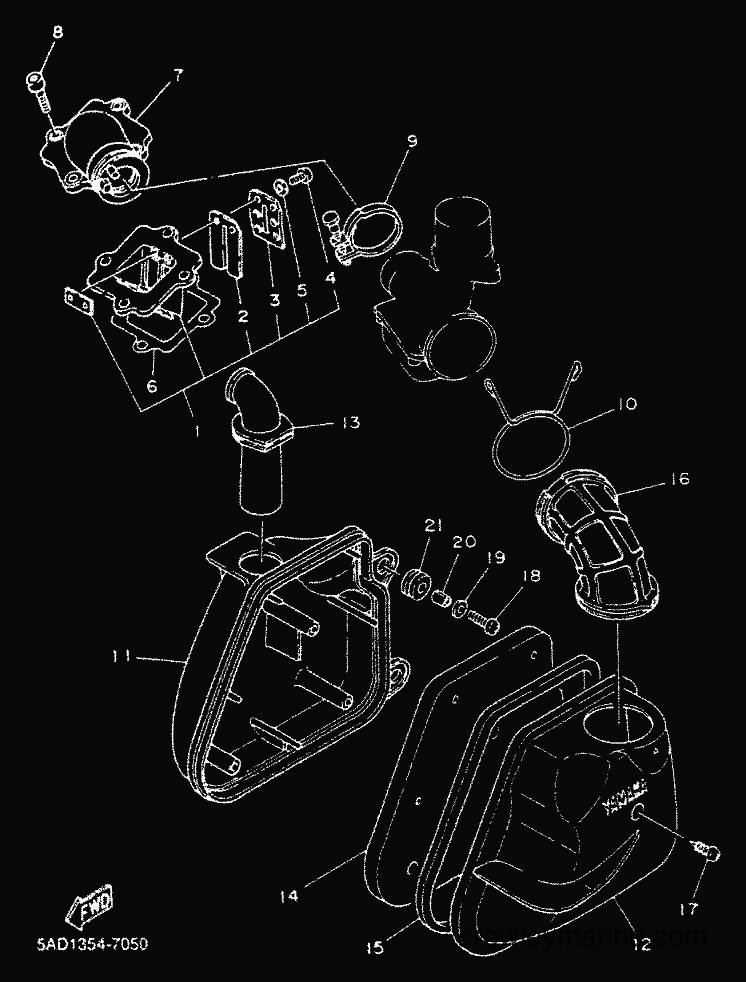

Yamaha Motors YN50 (5ADT) [010] - INTAKE
Change View:
REED VALVE ASSY
1
Yamaha Motors
REED VALVE ASSY4CU-E3610-00
Required: 1
REED VALVE ASSY
Price unavailable
. READ VALVE ASSY
2
Yamaha Motors
. READ VALVE ASSY4CU-E1613-00
Required: 2
. READ VALVE ASSY
Price unavailable
. STOPPER, REED VALVE
3
Yamaha Motors
. STOPPER, REED VALVE4CU-E3616-00
Required: 2
. STOPPER, REED VALVE
Price unavailable
-15%
PAN SCREW
4
Yamaha Motors
PAN SCREW98517-03008-00
Required: 4
. SCREW, PAN HEAD
Supersedes: 98507-03008-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
-15%
Washer (3SX)
5
Yamaha Motors
Washer (3SX)92907-03600-00
Required: 4
. WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
GASKET, VALVE SEAT
6
Yamaha Motors
GASKET, VALVE SEAT4CU-E3621-00
Required: 1
GASKET, VALVE SEAT
Price unavailable
MANIFOLD, INTAKE
7
Yamaha Motors
MANIFOLD, INTAKE4CU-E3555-00
Required: 1
MANIFOLD, INTAKE
Price unavailable
Bolt
8
Yamaha Motors
Bolt91317-06020-00
Required: 4
BOLT
Supersedes: 91318-06020-00
Cross Ship
Leaves in 2-5 days
$4.23
More details
HOSE CLAMP ASSY
9
Yamaha Motors
HOSE CLAMP ASSY90450-32X00
Required: 1
HOSE CLAMP ASSY
Price unavailable
BASE IGNITION
10
Yamaha Motors
BASE IGNITION004-67241-40
Required: 1
BASE IGNITION
Price unavailable
CASE, AIR CLEANER 1
11
Yamaha Motors
CASE, AIR CLEANER 13WG-E4411-00
Required: 1
CASE, AIR CLEANER 1
Price unavailable
CAP, CLEANER CASE 1
12
Yamaha Motors
CAP, CLEANER CASE 13WG-E4412-00
Required: 1
CAP, CLEANER CASE 1
Price unavailable
DUCT
13
Yamaha Motors
DUCT3WG-E4437-00
Required: 1
DUCT
Price unavailable
ELEMENT, AIR CLEANER
14
Yamaha Motors
ELEMENT, AIR CLEANER3WG-E4451-00
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
SEAL
15
Yamaha Motors
SEAL3WG-E4452-00
Required: 1
SEAL
Price unavailable
JOINT, AIR CLEANER 1
16
Yamaha Motors
JOINT, AIR CLEANER 15AD-E4453-00
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
SCREW, TAPPING
17
Yamaha Motors
SCREW, TAPPING9770L-50525
Required: 3
SCREW, TAPPING
Price unavailable
SCREW, PAN HEAD
18
Yamaha Motors
SCREW, PAN HEAD9850M-06020
Required: 2
SCREW, PAN HEAD
Price unavailable
WASHER, PLATE
19
Yamaha Motors
WASHER, PLATE90201-06815
Required: 2
WASHER, PLATE
Price unavailable
-15%
COLLAR
20
Yamaha Motors
COLLAR90387-067V1-00
Required: 2
COLLAR
Supersedes: 90387-06X06-00
Cross Ship
Leaves in 2-5 days
$3.30
$2.80
You save $0.50
More details
GROMMET
21
Yamaha Motors
GROMMET90480-12X00
Required: 2
GROMMET
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
