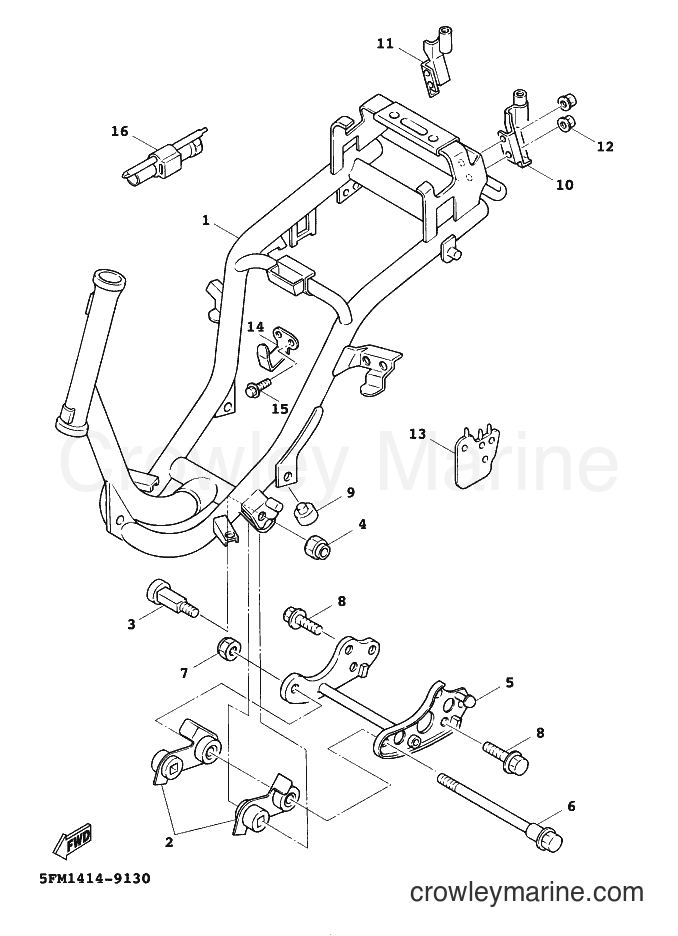

2003 Scooter XC125A - XC125A (5MJ3) [010] FRAME diagram
![Yamaha Motors XC125A (5MJ3) [010] - FRAME](https://cdn.crowleymarine.com/yamaha/xdorBaQG.png)
1
Yamaha Motors
FRAME COMP.5MJ-F1110-00-33
Required: 1
FRAME COMP.
Price unavailable
-11%
2
Yamaha Motors
Engine Bracket Com4TE-F1420-31-00
Required: 1
ENGINE BRACKET COMP. 2
Supersedes: 4TE-F1420-11-00
No longer availableSearch Nationwide Inventory
$62.87
You save $8.12
-15%
3
Yamaha Motors
ENGINE MOUNTING BOLT4CW-F1481-00-00
Required: 2
BOLT, ENGINE MOUNTING 1
No longer availableSearch Nationwide Inventory
$1.27
You save $0.23
-50%
In stock
5+ in stock
$2.08
You save $2.08
5
Yamaha Motors
ENGINE BRACKET COMP.5MJ-F1410-00
Required: 1
ENGINE BRACKET COMP.
Price unavailable
-15%
No longer availableSearch Nationwide Inventory
$3.44
You save $0.61
-50%
In stock
5+ in stock
$2.08
You save $2.08
-15%
8
Yamaha Motors
Flange Bolt95817-10030-00
Required: 4
BOLT, FLANGE
Supersedes: 95807-10030-00
$8.07
You save $1.42
-15%
9
Yamaha Motors
MAIN STAND STOPPER4CW-F7114-00-00
Required: 2
STOPPER, MAIN STAND
$0.98
You save $0.17
10
Yamaha Motors
STAY, CARRIER5FM-F1271-00
Required: 1
STAY, CARRIER
Price unavailable
11
Yamaha Motors
STAY, CARRIER5FM-F1272-00
Required: 1
STAY, CARRIER
Price unavailable
-15%
$0.85
You save $0.15
13
Yamaha Motors
FLAP, FRONT FENDER4TE-F1521-00
Required: 1
FLAP, FRONT FENDER
Price unavailable
14
Yamaha Motors
HOOK, SEAT4CW-F4755-00
Required: 1
HOOK, SEAT
Price unavailable
-15%
$8.92
You save $1.57
16
Yamaha Motors
TOOL KIT5MJ-F8100-00
Required: 1
TOOL KIT
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
