2000 Scooter XC125A - XC125A (5MJ5) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

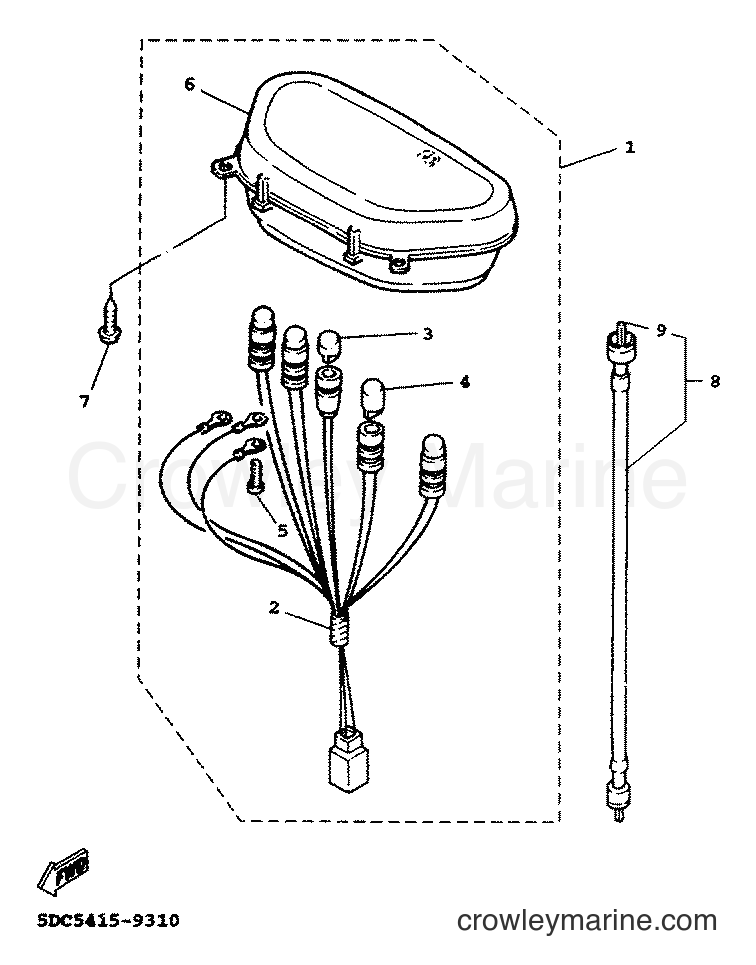

Yamaha Motors XC125A (5MJ5) [010] - METER

Change View:

Yamaha Motors

SPEEDOMETER ASSY4TG-H3510-10

Required: 1

SPEEDOMETER ASSY

Price unavailable

Yamaha Motors

. SOCKET CORD ASSY5MJ-H3509-00

Required: 3

. SOCKET CORD ASSY

Price unavailable

-15%

Yamaha Motors

Obsolete Yamaha Part3GM-83517-00-00

Required: 2

. BULB

Supersedes: 3KW-H3517-00-00

~~$8.49~~

$7.22

You save $1.27

More details

-15%

Yamaha Motors

Bulb (14V-3W)4CW-H3517-00-00

Required: 3

. BULB

No longer availableSearch Nationwide Inventory

~~$0.90~~

$0.76

You save $0.14

More details

-15%

Yamaha Motors

Screw with Washer90159-03102-00

Required: 3

. SCREW, WITH WASHER

~~$2.30~~

$1.96

You save $0.35

More details

Yamaha Motors

. CASE, METER UPPER4TC-H353E-00

Required: 1

. CASE, METER UPPER

Price unavailable

-15%

Yamaha Motors

Truss Head Tapping Screw97707-50016-00

Required: 3

SCREW, TAPPING

In stock

Only 4 remaining

~~$1.85~~

$1.57

You save $0.28

More details

Yamaha Motors

SPEEDOMETER CABLE ASSY5FM-H3550-00

Required: 1

SPEEDOMETER CABLE ASSY

Price unavailable

Yamaha Motors

. WIRE, SPEEDOMETER CABLE5FM-H3551-00

Required: 1

. WIRE, SPEEDOMETER CABLE

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
