All diagrams for this model

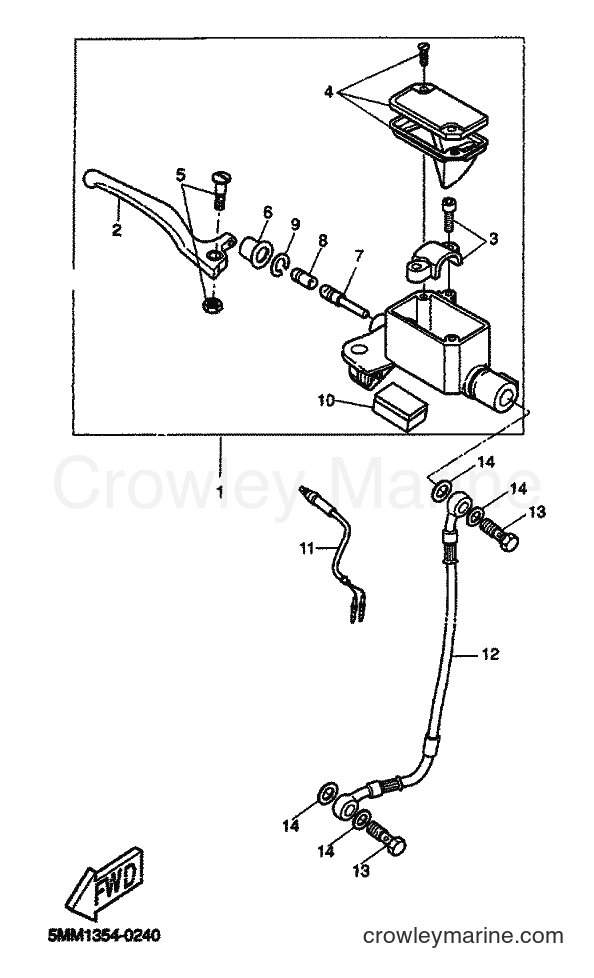

2000 Scooter CW50 - CW50 (5MN1) [030] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50 (5MN1) [030] - FRONT MASTER CYLINDER
Change View:
MASTER CYLINDER ASSY
1
Yamaha Motors
MASTER CYLINDER ASSY4VV-F583T-20
Required: 1
MASTER CYLINDER ASSY
Price unavailable
. LEVER 2
2
Yamaha Motors
. LEVER 24VV-H3922-20
Required: 1
. LEVER 2
Price unavailable
. BRACKET, MASTER CYLINDER
3
Yamaha Motors
. BRACKET, MASTER CYLINDER4TD-F5867-00
Required: 1
. BRACKET, MASTER CYLINDER
Price unavailable
. CAP, RESERVOIR
4
Yamaha Motors
. CAP, RESERVOIR4VV-F5852-00
Required: 1
. CAP, RESERVOIR
Price unavailable
. BOLT, LEVER
5
Yamaha Motors
. BOLT, LEVER4VV-H3945-00
Required: 1
. BOLT, LEVER
Price unavailable
. BOOT
6
Yamaha Motors
. BOOT4TD-F6339-00
Required: 1
. BOOT
Price unavailable
. PISTON, MASTER CYLINDER
7
Yamaha Motors
. PISTON, MASTER CYLINDER4TD-F5856-00
Required: 1
. PISTON, MASTER CYLINDER
Price unavailable
. PIN, PAD
8
Yamaha Motors
. PIN, PAD4TD-F5924-00
Required: 1
. PIN, PAD
Price unavailable
. CLIP
9
Yamaha Motors
. CLIP4TD-F5925-00
Required: 1
. CLIP
Price unavailable
. MASTER CYLINDER SUB ASSY
10
Yamaha Motors
. MASTER CYLINDER SUB ASSY4VV-F5870-00
Required: 1
. MASTER CYLINDER SUB ASSY
Price unavailable
-15%
STOP SWITCH ASSEMBLY
11
Yamaha Motors
STOP SWITCH ASSEMBLY5XL-H3980-00-00
Required: 1
FRONT STOP SWITCH ASSY
Supersedes: 5AD-H3980-01-00
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
-15%
Plain Washer
14
Yamaha Motors
Plain Washer90201-10X03-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
