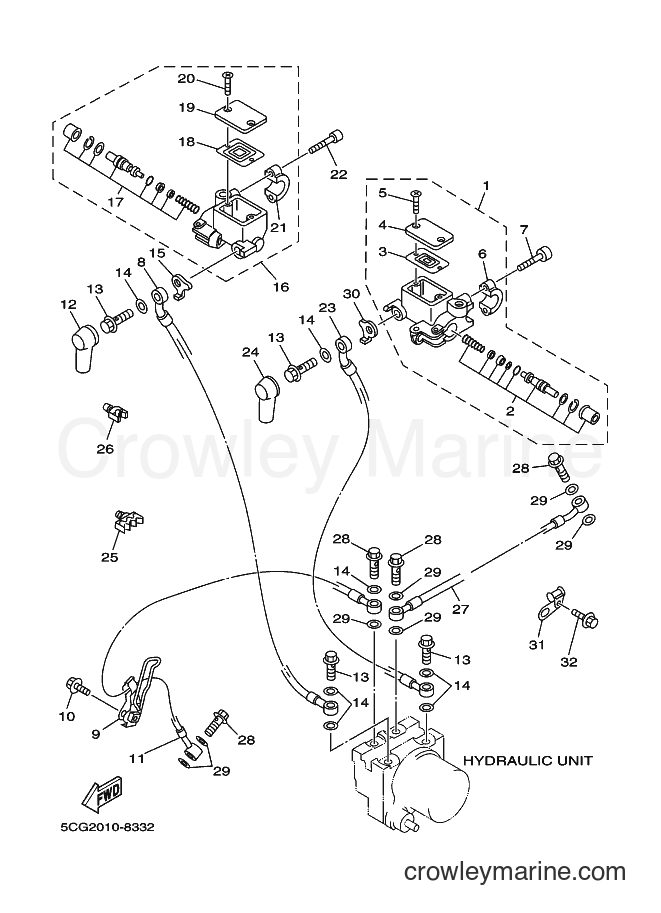

1999 Scooter YP250A - YP250A (5DF3) [070] FRONT MASTER CYLINDER diagram
![Yamaha Motors YP250A (5DF3) [070] - FRONT MASTER CYLINDER](https://cdn.crowleymarine.com/yamaha/2KIwWJHE.png)
1
Yamaha Motors
MASTER CYLINDER ASSY5CG-2583T-A0
Required: 1
MASTER CYLINDER ASSY
Price unavailable
2
Yamaha Motors
. CYLINDER KIT, MASTER5CG-W0041-Q0
Required: 1
. CYLINDER KIT, MASTER
Price unavailable
-15%
3
Yamaha Motors
DIAPHRAGM RESERVOR3RW-25854-00-00
Required: 1
. DIAPHRAGM, RESERVOIR
$15.29
You save $2.70
-15%
4
Yamaha Motors
Reservoir Cap4GY-25852-01-00
Required: 1
. CAP, RESERVOIR
Supersedes: 3RW-25852-00-00
$39.09
You save $6.90
-15%
5
Yamaha Motors
Flat Screw98707-04012-00
Required: 2
. SCREW, FLAT HEAD
Supersedes: 98706-04012-00
$1.57
You save $0.28
-15%
6
Yamaha Motors
Master Cylinder Bracket56A-25867-00-00
Required: 1
. BRACKET, MASTER CYLINDER
Supersedes: 3RW-25867-00-00
$27.19
You save $4.80
-50%
In stock
Only 1 remaining
$1.33
You save $1.33
8
Yamaha Motors
BRAKE HOSE ASSY5CG-2584A-A0
Required: 1
BRAKE HOSE ASSY
Price unavailable
9
Yamaha Motors
HOLDER, BRAKE HOSE 24HC-25876-00
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
-50%
10
Yamaha Motors
Flange Bolt95817-06020-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06020-00
In stock
Only 2 remaining
$1.75
You save $1.75
11
Yamaha Motors
HOSE, BRAKE5CG-2584B-00
Required: 1
HOSE, BRAKE
Price unavailable
12
Yamaha Motors
BOOT, MASTER CYLINDER5CG-25862-00
Required: 1
BOOT, MASTER CYLINDER
Price unavailable
-15%
$10.62
You save $1.87
-15%
14
Yamaha Motors
Plate Washer90201-10118-00
Required: 7
WASHER, PLATE
In stock
Only 5 remaining
$3.23
You save $0.57
15
Yamaha Motors
WASHER, LOCK5CG-25844-00
Required: 1
WASHER, LOCK
Price unavailable
16
Yamaha Motors
MASTER CYLINDER ASSY5CG-2583T-B0
Required: 1
MASTER CYLINDER ASSY
Price unavailable
-15%
17
Yamaha Motors
Master Cylinder Kit1JL-25807-01-00
Required: 1
. CYLINDER KIT, MASTER
Supersedes: 1JL-W0041-01-00
$73.94
You save $13.05
-15%
18
Yamaha Motors
DIAPHRAGM RESERVOR3RW-25854-00-00
Required: 1
. DIAPHRAGM, RESERVOIR
$15.29
You save $2.70
-15%
19
Yamaha Motors
Reservoir Cap4GY-25852-01-00
Required: 1
. CAP, RESERVOIR
Supersedes: 3RW-25852-00-00
$39.09
You save $6.90
-15%
20
Yamaha Motors
Flat Screw98707-04012-00
Required: 2
. SCREW, FLAT HEAD
Supersedes: 98706-04012-00
$1.57
You save $0.28
-15%
21
Yamaha Motors
Master Cylinder Bracket56A-25867-00-00
Required: 1
. BRACKET, MASTER CYLINDER
Supersedes: 3RW-25867-00-00
$27.19
You save $4.80
-50%
In stock
Only 1 remaining
$1.33
You save $1.33
23
Yamaha Motors
HOSE, BRAKE5CG-2584C-00
Required: 1
HOSE, BRAKE
Price unavailable
-15%
24
Yamaha Motors
MASTER CYLINDER BOOT4L0-25862-01-00
Required: 1
BOOT, MASTER CYLINDER
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
25
Yamaha Motors
CLAMP 25CG-81678-00
Required: 2
CLAMP 2
Price unavailable
26
Yamaha Motors
CLAMP 15CG-81677-00
Required: 1
CLAMP 1
Price unavailable
27
Yamaha Motors
HOSE, BRAKE5CG-25874-00
Required: 1
HOSE, BRAKE
Price unavailable
-15%
$10.62
You save $1.87
-15%
29
Yamaha Motors
Plate Washer90201-10118-00
Required: 7
WASHER, PLATE
In stock
Only 5 remaining
$3.23
You save $0.57
30
Yamaha Motors
WASHER, LOCK5CG-25844-00
Required: 1
WASHER, LOCK
Price unavailable
31
Yamaha Motors
HOLDER, WIRE 24HC-2637H-00
Required: 1
HOLDER, WIRE 2
Price unavailable
-15%
$0.81
You save $0.14
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
