1999 Scooter XC125TR - XC125TR (4THJ) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

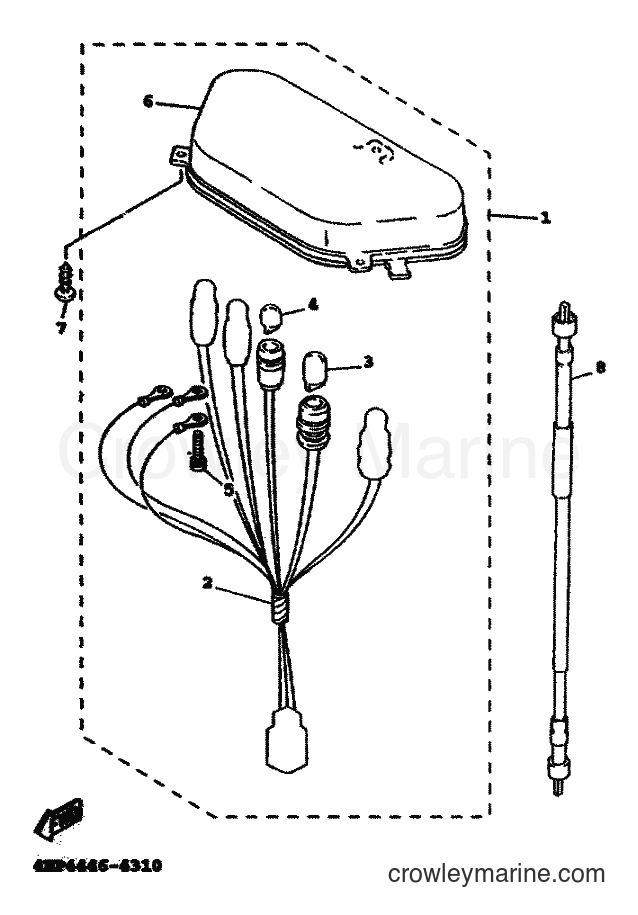

Yamaha Motors XC125TR (4THJ) [010] - METER
Change View:
SPEEDOMETER ASSY
1
Yamaha Motors
SPEEDOMETER ASSY4TG-H3510-00
Required: 1
SPEEDOMETER ASSY
Price unavailable
. SOCKET CORD ASSY
2
Yamaha Motors
. SOCKET CORD ASSY4CW-H3509-00
Required: 1
. SOCKET CORD ASSY
Price unavailable
-15%
Obsolete Yamaha Part
3
Yamaha Motors
Obsolete Yamaha Part3GM-83517-00-00
Required: 2
. BULB
Supersedes: 3KW-H3517-00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
-15%
Screw with Washer
5
Yamaha Motors
Screw with Washer90159-03102-00
Required: 3
. SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
. CASE, METER UPPER
6
Yamaha Motors
. CASE, METER UPPER4TG-H353E-00
Required: 1
. CASE, METER UPPER
Price unavailable
SPEEDOMETER CABLE ASSY
8
Yamaha Motors
SPEEDOMETER CABLE ASSY4HP-H3550-00
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
