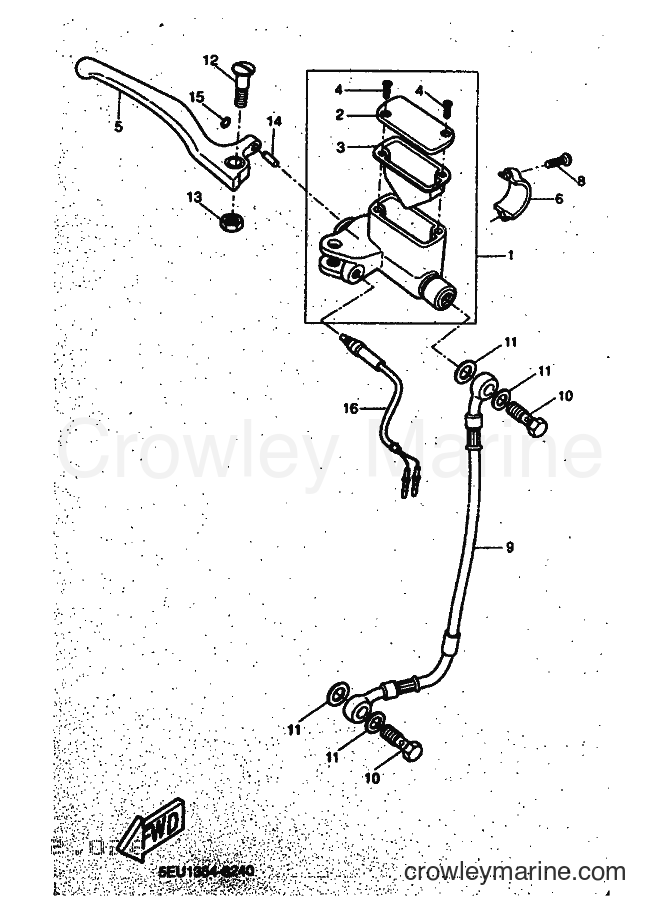

1998 Scooter YH50 - YH50 (5EU5) [010] FRONT MASTER CYLINDER diagram
![Yamaha Motors YH50 (5EU5) [010] - FRONT MASTER CYLINDER](https://cdn.crowleymarine.com/yamaha/Ana9odB5.png)
1
Yamaha Motors
MASTER CYLINDER ASSY5EU-F583T-00
Required: 1
MASTER CYLINDER ASSY
Price unavailable
2
Yamaha Motors
. CAP, RESERVOIR5BK-F5852-00
Required: 1
. CAP, RESERVOIR
Price unavailable
3
Yamaha Motors
. DIAPHRAGM, RESERVOIR5BK-F5854-00
Required: 1
. DIAPHRAGM, RESERVOIR
Price unavailable
4
Yamaha Motors
. SCREW5BK-F589H-00
Required: 2
. SCREW
Price unavailable
5
Yamaha Motors
. LEVER 25EU-H3922-00
Required: 1
. LEVER 2
Price unavailable
6
Yamaha Motors
. BRACKET, MASTER CYLINDER5EU-F5867-00
Required: 1
. BRACKET, MASTER CYLINDER
Price unavailable
-50%
8
Yamaha Motors
Bolt (4MY)91317-06025-00
Required: 2
. BOLT, HEXAGON SOCKET HEAD
Supersedes: 91312-06025-00
In stock
Only 1 remaining
$1.33
You save $1.33
9
Yamaha Motors
HOSE, BRAKE 15EU-F5872-00
Required: 1
HOSE, BRAKE 1
Price unavailable
-15%
No longer availableSearch Nationwide Inventory
$5.52
You save $0.97
-15%
11
Yamaha Motors
Plain Washer90201-10X03-00
Required: 4
WASHER, PLATE
$2.29
You save $0.41
12
Yamaha Motors
. SCREW, LEVER FITTING5BK-H3925-00
Required: 1
. SCREW, LEVER FITTING
Price unavailable
13
Yamaha Motors
. NUT, LEVER FITTING5BK-H3916-00
Required: 1
. NUT, LEVER FITTING
Price unavailable
14
Yamaha Motors
. PIN, PAD4TD-F5924-00
Required: 1
. PIN, PAD
Price unavailable
15
Yamaha Motors
. CLIP4TD-F5925-00
Required: 1
. CLIP
Price unavailable
-15%
16
Yamaha Motors
STOP SWITCH ASSEMBLY5XL-H3980-00-00
Required: 1
FRONT STOP SWITCH ASSY
Supersedes: 5AD-H3980-01-00
$32.29
You save $5.70
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
