1998 Scooter T105E - T105E (4YS1) [010] STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

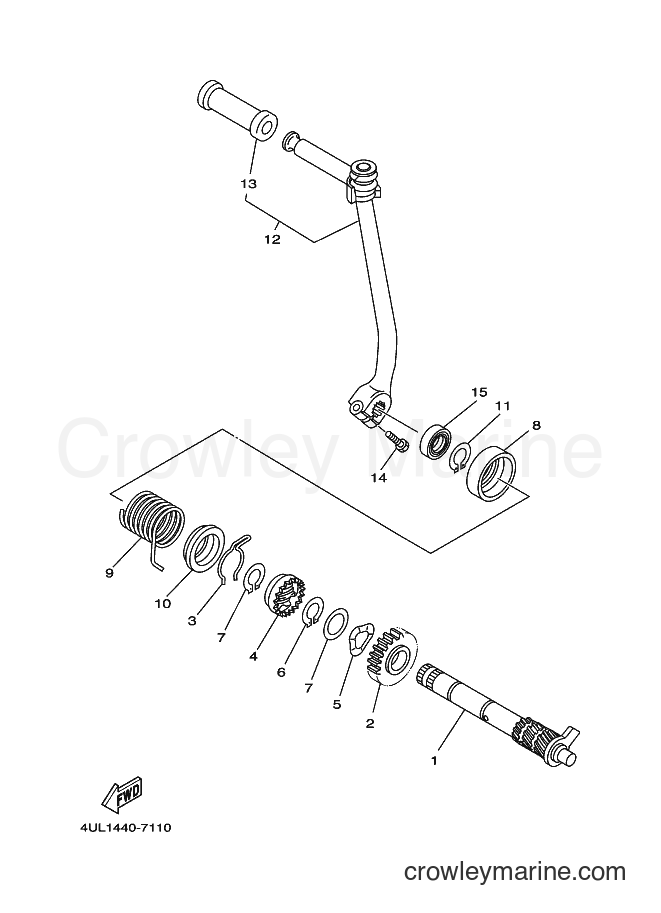

Yamaha Motors T105E (4YS1) [010] - STARTER
Change View:
KICK AXLE ASSY
1
Yamaha Motors
KICK AXLE ASSY4YS-E5660-00
Required: 1
KICK AXLE ASSY
Price unavailable
GEAR, KICK
2
Yamaha Motors
GEAR, KICK4YS-E5641-00
Required: 1
GEAR, KICK
Price unavailable
-15%
Clip
3
Yamaha Motors
Clip90468-23194-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
WHEEL, RATCHET
4
Yamaha Motors
WHEEL, RATCHET4NR-E5671-00
Required: 1
WHEEL, RATCHET
Price unavailable
-15%
Wave Washer
5
Yamaha Motors
Wave Washer90206-19027-00
Required: 1
WASHER, WAVE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
SHIM
6
Yamaha Motors
SHIM3NA-E5644-00
Required: 1
SHIM
Price unavailable
-15%
S -type Circlip
7
Yamaha Motors
S -type Circlip99009-19400-00
Required: 2
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
COVER, SPRING
8
Yamaha Motors
COVER, SPRING4YS-E5676-00
Required: 1
COVER, SPRING
Price unavailable
-15%
Torsion Spring
9
Yamaha Motors
Torsion Spring90508-263A8-00
Required: 1
SPRING, TORSION
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
GUIDE, SPRING
10
Yamaha Motors
GUIDE, SPRING4YS-E5664-00
Required: 1
GUIDE, SPRING
Price unavailable
-15%
Circle Clip
11
Yamaha Motors
Circle Clip99009-15400-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
KICK CRANK ASSY
12
Yamaha Motors
KICK CRANK ASSY4YS-E5620-00
Required: 1
KICK CRANK ASSY
Price unavailable
COVER, KICK LEVER
13
Yamaha Motors
COVER, KICK LEVER4YS-E5618-00
Required: 1
COVER, KICK LEVER
Price unavailable
OIL SEAL
15
Yamaha Motors
OIL SEAL93102-15882
Required: 1
OIL SEAL
Price unavailable
