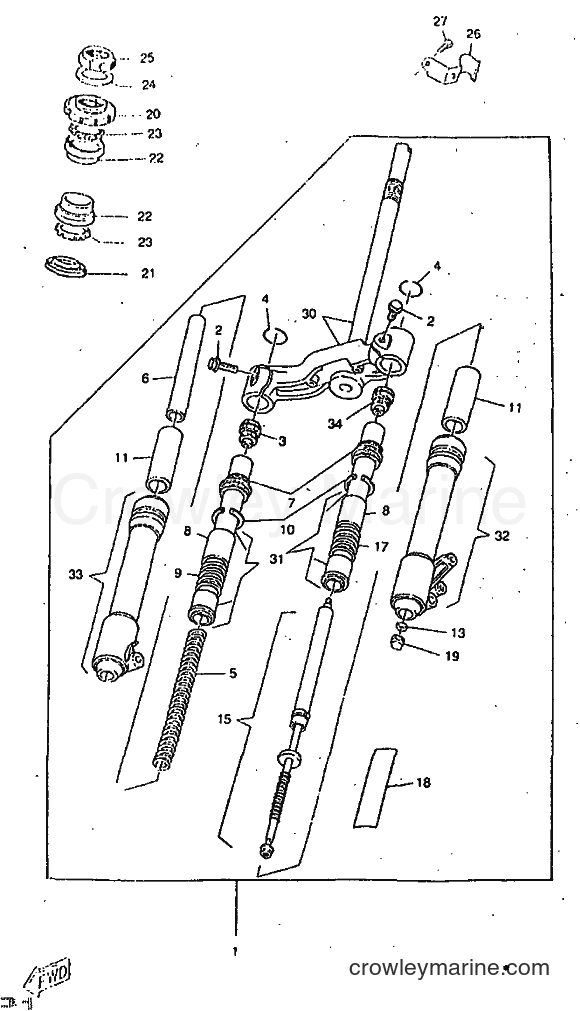

Yamaha Motors CW50RSX (4YD2) [999] - FRONT FORK
Change View:
FRONT FORK ASSY
1
Yamaha Motors
FRONT FORK ASSY4YB-F3100-01
Required: 1
FRONT FORK ASSY
Price unavailable
. SCREW, SPECIAL
2
Yamaha Motors
. SCREW, SPECIAL4SB-F3396-00
Required: 12
. SCREW, SPECIAL
Price unavailable
. BOLT, CAP
3
Yamaha Motors
. BOLT, CAP4SB-F3111-00
Required: 1
. BOLT, CAP
Price unavailable
. RING, SNAP
4
Yamaha Motors
. RING, SNAP4SB-F3153-00
Required: 2
. RING, SNAP
Price unavailable
. SPRING, FRONT FORK
5
Yamaha Motors
. SPRING, FRONT FORK4YB-F3141-00
Required: 1
. SPRING, FRONT FORK
Price unavailable
. TUBE, INNER
6
Yamaha Motors
. TUBE, INNER4YB-F332L-00
Required: 1
. TUBE, INNER
Price unavailable
. SEAL, DUST
7
Yamaha Motors
. SEAL, DUST4SB-F3144-00
Required: 2
. SEAL, DUST
Price unavailable
. GUIDE PLUNGER
8
Yamaha Motors
. GUIDE PLUNGER4SB-F319Y-00
Required: 2
. GUIDE PLUNGER
Price unavailable
. SPRING, REBOUND
9
Yamaha Motors
. SPRING, REBOUND4SB-F3151-00
Required: 2
. SPRING, REBOUND
Price unavailable
. CIRCLIP
10
Yamaha Motors
. CIRCLIP4SB-F3183-00
Required: 2
. CIRCLIP
Price unavailable
. STOPPER BOUND
11
Yamaha Motors
. STOPPER BOUND4SB-F3354-00
Required: 2
. STOPPER BOUND
Price unavailable
. WASHER, SPECIAL 1
13
Yamaha Motors
. WASHER, SPECIAL 14SB-F3385-00
Required: 1
. WASHER, SPECIAL 1
Price unavailable
. DAMPER ASSY
15
Yamaha Motors
. DAMPER ASSY4YB-F330E-00
Required: 1
. DAMPER ASSY
Price unavailable
. SPRING
17
Yamaha Motors
. SPRING4SB-F3428-00
Required: 1
. SPRING
Price unavailable
. EMBLEM
18
Yamaha Motors
. EMBLEM4YB-F3108-00
Required: 2
. EMBLEM
Price unavailable
. NUT
19
Yamaha Motors
. NUT4SB-F3357-00
Required: 1
. NUT
Price unavailable
RACE, BALL 1
20
Yamaha Motors
RACE, BALL 14SB-F3411-01
Required: 1
RACE, BALL 1
Price unavailable
RACE, BALL 4
21
Yamaha Motors
RACE, BALL 44SB-F3414-00
Required: 1
RACE, BALL 4
Price unavailable
RACE, BALL 2
22
Yamaha Motors
RACE, BALL 24SB-F3412-00
Required: 2
RACE, BALL 2
Price unavailable
BEARING, STEERING
23
Yamaha Motors
BEARING, STEERING4SB-F3812-00
Required: 2
BEARING, STEERING
Price unavailable
WASHER
24
Yamaha Motors
WASHER4SB-F3427-01
Required: 1
WASHER
Price unavailable
NUT, FITTING 1
25
Yamaha Motors
NUT, FITTING 14SB-F3453-01
Required: 1
NUT, FITTING 1
Price unavailable
HOLDER, BRAKE HOSE 2
26
Yamaha Motors
HOLDER, BRAKE HOSE 24SB-F5876-00
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
. UNDER BRACKET COMP.
30
Yamaha Motors
. UNDER BRACKET COMP.4YB-F3340-01
Required: 1
. UNDER BRACKET COMP.
Price unavailable
. TUBE, INNER 1
31
Yamaha Motors
. TUBE, INNER 14YB-F3124-00
Required: 2
. TUBE, INNER 1
Price unavailable
. TUBE, OUTER (L.H)
32
Yamaha Motors
. TUBE, OUTER (L.H)4YB-F3126-00
Required: 1
. TUBE, OUTER (L.H)
Price unavailable
. TUBE, OUTER 2
33
Yamaha Motors
. TUBE, OUTER 24YB-F3136-00
Required: 1
. TUBE, OUTER 2
Price unavailable
. BOLT, CAP
34
Yamaha Motors
. BOLT, CAP4YB-F3111-00
Required: 1
. BOLT, CAP
Price unavailable
