All diagrams for this model

1998 Scooter CW50 - CW50 (4VVH) [010] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

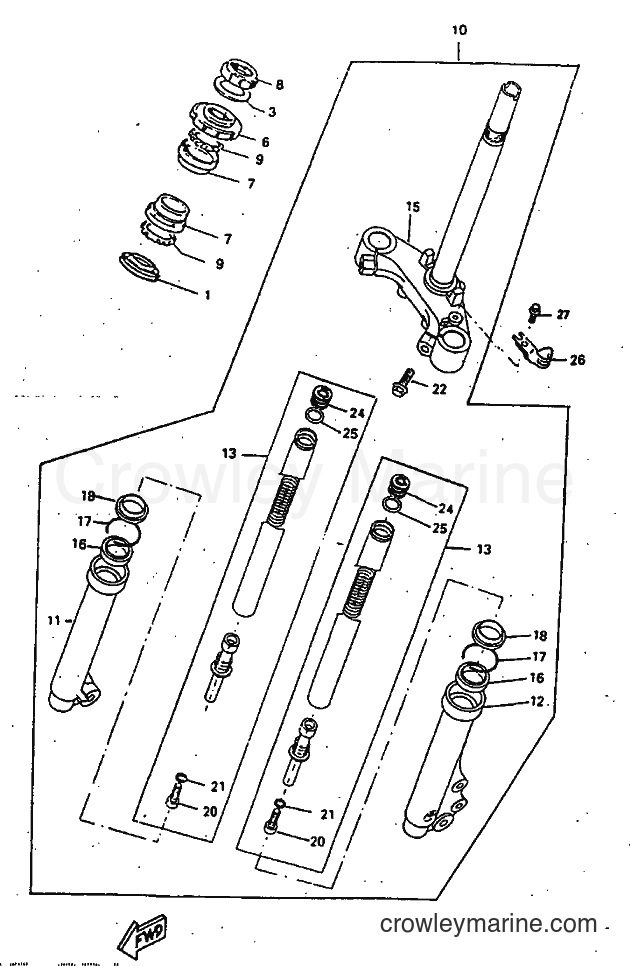

Yamaha Motors CW50 (4VVH) [010] - FRONT FORK
Change View:
RACE, BALL 4
1
Yamaha Motors
RACE, BALL 44SB-F3414-00
Required: 1
RACE, BALL 4
Price unavailable
WASHER
3
Yamaha Motors
WASHER4SB-F3427-01
Required: 1
WASHER
Price unavailable
RACE, BALL 1
6
Yamaha Motors
RACE, BALL 14SB-F3411-01
Required: 1
RACE, BALL 1
Price unavailable
RACE, BALL 2
7
Yamaha Motors
RACE, BALL 24SB-F3412-00
Required: 2
RACE, BALL 2
Price unavailable
NUT, FITTING 1
8
Yamaha Motors
NUT, FITTING 14SB-F3453-01
Required: 1
NUT, FITTING 1
Price unavailable
PLANE BEARING, STEERING
9
Yamaha Motors
PLANE BEARING, STEERING4SB-F3812-00
Required: 2
PLANE BEARING, STEERING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
