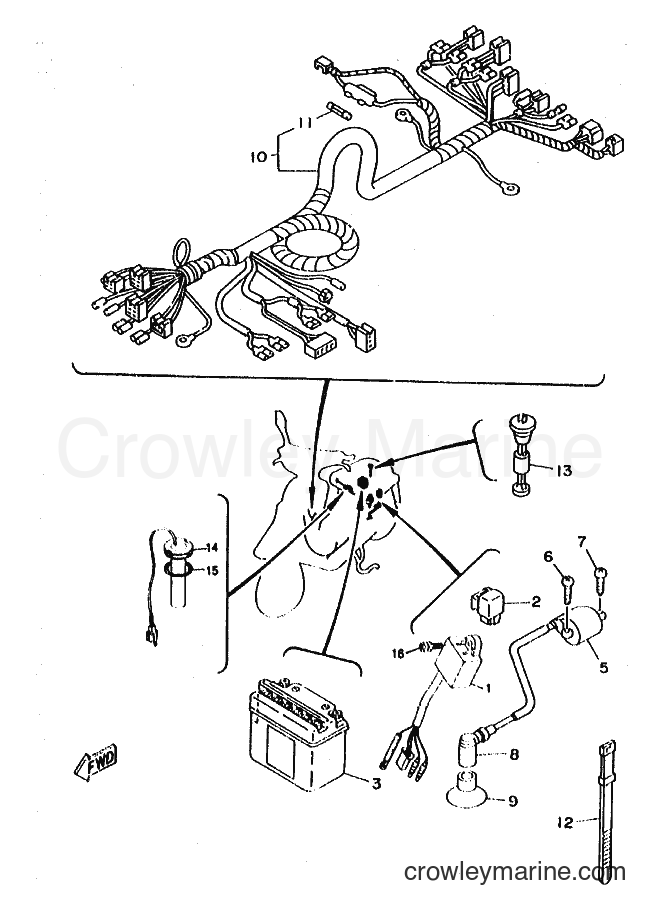

1997 Scooter CW50RS - CW50RS (4VB4) [999] ELECTRICAL 2 diagram
![Yamaha Motors CW50RS (4VB4) [999] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/W7cq6tp0.png)
-15%
1
Yamaha Motors
CDI UNIT ASSEMBLY3KJ-85540-10-00
Required: 1
C.D.I. UNIT ASSY
No longer availableSearch Nationwide Inventory
$100.29
You save $17.70
-15%
$72.24
You save $12.75
-15%
3
Yamaha Motors
YB4LB YUASA BATTERYYB4-LB000-00-00
Required: 1
BATTERY ASSY
Supersedes: 4SB-H2110-00-00
No longer availableSearch Nationwide Inventory
$25.49
You save $4.50
-15%
3
Yamaha Motors
BATTERY ASSY9079R-24278-00
Required: 1
BATTERY ASSY
Supersedes: 4CU-H2110-00-00
$21.24
You save $3.75
-15%
5
Yamaha Motors
IGNITION COIL ASSY3KJ-82310-14-00
Required: 1
IGNITION COIL ASSY
Supersedes: 3KJ-82310-01-00
$35.69
You save $6.30
-15%
$8.07
You save $1.42
-15%
7
Yamaha Motors
Hexagon Screw90153-06034-00
Required: 1
SCREW, HEXAGON
$7.22
You save $1.27
-15%
8
Yamaha Motors
Plug Cap AssemblySPC-LB05F-00-00
Required: 1
PLUG CAP ASSY
Supersedes: 3WG-H2370-10-00
$24.64
You save $4.35
-15%
9
Yamaha Motors
Plug Cap Seal3WG-H2372-00-00
Required: 1
SEAL, PLUG CAP
$7.22
You save $1.27
10
Yamaha Motors
WIRE HARNESS ASSY4SB-H2590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
-15%
$3.02
You save $0.53
-15%
12
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 2
BAND, SWITCH CORD
Supersedes: 4KH-H3936-00-00
$4.67
You save $0.82
13
Yamaha Motors
OIL LEVEL GAUGE ASSY4SB-H5720-00
Required: 1
OIL LEVEL GAUGE ASSY
Price unavailable
14
Yamaha Motors
SENDER UNIT ASSY, FUEL METER4SB-H5752-00
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
15
Yamaha Motors
GASKET, SENDER UNIT4SB-H5753-03
Required: 1
GASKET, SENDER UNIT
Price unavailable
16
Yamaha Motors
BOLT 24UP-F1532-00
Required: 1
BOLT 2
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
