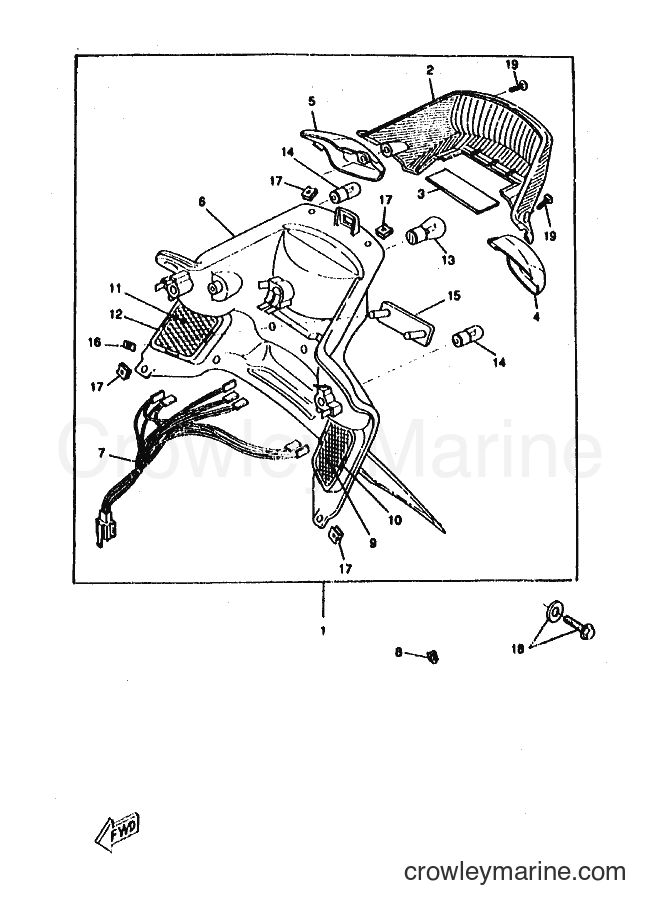

1997 Scooter CW50RS - CW50RS (4VB4) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50RS (4VB4) [010] - TAILLIGHT
Change View:
TAILLIGHT ASSY
1
Yamaha Motors
TAILLIGHT ASSY4SB-H4700-00
Required: 1
TAILLIGHT ASSY
Price unavailable
.LENS, TAILLIGHT
2
Yamaha Motors
.LENS, TAILLIGHT4SB-H4721-00
Required: 1
.LENS, TAILLIGHT
Price unavailable
.LENS, LICENCE LIGHT
3
Yamaha Motors
.LENS, LICENCE LIGHT4SB-H4743-00
Required: 1
.LENS, LICENCE LIGHT
Price unavailable
.LENS, FLASHER 1
4
Yamaha Motors
.LENS, FLASHER 14SB-H3332-00
Required: 1
.LENS, FLASHER 1
Price unavailable
.LENS, FLASHER 2
5
Yamaha Motors
.LENS, FLASHER 24SB-H3342-00
Required: 1
.LENS, FLASHER 2
Price unavailable
.BASE, TAILLIGHT
6
Yamaha Motors
.BASE, TAILLIGHT4SB-H4711-00
Required: 1
.BASE, TAILLIGHT
Price unavailable
.CORD, TAILLIGHT
7
Yamaha Motors
.CORD, TAILLIGHT4SB-H4717-00
Required: 1
.CORD, TAILLIGHT
Price unavailable
.CLIP
8
Yamaha Motors
.CLIP4SB-H4374-00
Required: 2
.CLIP
Price unavailable
.PLATE, ARMATURE 1
9
Yamaha Motors
.PLATE, ARMATURE 14SB-H336E-00
Required: 1
.PLATE, ARMATURE 1
Price unavailable
.HOLDER, 1
10
Yamaha Motors
.HOLDER, 14SB-H336T-00
Required: 1
.HOLDER, 1
Price unavailable
.PLATE, ARMATURE 2
11
Yamaha Motors
.PLATE, ARMATURE 24SB-H336F-00
Required: 1
.PLATE, ARMATURE 2
Price unavailable
.HOLDER, 2
12
Yamaha Motors
.HOLDER, 24SB-H336U-00
Required: 1
.HOLDER, 2
Price unavailable
.BULB
13
Yamaha Motors
.BULB3HL-H4535-00
Required: 1
.BULB
Price unavailable
-15%
BULB, TS 12V10W
14
Yamaha Motors
BULB, TS 12V10W3NS-83331-00-00
Required: 1
.BULB
Supersedes: NDH-H3311-00-01
Cross Ship
Leaves in 2-5 days
$12.99
$11.04
You save $1.95
More details
.REAR REFLECTOR ASSY
15
Yamaha Motors
.REAR REFLECTOR ASSY4SB-H5130-00
Required: 1
.REAR REFLECTOR ASSY
Price unavailable
.CLIP
16
Yamaha Motors
.CLIP90468-04814
Required: 2
.CLIP
Price unavailable
BOLT, WITH WASHER
18
Yamaha Motors
BOLT, WITH WASHER90119-08213
Required: 2
BOLT, WITH WASHER
Price unavailable
.SCREW, LENS FITTING
19
Yamaha Motors
.SCREW, LENS FITTING4SB-H4724-00
Required: 2
.SCREW, LENS FITTING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
