1997 Scooter CW50RS - CW50RS (4VB4) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

9

to see part

9

Ships Now

9

Ships Later

9

Out of Stock

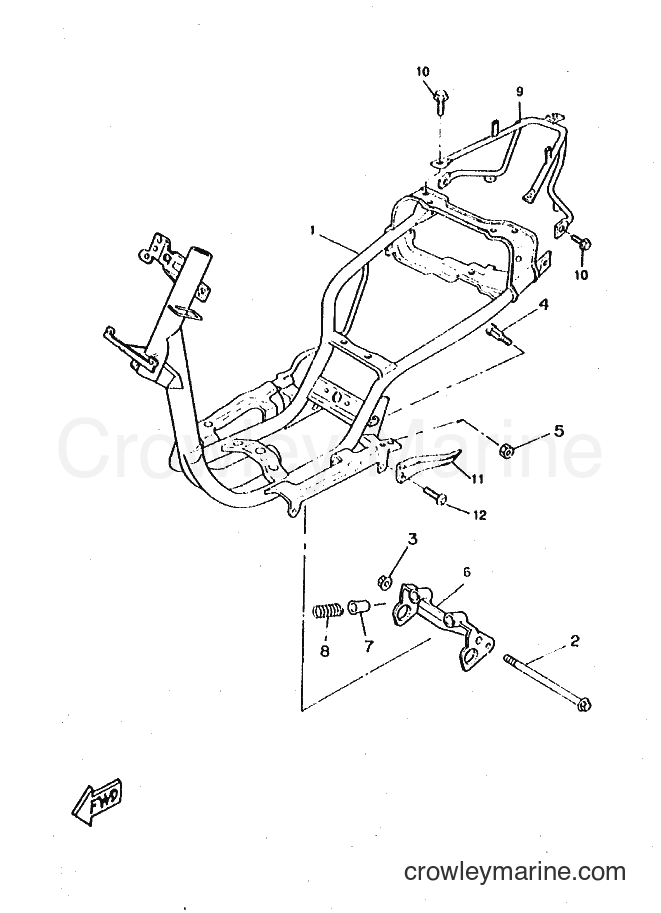

Yamaha Motors CW50RS (4VB4) [010] - FRAME

Change View:

FRAME COMP.

1

Yamaha Motors

FRAME COMP.4YB-F1110-10

Required: 1

FRAME COMP.

Price unavailable

-15%

Washer Based Bolt

Washer Based Bolt90105-10063-00

BOLT, WASHER BASED

~~$12.49~~

$10.62

You save $1.87

-15%

Nut

Nut90179-10279-00

NUT, POP

~~$9.49~~

$8.07

You save $1.42

-12%

Engine Mounting Bolt

Engine Mounting Bolt2T4-21481-01-00

BOLT, ENGINE MOUNTIN

~~$3.60~~

$3.15

You save $0.45

-15%

NUT

NUT95617-10100-00

BOLT, STUD

~~$9.49~~

$8.07

You save $1.42

-15%

Engine Bracket Com

Engine Bracket Com3VL-F1410-11-00

ENGINE BRACKET COMP.

No longer availableSearch Nationwide Inventory

~~$105.99~~

$90.09

You save $15.90

-15%

DAMPER 2

DAMPER 22T4-2139X-00-00

DAMPER

No longer availableSearch Nationwide Inventory

~~$10.99~~

$9.34

You save $1.65

-15%

Compression Spring

Compression Spring90501-290K2-00

SPRING, COMPRESSION

Supersedes: 90501-29517-00

No longer availableSearch Nationwide Inventory

~~$2.30~~

$1.96

You save $0.35

REINFORCEMENT, TAIL

9

Yamaha Motors

REINFORCEMENT, TAIL4VA-F1232-00

Required: 1

REINFORCEMENT, TAIL

Price unavailable

-15%

Flange Bolt

Flange Bolt95817-08016-00

BOLT, FLANGE

~~$5.49~~

$4.67

You save $0.82

BRACKET, FOOTREST 1

11

Yamaha Motors

BRACKET, FOOTREST 14SB-F7452-00

Required: 1

BRACKET, FOOTREST 1

Price unavailable

RIVET, BLIND

12

Yamaha Motors

RIVET, BLIND90267-32801

Required: 2

RIVET, BLIND

Price unavailable

-15%

Button Bolt92017-08016-00

SCREW

~~$6.49~~

$5.52

You save $0.97

MANUFACTURER PLATE

12

Yamaha Motors

MANUFACTURER PLATE4VB-F1182-00

Required: 1

MANUFACTURER PLATE

Price unavailable
