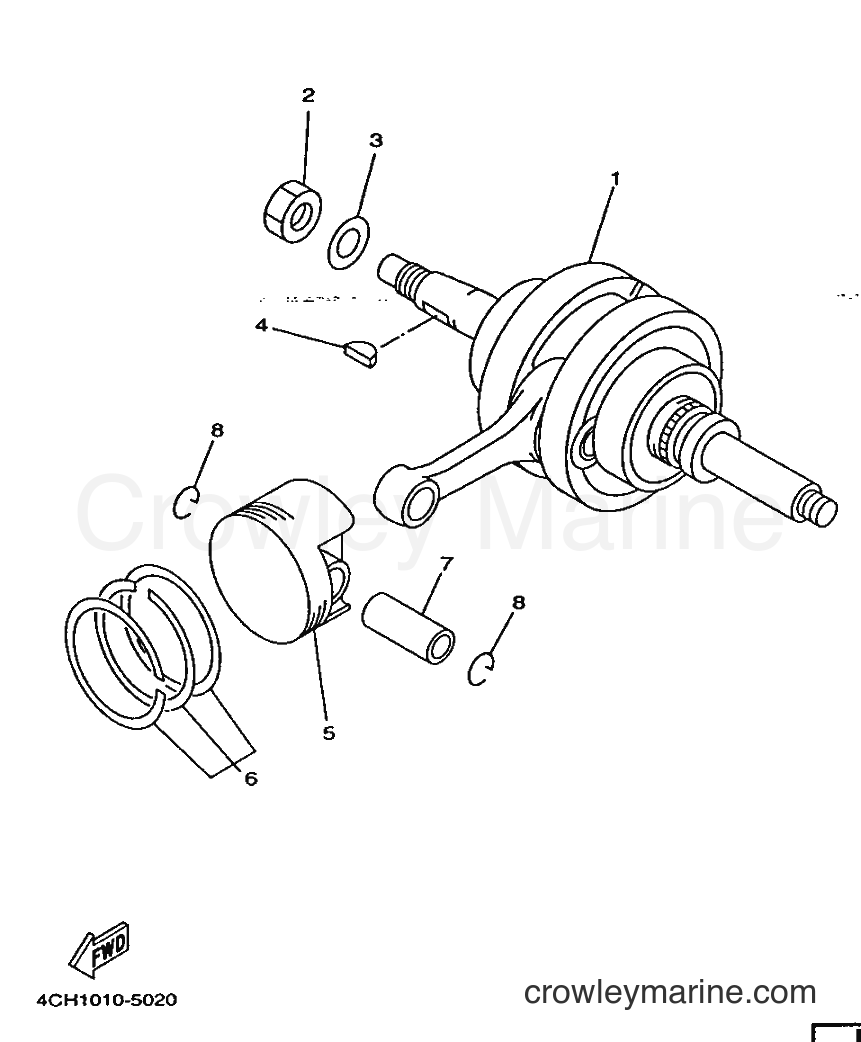

1996 Scooter YP250 - YP250 (4UC1) [030] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP250 (4UC1) [030] - CRANKSHAFT & PISTON
Change View:
CRANKSHAFT ASSY
1
Yamaha Motors
CRANKSHAFT ASSY4HC-11400-00
Required: 1
CRANKSHAFT ASSY
Price unavailable
-15%
Nut
2
Yamaha Motors
Nut90170-16425-00
Required: 1
NUT
Supersedes: 90170-16182-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
-15%
Plate Washer
3
Yamaha Motors
Plate Washer90201-160F6-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
PISTON (1.00MM O/S)
5
Yamaha Motors
PISTON (1.00MM O/S)4HC-11638-00
Required: 1
PISTON (1.00MM O/S)
Price unavailable
PISTON (STD)
5
Yamaha Motors
PISTON (STD)4HC-11631-00-97
Required: 1
PISTON (STD)
Price unavailable
PISTON (0.50MM O/S)
5
Yamaha Motors
PISTON (0.50MM O/S)4HC-11636-00
Required: 1
PISTON (0.50MM O/S)
Price unavailable
PISTON RING SET (0.50MM O/S)
6
Yamaha Motors
PISTON RING SET (0.50MM O/S)4HC-11605-00
Required: 1
PISTON RING SET (0.50MM O/S)
Price unavailable
PISTON RING SET (1.00MM O/S)
6
Yamaha Motors
PISTON RING SET (1.00MM O/S)4HC-11607-00
Required: 1
PISTON RING SET (1.00MM O/S)
Price unavailable
PISTON RING SET (STD)
6
Yamaha Motors
PISTON RING SET (STD)4HC-11603-00
Required: 1
PISTON RING SET (STD)
Price unavailable
-15%
Piston Pin
7
Yamaha Motors
Piston Pin4JH-11633-00-00
Required: 1
PIN, PISTON
Cross Ship
Leaves in 2-5 days
$42.99
$36.54
You save $6.45
More details
-15%
Clip
8
Yamaha Motors
Clip90468-12069-00
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
