All diagrams for this model

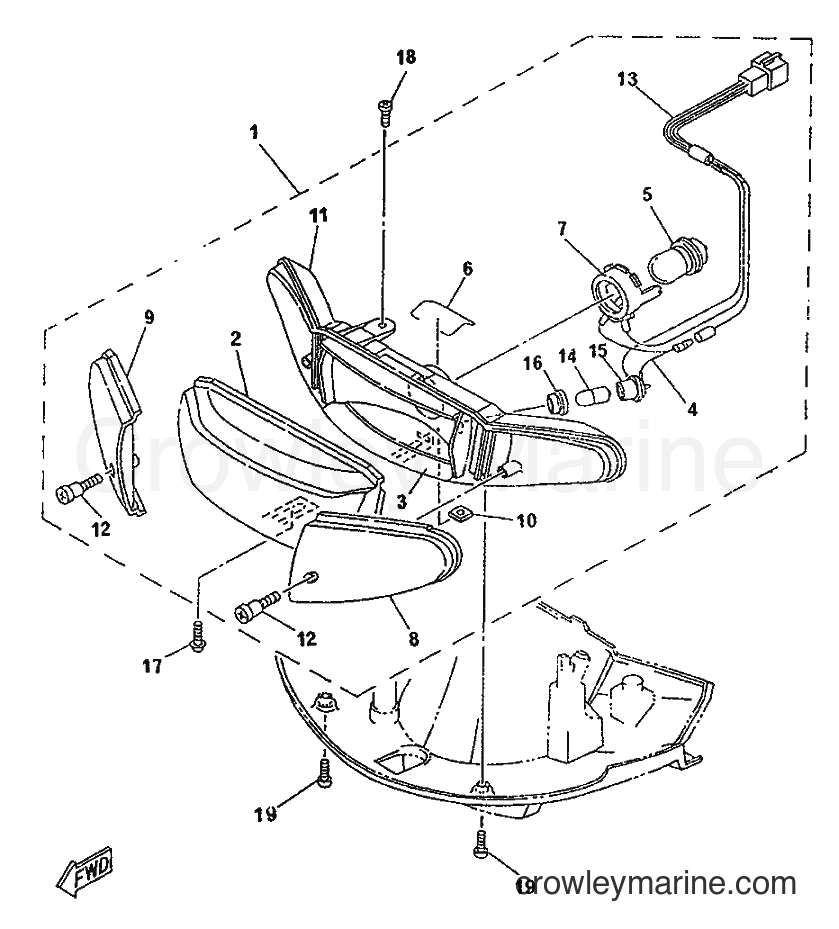

1996 Scooter YA50R - YA50R (4PC6) [999] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YA50R (4PC6) [999] - HEADLIGHT
Change View:
HEADLIGHT ASSY
1
Yamaha Motors
HEADLIGHT ASSY4PC-H4300-10
Required: 1
HEADLIGHT ASSY
Price unavailable
. LENS ASSY
2
Yamaha Motors
. LENS ASSY4PC-H4321-00
Required: 1
. LENS ASSY
Price unavailable
. REFLECTOR
3
Yamaha Motors
. REFLECTOR4PC-H4323-00
Required: 1
. REFLECTOR
Price unavailable
. HOLDER, SOCKET
4
Yamaha Motors
. HOLDER, SOCKET4PC-H4312-00
Required: 1
. HOLDER, SOCKET
Price unavailable
. BULB, HEADLIGHT
5
Yamaha Motors
. BULB, HEADLIGHT4PC-H4314-00
Required: 1
. BULB, HEADLIGHT
Price unavailable
. SPRING, REFLECTOR
6
Yamaha Motors
. SPRING, REFLECTOR3WG-H4324-00
Required: 1
. SPRING, REFLECTOR
Price unavailable
. SOCKET
7
Yamaha Motors
. SOCKET4PC-H3412-00
Required: 1
. SOCKET
Price unavailable
. LENS, FLASHER
8
Yamaha Motors
. LENS, FLASHER4MJ-H3312-10
Required: 1
. LENS, FLASHER
Price unavailable
. LENS, FLASHER 2
9
Yamaha Motors
. LENS, FLASHER 24MJ-H3322-10
Required: 1
. LENS, FLASHER 2
Price unavailable
. NUT
10
Yamaha Motors
. NUT4MJ-H4317-00
Required: 1
. NUT
Price unavailable
. BODY, HEADLIGHT
11
Yamaha Motors
. BODY, HEADLIGHT4PC-H4311-00
Required: 1
. BODY, HEADLIGHT
Price unavailable
. BOLT, SPECIAL
12
Yamaha Motors
. BOLT, SPECIAL4MJ-H4337-10
Required: 2
. BOLT, SPECIAL
Price unavailable
. CORD, HEADLIGHT
13
Yamaha Motors
. CORD, HEADLIGHT4PC-H4359-10
Required: 1
. CORD, HEADLIGHT
Price unavailable
. BULB
14
Yamaha Motors
. BULB4CX-H4347-00
Required: 1
. BULB
Price unavailable
. SOCKET, PILOT LIGHT
15
Yamaha Motors
. SOCKET, PILOT LIGHT4CX-H4346-00
Required: 1
. SOCKET, PILOT LIGHT
Price unavailable
. GROMMET
16
Yamaha Motors
. GROMMET4CX-H4352-00
Required: 1
. GROMMET
Price unavailable
-15%
WCREW WITH WASHER
17
Yamaha Motors
WCREW WITH WASHER90159-05155-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
SCREW, TAPPING
19
Yamaha Motors
SCREW, TAPPING97702-50022
Required: 2
SCREW, TAPPING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
