1996 Scooter YA50R - YA50R (4PC5) [010] STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

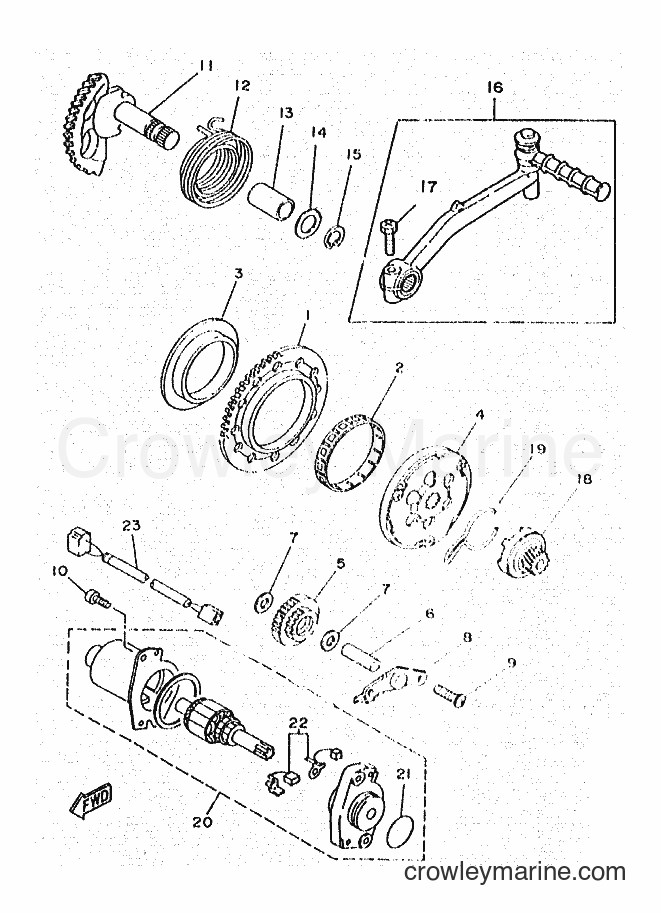

Yamaha Motors YA50R (4PC5) [010] - STARTER
Change View:
-15%
Gear
1
Yamaha Motors
Gear3AA-15513-00-00
Required: 1
GEAR 1
Cross Ship
Leaves in 2-5 days
$90.99
$77.34
You save $13.65
More details
-15%
BEARING
2
Yamaha Motors
BEARING93310-25712-00
Required: 1
BEARING, CYLINDRICAL
Supersedes: 93310-257R1-00
Cross Ship
Leaves in 2-5 days
$48.99
$41.64
You save $7.35
More details
-15%
Gear Boss
3
Yamaha Motors
Gear Boss3KJ-15528-00-00
Required: 1
BOSS, GEAR
Cross Ship
Leaves in 2-5 days
$17.99
$15.29
You save $2.70
More details
-15%
STARTER CLUTCH ASSEMBLY
4
Yamaha Motors
STARTER CLUTCH ASSEMBLY3VL-15570-00-00
Required: 1
STARTER CLUTCH ASSY
Cross Ship
Leaves in 2-5 days
$71.99
$61.19
You save $10.80
More details
-15%
Idle Gear Assembly
5
Yamaha Motors
Idle Gear Assembly3AA-15650-00-00
Required: 1
IDLE GEAR ASSY
Cross Ship
Leaves in 2-5 days
$56.99
$48.44
You save $8.55
More details
-15%
Plate Washer
7
Yamaha Motors
Plate Washer90201-08088-00
Required: 2
WASHER, PLATE
Cross Ship
Backordered
$1.20
$1.02
You save $0.18
More details
PLATE, IDLE GEAR
8
Yamaha Motors
PLATE, IDLE GEAR4CU-E5532-00
Required: 1
PLATE, IDLE GEAR
Price unavailable
-12%
Screw
9
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.60
You save $0.50
More details
Bolt
10
Yamaha Motors
Bolt91317-06020-00
Required: 2
BOLT
Supersedes: 91318-06020-00
Cross Ship
Leaves in 2-5 days
$4.23
More details
-15%
Torsion Spring
12
Yamaha Motors
Torsion Spring90508-32609-00
Required: 1
SPRING, TORSION
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
-15%
Plate Washer
14
Yamaha Motors
Plate Washer90201-154E9-00
Required: 1
WASHER, PLATE
Supersedes: 90201-155G5-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
-15%
Circle Clip
15
Yamaha Motors
Circle Clip99009-15400-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
KICK CRANK ASSY
16
Yamaha Motors
KICK CRANK ASSY4CU-X5620-00
Required: 1
KICK CRANK ASSY
Price unavailable
-15%
Bolt
17
Yamaha Motors
Bolt97017-06025-00
Required: 1
･BOLT
Supersedes: 97316-06025-00
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details
CLIP
19
Yamaha Motors
CLIP4CU-E5673-00
Required: 1
CLIP
Price unavailable
-15%
O-Ring
21
Yamaha Motors
O-Ring93210-23614-00
Required: 1
･O-RING
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
WIRE, LEAD
23
Yamaha Motors
WIRE, LEAD3WG-H2541-00
Required: 1
WIRE, LEAD
Price unavailable
