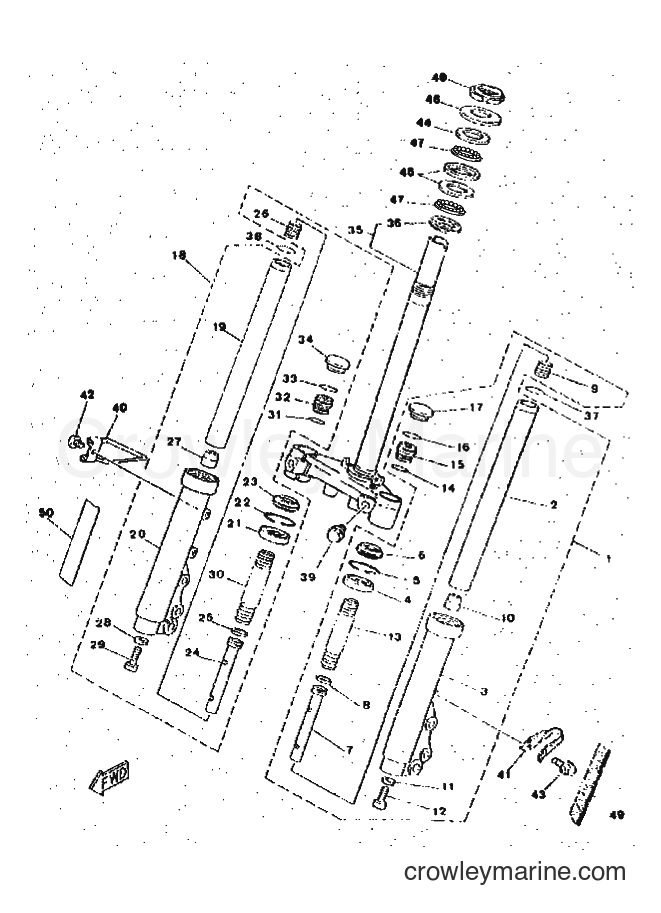

Yamaha Motors YA50R (4PC5) [010] - FRONT FORK
Change View:
FRONT FORK ASSY (L.H.)
1
Yamaha Motors
FRONT FORK ASSY (L.H.)4PC-F3102-10-33
Required: 1
FRONT FORK ASSY (L.H.)
Price unavailable
･INNER TUBE COMP. 1
2
Yamaha Motors
･INNER TUBE COMP. 14CU-F3110-00
Required: 1
･INNER TUBE COMP. 1
Price unavailable
･TUBE, OUTER 1
3
Yamaha Motors
･TUBE, OUTER 14PC-F3126-10
Required: 1
･TUBE, OUTER 1
Price unavailable
･OIL SEAL
4
Yamaha Motors
･OIL SEAL93102-26436
Required: 1
･OIL SEAL
Price unavailable
･CLIP, OIL SEAL
5
Yamaha Motors
･CLIP, OIL SEAL4PC-F3156-00
Required: 1
･CLIP, OIL SEAL
Price unavailable
･SEAL DUST
6
Yamaha Motors
･SEAL DUST3VP-23144-00
Required: 1
･SEAL DUST
Price unavailable
･PISTON, FRONT FORK
7
Yamaha Motors
･PISTON, FRONT FORK4PC-F3171-10
Required: 1
･PISTON, FRONT FORK
Price unavailable
･RING, PISTON
8
Yamaha Motors
･RING, PISTON4PC-F3157-00
Required: 1
･RING, PISTON
Price unavailable
･SPRING, REBOUND
9
Yamaha Motors
･SPRING, REBOUND4PC-F3151-00
Required: 1
･SPRING, REBOUND
Price unavailable
･SPINDLE, TAPER
10
Yamaha Motors
･SPINDLE, TAPER4PC-F3173-00
Required: 1
･SPINDLE, TAPER
Price unavailable
･WASHER, PLATE
11
Yamaha Motors
･WASHER, PLATE90201-088F2
Required: 1
･WASHER, PLATE
Price unavailable
-15%
Socket Bolt
12
Yamaha Motors
Socket Bolt91314-08025-00
Required: 1
･BOLT
Supersedes: 91311-08025-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
･SPRING, FRONT FORK
13
Yamaha Motors
･SPRING, FRONT FORK4PC-F3141-00
Required: 1
･SPRING, FRONT FORK
Price unavailable
･O-RING
14
Yamaha Motors
･O-RING93210-168C9
Required: 1
･O-RING
Price unavailable
･BOLT, CAP
15
Yamaha Motors
･BOLT, CAP4PC-F3111-00
Required: 1
･BOLT, CAP
Price unavailable
･CIRCLIP
16
Yamaha Motors
･CIRCLIP4PC-F3183-00
Required: 1
･CIRCLIP
Price unavailable
･PLUG, INNER TUBE
17
Yamaha Motors
･PLUG, INNER TUBE4PC-F3154-00
Required: 1
･PLUG, INNER TUBE
Price unavailable
FRONT FORK ASSY (R.H.)
18
Yamaha Motors
FRONT FORK ASSY (R.H.)4PC-F3103-10-33
Required: 1
FRONT FORK ASSY (R.H.)
Price unavailable
･INNER TUBE COMP. 1
19
Yamaha Motors
･INNER TUBE COMP. 14PC-F3110-00
Required: 1
･INNER TUBE COMP. 1
Price unavailable
･TUBE, OUTER 2
20
Yamaha Motors
･TUBE, OUTER 24PC-F3136-10
Required: 1
･TUBE, OUTER 2
Price unavailable
･OIL SEAL
21
Yamaha Motors
･OIL SEAL93102-26436
Required: 1
･OIL SEAL
Price unavailable
･CLIP, OIL SEAL
22
Yamaha Motors
･CLIP, OIL SEAL4PC-F3156-00
Required: 1
･CLIP, OIL SEAL
Price unavailable
･SEAL, DUST
23
Yamaha Motors
･SEAL, DUST3VP-23144-00
Required: 1
･SEAL, DUST
Price unavailable
･PISTON, FRONT FORK
24
Yamaha Motors
･PISTON, FRONT FORK4PC-F3171-10
Required: 1
･PISTON, FRONT FORK
Price unavailable
･RING, PISTON
25
Yamaha Motors
･RING, PISTON4PC-F3157-00
Required: 1
･RING, PISTON
Price unavailable
･SPRING, REBOUND
26
Yamaha Motors
･SPRING, REBOUND4PC-F3151-00
Required: 1
･SPRING, REBOUND
Price unavailable
･SPINDLE, TAPER
27
Yamaha Motors
･SPINDLE, TAPER4PC-F3173-00
Required: 1
･SPINDLE, TAPER
Price unavailable
･WASHER, PLATE
28
Yamaha Motors
･WASHER, PLATE90201-088F2
Required: 1
･WASHER, PLATE
Price unavailable
-15%
Socket Bolt
29
Yamaha Motors
Socket Bolt91314-08025-00
Required: 1
･BOLT
Supersedes: 91311-08025-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
･SPRING, FRONT FORK
30
Yamaha Motors
･SPRING, FRONT FORK4PC-F3141-00
Required: 1
･SPRING, FRONT FORK
Price unavailable
･O-RING
31
Yamaha Motors
･O-RING93210-168C9
Required: 1
･O-RING
Price unavailable
･BOLT, CAP
32
Yamaha Motors
･BOLT, CAP4PC-F3111-00
Required: 1
･BOLT, CAP
Price unavailable
･CIRCLIP
33
Yamaha Motors
･CIRCLIP4PC-F3183-00
Required: 1
･CIRCLIP
Price unavailable
･PLUG, INNER TUBE
34
Yamaha Motors
･PLUG, INNER TUBE4PC-F3154-00
Required: 1
･PLUG, INNER TUBE
Price unavailable
UNDER BRACKET COMP.
35
Yamaha Motors
UNDER BRACKET COMP.4PC-F3340-10
Required: 1
UNDER BRACKET COMP.
Price unavailable
-15%
BALL RACE
36
Yamaha Motors
BALL RACEBP2-23414-00-00
Required: 1
･RACE, BALL 4
Supersedes: 22F-23414-01-00
Cross Ship
Leaves in 2-5 days
$19.49
$16.57
You save $2.92
More details
RING, SNAP
37
Yamaha Motors
RING, SNAP4PC-F3153-00
Required: 1
RING, SNAP
Price unavailable
RING, SNAP
38
Yamaha Motors
RING, SNAP4PC-F3153-00
Required: 1
RING, SNAP
Price unavailable
HOLDER, CABLE
40
Yamaha Motors
HOLDER, CABLE4MJ-F3317-00
Required: 1
HOLDER, CABLE
Price unavailable
HOLDER, BRAKE HOSE 1
41
Yamaha Motors
HOLDER, BRAKE HOSE 14PC-F5875-00
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
-15%
95811-06016-00
43
Yamaha Motors
95811-06016-0095801-06016-00
Required: 1
BOLT, BLANGE
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
-15%
BALL RACE
44
Yamaha Motors
BALL RACEBP2-23411-00-00
Required: 1
RACE, BALL 1
Supersedes: 22F-23411-01-00
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
COVER
46
Yamaha Motors
COVER3VP-23416-00
Required: 1
COVER
Price unavailable
-15%
RETAINER, BALL BEARING
47
Yamaha Motors
RETAINER, BALL BEARINGBP2-2341E-00-00
Required: 2
RETAINER, BALL BEARING
Supersedes: 22F-2341E-00-00
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
-15%
Nut
48
Yamaha Motors
Nut90179-25004-00
Required: 2
NUT
Supersedes: 90179-25033-00
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
EMBLEM
49
Yamaha Motors
EMBLEM4SJ-F3108-00
Required: 1
EMBLEM
Price unavailable
EMBLEM
50
Yamaha Motors
EMBLEM4SJ-F3108-00
Required: 1
EMBLEM
Price unavailable
