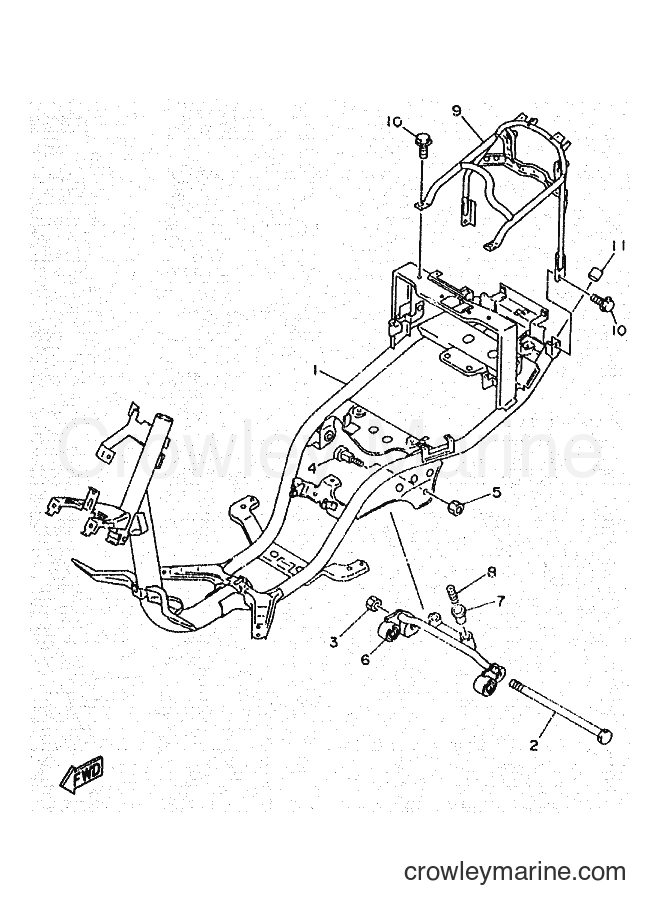

Yamaha Motors YA50R (4PC5) [010] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.4PC-F1110-10
Required: 1
FRAME COMP.
Price unavailable
-15%
FLANGE NUT
3
Yamaha Motors
FLANGE NUT95607-12200-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
NUT, SELF-LOCKING
5
Yamaha Motors
NUT, SELF-LOCKING90185-10822
Required: 2
NUT, SELF-LOCKING
Price unavailable
ENGINE BRACKET COMP.
6
Yamaha Motors
ENGINE BRACKET COMP.3WG-F1410-00
Required: 1
ENGINE BRACKET COMP.
Price unavailable
DAMPER
7
Yamaha Motors
DAMPER3WG-F139X-00
Required: 2
DAMPER
Price unavailable
REINFORCEMENT, TAIL
9
Yamaha Motors
REINFORCEMENT, TAIL4MJ-F1232-00
Required: 1
REINFORCEMENT, TAIL
Price unavailable
COVER 2
11
Yamaha Motors
COVER 24PC-F117M-00
Required: 2
COVER 2
Price unavailable
