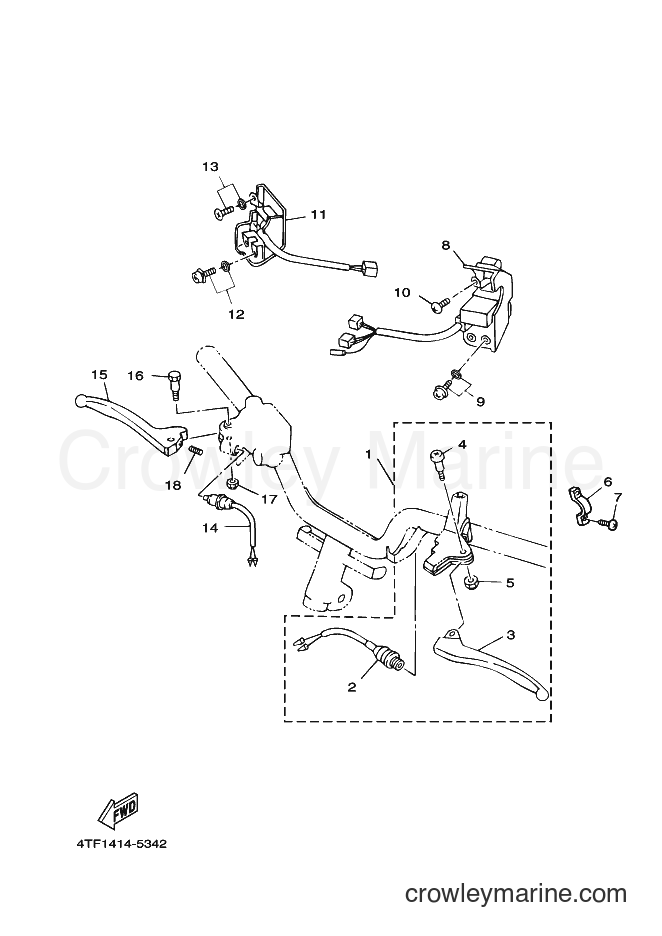

1996 Scooter XC125TR - XC125TR (4TH4) [999] HANDLE SWITCH & LEVER diagram
![Yamaha Motors XC125TR (4TH4) [999] - HANDLE SWITCH & LEVER](https://cdn.crowleymarine.com/yamaha/etS8gmHL.png)
1
Yamaha Motors
LEVER HOLDER ASSY (LEFT)4NB-H2910-00
Required: 1
LEVER HOLDER ASSY (LEFT)
Price unavailable
2
Yamaha Motors
. FRONT STOP SWITCH ASSY3UH-H3980-11
Required: 1
. FRONT STOP SWITCH ASSY
Price unavailable
3
Yamaha Motors
. LEVER 13UH-H3912-00
Required: 1
. LEVER 1
Price unavailable
-15%
$8.92
You save $1.57
-15%
5
Yamaha Motors
NUT95617-05100-00
Required: 1
. NUT, U
Supersedes: 95607-05100-00
$8.92
You save $1.57
-15%
6
Yamaha Motors
Master Cylinder Bracket3GF-F5867-00-00
Required: 1
BRACKET, MASTER CYLINDER
$2.98
You save $0.52
-15%
7
Yamaha Motors
Button Bolt92017-06025-00
Required: 2
BOLT, BUTTON HEAD
$8.92
You save $1.57
8
Yamaha Motors
SWITCH, HANDLE 34KC-H3973-00
Required: 1
SWITCH, HANDLE 3
Price unavailable
-50%
9
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 2
SCREW, PAN HEAD WITH WASHER
Supersedes: 97607-05210-00
In stock
Only 4 remaining
$2.30
You save $2.30
-15%
10
Yamaha Motors
Tapping Screw97707-50610-00
Required: 1
SCREW, TAPPING
Supersedes: 97707-50510-00
No longer availableSearch Nationwide Inventory
$1.02
You save $0.18
11
Yamaha Motors
SWITCH, HANDLE 24TF-H3975-00
Required: 1
SWITCH, HANDLE 2
Price unavailable
-50%
12
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 2
SCREW, PAN HEAD WITH WASHER
Supersedes: 97607-05210-00
In stock
Only 4 remaining
$2.30
You save $2.30
13
Yamaha Motors
SCREW, PAN HEAD WITH WASHER97607-05208
Required: 1
SCREW, PAN HEAD WITH WASHER
Price unavailable
14
Yamaha Motors
FRONT STOP SWITCH ASSY3UH-H3980-00
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
15
Yamaha Motors
LEVER 23GF-H3922-00
Required: 1
LEVER 2
Price unavailable
-15%
$19.54
You save $3.45
17
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
$3.60
-15%
18
Yamaha Motors
Compression Spring90501-10312-00
Required: 1
SPRING, COMPRESSION
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
