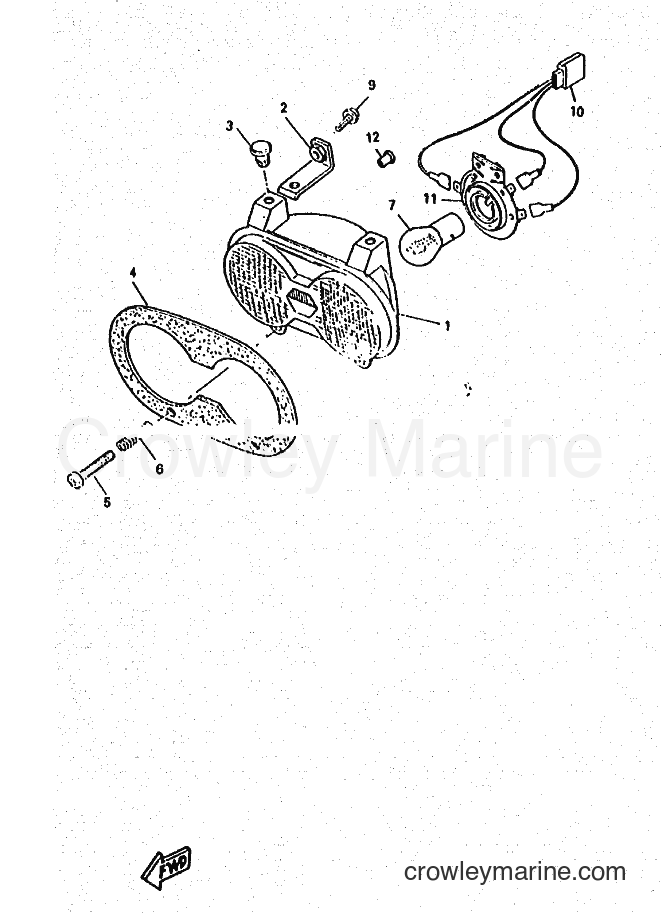

1995 Scooter YM50 - YM50 (4SY1) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YM50 (4SY1) [010] - HEADLIGHT
Change View:
HEADLIGHT UNIT ASSY
1
Yamaha Motors
HEADLIGHT UNIT ASSY4RC-H4310-01
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
STAY, HEADLIGHT 1
2
Yamaha Motors
STAY, HEADLIGHT 14KH-H4118-00
Required: 2
STAY, HEADLIGHT 1
Price unavailable
NUT, BODY FITTING
3
Yamaha Motors
NUT, BODY FITTING3VL-H4316-00
Required: 2
NUT, BODY FITTING
Price unavailable
COVER, HEADLIGHT
4
Yamaha Motors
COVER, HEADLIGHT3VL-H4144-00
Required: 1
COVER, HEADLIGHT
Price unavailable
SCREW, RIM ADJUSTING
5
Yamaha Motors
SCREW, RIM ADJUSTING4KH-H4331-10
Required: 1
SCREW, RIM ADJUSTING
Price unavailable
SPRING, SCREW
6
Yamaha Motors
SPRING, SCREW4KH-H4332-00
Required: 2
SPRING, SCREW
Price unavailable
BULB 12V-25/25W
7
Yamaha Motors
BULB 12V-25/25W3WV-H4314-00
Required: 1
BULB 12V-25/25W
Price unavailable
WIRE, SUB LEAD
10
Yamaha Motors
WIRE, SUB LEAD4RC-H2509-00
Required: 1
WIRE, SUB LEAD
Price unavailable
SOCKET
11
Yamaha Motors
SOCKET4RC-H4312-00
Required: 1
SOCKET
Price unavailable
GROMMET
12
Yamaha Motors
GROMMET3VL-H4352-00
Required: 1
GROMMET
Price unavailable
COVER
12
Yamaha Motors
COVER4RC-H4196-00
Required: 1
COVER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
