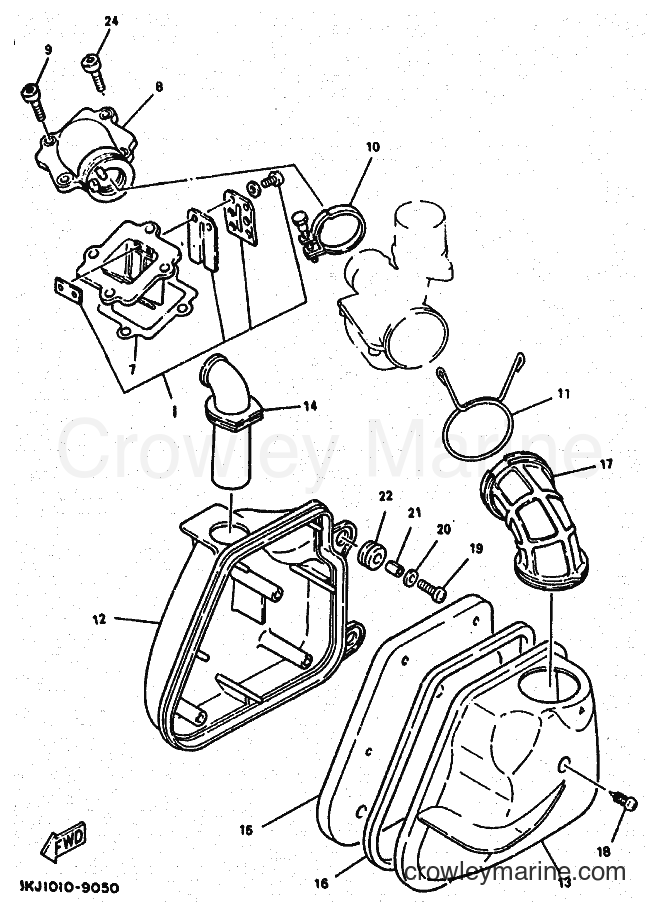

1995 Scooter YE50 - YE50 (4LN4) [999] INTAKE diagram
![Yamaha Motors YE50 (4LN4) [999] - INTAKE](https://cdn.crowleymarine.com/yamaha/xJyEqRKA.png)
1
Yamaha Motors
REED VALVE ASSY4CU-E3610-00
Required: 1
REED VALVE ASSY
Price unavailable
7
Yamaha Motors
GASKET, VALVE SEAT4CU-E3621-00
Required: 1
GASKET, VALVE SEAT
Price unavailable
8
Yamaha Motors
MANIFOLD, INTAKE4CU-E3555-00
Required: 1
MANIFOLD, INTAKE
Price unavailable
-15%
10
Yamaha Motors
Hose Clamp Assembly90450-32081-00
Required: 1
HOSE CLAMP ASSY
$17.84
You save $3.15
-15%
$5.52
You save $0.97
12
Yamaha Motors
CASE, AIR CLEANER 13WG-E4411-00
Required: 1
CASE, AIR CLEANER 1
Price unavailable
13
Yamaha Motors
CAP, CLEANER CASE 13WG-E4412-00
Required: 1
CAP, CLEANER CASE 1
Price unavailable
14
Yamaha Motors
DUCT3WG-E4437-00
Required: 1
DUCT
Price unavailable
15
Yamaha Motors
ELEMENT, AIR CLEANER3WG-E4451-00
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
16
Yamaha Motors
SEAL3WG-E4452-00
Required: 1
SEAL
Price unavailable
17
Yamaha Motors
JOINT, AIR CLEANER 13WG-E4453-00
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
-50%
18
Yamaha Motors
97780-50125-0097780-50525-00
Required: 3
SCREW, TAPPING
Supersedes: 97780-50125-00
In stock
Only 4 remaining
$0.80
You save $0.80
19
Yamaha Motors
Pan Head Screw98517-06020-00
Required: 2
SCREW, PAN HEAD
In stock
Only 5 remaining
$3.60
-15%
$0.85
You save $0.15
-15%
$2.80
You save $0.50
-20%
$2.64
You save $0.66
-15%
24
Yamaha Motors
Bolt (4FM)90109-06282-00
Required: 2
BOLT
Supersedes: 90109-060G4-00
$4.67
You save $0.82
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
