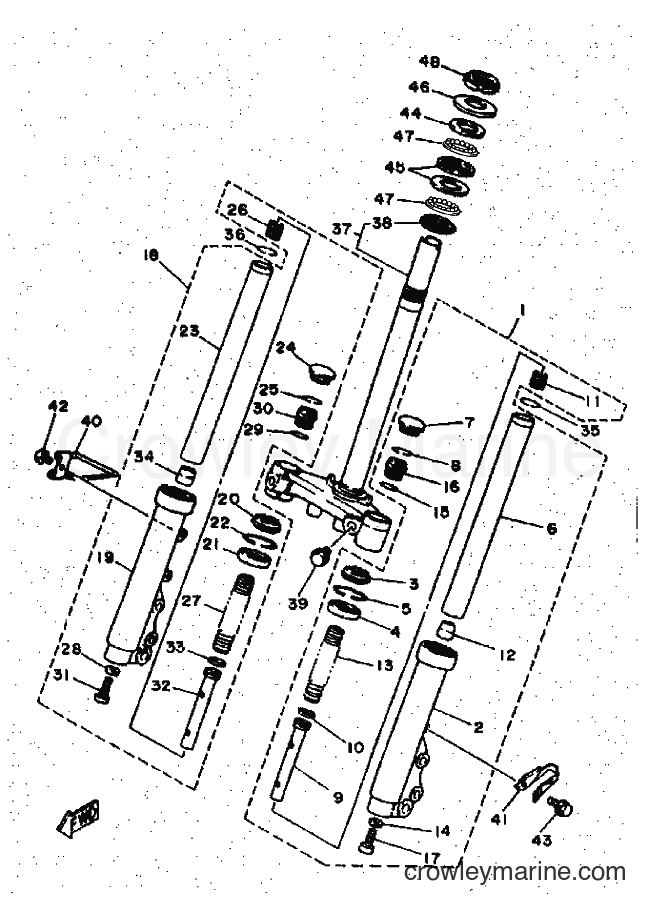

Yamaha Motors YA50R (4PC4) [999] - FRONT FORK
Change View:
FRONT FORK ASSY (L.H.)
1
Yamaha Motors
FRONT FORK ASSY (L.H.)4PC-F3102-P0
Required: 1
FRONT FORK ASSY (L.H.)
Price unavailable
･TUBE., OUTER (LEFT)
2
Yamaha Motors
･TUBE., OUTER (LEFT)4PC-F3126-P0
Required: 1
･TUBE., OUTER (LEFT)
Price unavailable
･SEAL, DUST
3
Yamaha Motors
･SEAL, DUST4CU-F3144-00
Required: 1
･SEAL, DUST
Price unavailable
･OIL SEAL
4
Yamaha Motors
･OIL SEAL4CU-F3145-00
Required: 1
･OIL SEAL
Price unavailable
･CLIP, OIL SEAL
5
Yamaha Motors
･CLIP, OIL SEAL4CU-F3156-00
Required: 1
･CLIP, OIL SEAL
Price unavailable
･INNER TUBE COMP. 1
6
Yamaha Motors
･INNER TUBE COMP. 14CU-F3110-00
Required: 1
･INNER TUBE COMP. 1
Price unavailable
･PLUG, INNER TUBE
7
Yamaha Motors
･PLUG, INNER TUBE4CU-F3154-00
Required: 1
･PLUG, INNER TUBE
Price unavailable
･CIRCLIP
8
Yamaha Motors
･CIRCLIP4CU-F3183-00
Required: 1
･CIRCLIP
Price unavailable
･PISTON, FRONT FORK
9
Yamaha Motors
･PISTON, FRONT FORK4PC-F3171-P0
Required: 1
･PISTON, FRONT FORK
Price unavailable
･RING, PISTON
10
Yamaha Motors
･RING, PISTON4CU-F3157-00
Required: 1
･RING, PISTON
Price unavailable
･SPRING, REBOUND
11
Yamaha Motors
･SPRING, REBOUND4CU-F3151-00
Required: 1
･SPRING, REBOUND
Price unavailable
･SPINDLE, TAPER
12
Yamaha Motors
･SPINDLE, TAPER4CU-F3173-00
Required: 1
･SPINDLE, TAPER
Price unavailable
･SPRING, FRONT FORK
13
Yamaha Motors
･SPRING, FRONT FORK4PC-F3141-P0
Required: 1
･SPRING, FRONT FORK
Price unavailable
･WASHER, FELT
14
Yamaha Motors
･WASHER, FELT4CU-F3165-00
Required: 1
･WASHER, FELT
Price unavailable
･O-RING
15
Yamaha Motors
･O-RING4CU-F3147-00
Required: 1
･O-RING
Price unavailable
･BOLT, CAP
16
Yamaha Motors
･BOLT, CAP4CU-F3111-00
Required: 1
･BOLT, CAP
Price unavailable
･BOLT, HEXAGON SOCKET HEAD
17
Yamaha Motors
･BOLT, HEXAGON SOCKET HEAD4CU-F3181-00
Required: 1
･BOLT, HEXAGON SOCKET HEAD
Price unavailable
FRONT FORK ASSY (R.H)
18
Yamaha Motors
FRONT FORK ASSY (R.H)4PC-F3103-P0
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
･TUBE, OUTER (RIGHT)
19
Yamaha Motors
･TUBE, OUTER (RIGHT)4PC-F3136-P0
Required: 1
･TUBE, OUTER (RIGHT)
Price unavailable
･SEAL, DUST
20
Yamaha Motors
･SEAL, DUST4CU-F3144-00
Required: 1
･SEAL, DUST
Price unavailable
･OIL SEAL
21
Yamaha Motors
･OIL SEAL4CU-F3145-00
Required: 1
･OIL SEAL
Price unavailable
･CLIP, OIL SEAL
22
Yamaha Motors
･CLIP, OIL SEAL4CU-F3156-00
Required: 1
･CLIP, OIL SEAL
Price unavailable
･INNER TUBE COMP. 1
23
Yamaha Motors
･INNER TUBE COMP. 14CU-F3110-00
Required: 1
･INNER TUBE COMP. 1
Price unavailable
･PLUG, INNER TUBE
24
Yamaha Motors
･PLUG, INNER TUBE4CU-F3154-00
Required: 1
･PLUG, INNER TUBE
Price unavailable
･CIRCLIP
25
Yamaha Motors
･CIRCLIP4CU-F3183-00
Required: 1
･CIRCLIP
Price unavailable
･SPRING, REBOUND
26
Yamaha Motors
･SPRING, REBOUND4CU-F3151-00
Required: 1
･SPRING, REBOUND
Price unavailable
･SPRING, FRONT FORK
27
Yamaha Motors
･SPRING, FRONT FORK4PC-F3141-P0
Required: 1
･SPRING, FRONT FORK
Price unavailable
･WASHER, FELT
28
Yamaha Motors
･WASHER, FELT4CU-F3165-00
Required: 1
･WASHER, FELT
Price unavailable
･O-RING
29
Yamaha Motors
･O-RING4CU-F3147-00
Required: 1
･O-RING
Price unavailable
･BOLT, CAP
30
Yamaha Motors
･BOLT, CAP4CU-F3111-00
Required: 1
･BOLT, CAP
Price unavailable
･BOLT, HEXAGON SOCKET HEAD
31
Yamaha Motors
･BOLT, HEXAGON SOCKET HEAD4CU-F3181-00
Required: 1
･BOLT, HEXAGON SOCKET HEAD
Price unavailable
･PISTON, FRONT FORK
32
Yamaha Motors
･PISTON, FRONT FORK4PC-F3171-P0
Required: 1
･PISTON, FRONT FORK
Price unavailable
･RING, PISTON
33
Yamaha Motors
･RING, PISTON4CU-F3157-00
Required: 1
･RING, PISTON
Price unavailable
･SPINDLE, TAPER
34
Yamaha Motors
･SPINDLE, TAPER4CU-F3173-00
Required: 1
･SPINDLE, TAPER
Price unavailable
RING, SNAP
35
Yamaha Motors
RING, SNAP4PC-F3153-00
Required: 1
RING, SNAP
Price unavailable
RING, SNAP
36
Yamaha Motors
RING, SNAP4PC-F3153-00
Required: 1
RING, SNAP
Price unavailable
UNDER BRACKET COMP.
37
Yamaha Motors
UNDER BRACKET COMP.4PC-F3340-00
Required: 1
UNDER BRACKET COMP.
Price unavailable
-15%
BALL RACE
38
Yamaha Motors
BALL RACEBP2-23414-00-00
Required: 1
･RACE, BALL 4
Supersedes: 22F-23414-01-00
Cross Ship
Leaves in 2-5 days
$19.49
$16.57
You save $2.92
More details
HOLDER, CABLE
40
Yamaha Motors
HOLDER, CABLE4CX-F3317-00
Required: 1
HOLDER, CABLE
Price unavailable
HOLDER, BRAKE HOSE 1
41
Yamaha Motors
HOLDER, BRAKE HOSE 14PC-F5875-00
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
-15%
95811-06016-00
43
Yamaha Motors
95811-06016-0095801-06016-00
Required: 1
BOLT, BLANGE
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
-15%
BALL RACE
44
Yamaha Motors
BALL RACEBP2-23411-00-00
Required: 1
RACE, BALL 1
Supersedes: 22F-23411-01-00
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
-15%
Ball Race
45
Yamaha Motors
Ball RaceBP2-23412-00-00
Required: 1
RACE, BALL 2
Supersedes: 22F-23412-01-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
-15%
RETAINER, BALL BEARING
47
Yamaha Motors
RETAINER, BALL BEARINGBP2-2341E-00-00
Required: 2
RETAINER, BALL BEARING
Supersedes: 22F-2341E-00-00
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
-15%
Nut
48
Yamaha Motors
Nut90179-25004-00
Required: 2
NUT
Supersedes: 90179-25033-00
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
