All diagrams for this model

1995 Scooter YA50R - YA50R (4PC4) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

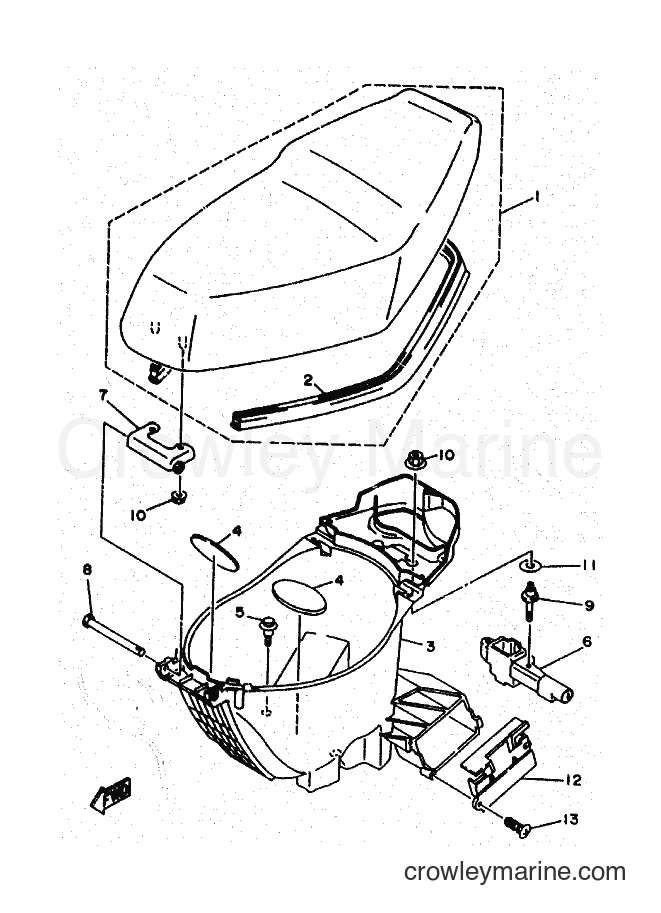

Yamaha Motors YA50R (4PC4) [010] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY4PC-F4730-10
Required: 1
DOUBLE SEAT ASSY
Price unavailable
･SEAL
2
Yamaha Motors
･SEAL4MJ-F475M-00
Required: 1
･SEAL
Price unavailable
BOX 1
3
Yamaha Motors
BOX 14MJ-F473R-01
Required: 1
BOX 1
Price unavailable
DAMPER, SEAT
4
Yamaha Motors
DAMPER, SEAT4MJ-F4747-00
Required: 3
DAMPER, SEAT
Price unavailable
-15%
BOLT
5
Yamaha Motors
BOLT90109-063F1-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.10
$2.63
You save $0.47
More details
SEAT LOCK ASSY
6
Yamaha Motors
SEAT LOCK ASSY4PC-F4780-00
Required: 1
SEAT LOCK ASSY
Price unavailable
HINGE, SEAT
7
Yamaha Motors
HINGE, SEAT3WG-F4726-00
Required: 1
HINGE, SEAT
Price unavailable
-15%
PIN
8
Yamaha Motors
PIN90241-10015-00
Required: 1
PIN
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
BOLT, SEAT FITTING
9
Yamaha Motors
BOLT, SEAT FITTING3VP-24717-00
Required: 2
BOLT, SEAT FITTING
Price unavailable
-15%
SPECIAL SHAPE NUT
10
Yamaha Motors
SPECIAL SHAPE NUT90179-06403-00
Required: 4
NUT
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details
-15%
Plain Washer
11
Yamaha Motors
Plain Washer90201-06107-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.35
$1.15
You save $0.20
More details
COVER, BATTERY
12
Yamaha Motors
COVER, BATTERY3WG-H2129-00
Required: 1
COVER, BATTERY
Price unavailable
-15%
Truss Screw
13
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TAPPING
Supersedes: 90167-05041-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
