1995 Scooter YA50R - YA50R (4PC4) [999] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

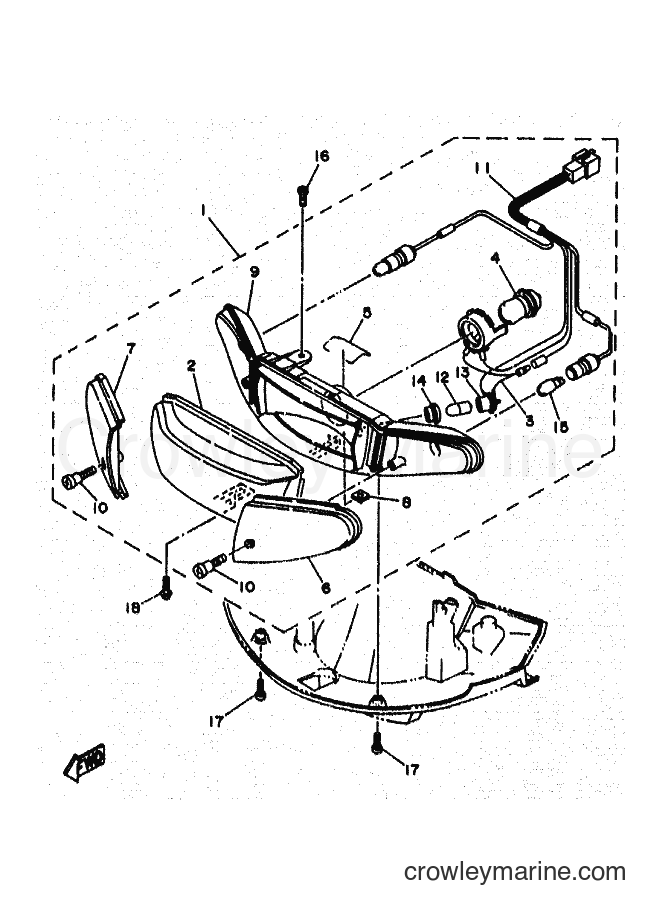

Yamaha Motors YA50R (4PC4) [999] - HEADLIGHT
Change View:
HEADLIGHT ASSY
1
Yamaha Motors
HEADLIGHT ASSY4PC-H4300-00
Required: 1
HEADLIGHT ASSY
Price unavailable
･LENS ASSY
2
Yamaha Motors
･LENS ASSY4PC-H4321-00
Required: 1
･LENS ASSY
Price unavailable
･HOLDER, SOCKET
3
Yamaha Motors
･HOLDER, SOCKET4PC-H4312-00
Required: 1
･HOLDER, SOCKET
Price unavailable
･BULB, HEADLIGHT
4
Yamaha Motors
･BULB, HEADLIGHT4PC-H4314-00
Required: 1
･BULB, HEADLIGHT
Price unavailable
･SPRING, REFLECTOR
5
Yamaha Motors
･SPRING, REFLECTOR3WG-H4324-00
Required: 1
･SPRING, REFLECTOR
Price unavailable
･LENS, FLASHER
6
Yamaha Motors
･LENS, FLASHER4PC-H3312-00
Required: 1
･LENS, FLASHER
Price unavailable
･LENS, FLASHER
6
Yamaha Motors
･LENS, FLASHER4MJ-H3312-00
Required: 1
･LENS, FLASHER
Price unavailable
･LENS, FLASHER 2
7
Yamaha Motors
･LENS, FLASHER 24MJ-H3322-00
Required: 1
･LENS, FLASHER 2
Price unavailable
･LENS, FLASHER 2
7
Yamaha Motors
･LENS, FLASHER 24PC-H3322-00
Required: 1
･LENS, FLASHER 2
Price unavailable
･NUT
8
Yamaha Motors
･NUT4MJ-H4317-00
Required: 1
･NUT
Price unavailable
･BODY, HEADLIGHT
9
Yamaha Motors
･BODY, HEADLIGHT4MJ-H4311-00
Required: 1
･BODY, HEADLIGHT
Price unavailable
･BOLT, SPECIAL
10
Yamaha Motors
･BOLT, SPECIAL4MJ-H4337-00
Required: 2
･BOLT, SPECIAL
Price unavailable
･CORD, HEADLIGHT
11
Yamaha Motors
･CORD, HEADLIGHT4PC-H4359-00
Required: 1
･CORD, HEADLIGHT
Price unavailable
･BULB (12V-4W)
12
Yamaha Motors
･BULB (12V-4W)4CX-H4347-00
Required: 1
･BULB (12V-4W)
Price unavailable
･SOCKET, PILOT LIGHT
13
Yamaha Motors
･SOCKET, PILOT LIGHT4CX-H4346-00
Required: 1
･SOCKET, PILOT LIGHT
Price unavailable
･GROMMET
14
Yamaha Motors
･GROMMET4CX-H4352-00
Required: 1
･GROMMET
Price unavailable
･BULB (12V-10W)
15
Yamaha Motors
･BULB (12V-10W)3VP-83311-00
Required: 2
･BULB (12V-10W)
Price unavailable
SCREW, TAPPING
17
Yamaha Motors
SCREW, TAPPING97702-50022
Required: 2
SCREW, TAPPING
Price unavailable
-15%
WCREW WITH WASHER
18
Yamaha Motors
WCREW WITH WASHER90159-05155-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
