All diagrams for this model

1994 Scooter YE50 - YE50 (4LN2) [999] FRONT BRAKE CALIPER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

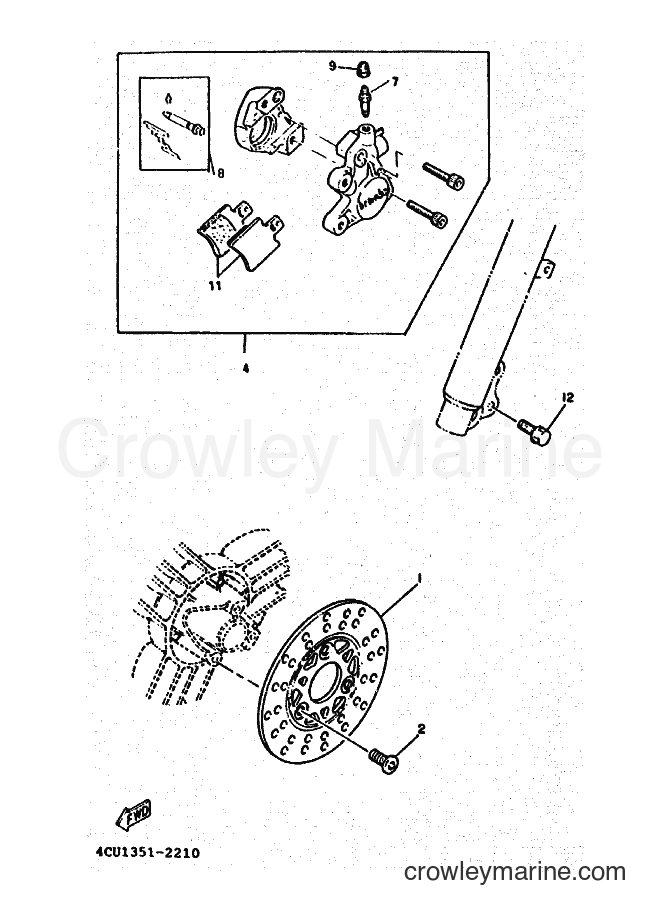

Yamaha Motors YE50 (4LN2) [999] - FRONT BRAKE CALIPER
Change View:
-15%
BRAKE DISK (LEFT)
1
Yamaha Motors
BRAKE DISK (LEFT)5SU-F582T-00-00
Required: 1
DISC, BRAKE
Supersedes: 2NA-25831-00-00
Cross Ship
Leaves in 2-5 days
$57.99
$49.29
You save $8.70
More details
BOLT, HEXAGON SOCKET
2
Yamaha Motors
BOLT, HEXAGON SOCKET90110-10156
Required: 3
BOLT, HEXAGON SOCKET
Price unavailable
CALIPER ASSY (LEFT)
4
Yamaha Motors
CALIPER ASSY (LEFT)4CU-F580T-00
Required: 1
CALIPER ASSY (LEFT)
Price unavailable
-15%
Cap
9
Yamaha Motors
Cap4CU-F5825-00-00
Required: 1
.CAP
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details
.PAD, CALIPER 2
11
Yamaha Motors
.PAD, CALIPER 24CU-F5811-00
Required: 1
.PAD, CALIPER 2
Price unavailable
-15%
Flange Bolt
12
Yamaha Motors
Flange Bolt95817-08030-00
Required: 2
BOLT, FLANGE
Supersedes: 95821-08030-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
