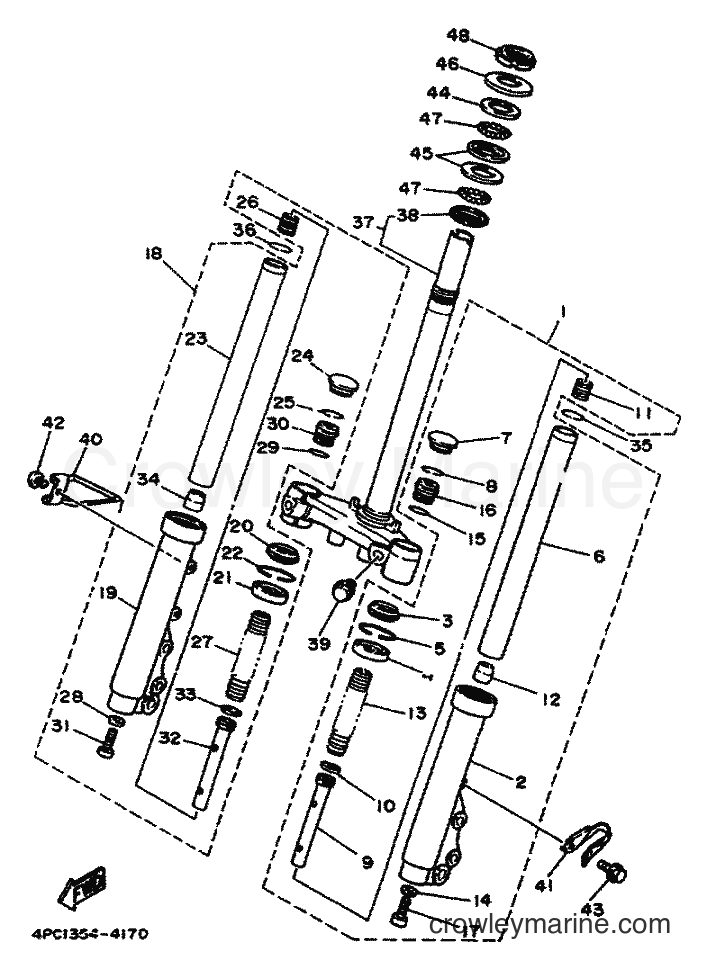

1994 Scooter YA50R - YA50R (4PC1) [999] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YA50R (4PC1) [999] - FRONT FORK
Change View:
FRONT FORK ASSY (L.H)
1
Yamaha Motors
FRONT FORK ASSY (L.H)4PC-F3102-P0
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
. TUBE, OUTER (LEFT)
2
Yamaha Motors
. TUBE, OUTER (LEFT)4PC-F3126-P0
Required: 1
. TUBE, OUTER (LEFT)
Price unavailable
. SEAL, DUST
3
Yamaha Motors
. SEAL, DUST4CU-F3144-00
Required: 1
. SEAL, DUST
Price unavailable
. OIL SEAL
4
Yamaha Motors
. OIL SEAL4CU-F3145-00
Required: 1
. OIL SEAL
Price unavailable
. CLIP, OIL SEAL
5
Yamaha Motors
. CLIP, OIL SEAL4CU-F3156-00
Required: 1
. CLIP, OIL SEAL
Price unavailable
. INNER TUBE COMP.1
6
Yamaha Motors
. INNER TUBE COMP.14CU-F3110-00
Required: 1
. INNER TUBE COMP.1
Price unavailable
. PLUG, INNER TUBE
7
Yamaha Motors
. PLUG, INNER TUBE4CU-F3154-00
Required: 1
. PLUG, INNER TUBE
Price unavailable
. CIRCLIP
8
Yamaha Motors
. CIRCLIP4CU-F3183-00
Required: 1
. CIRCLIP
Price unavailable
. PISTON, FRONT FORK
9
Yamaha Motors
. PISTON, FRONT FORK4CU-F3171-P0
Required: 1
. PISTON, FRONT FORK
Price unavailable
. RING, PISTON
10
Yamaha Motors
. RING, PISTON4CU-F3157-00
Required: 1
. RING, PISTON
Price unavailable
. SPRING, REBOUND
11
Yamaha Motors
. SPRING, REBOUND4CU-F3151-00
Required: 1
. SPRING, REBOUND
Price unavailable
. SPINDLE, TAPER
12
Yamaha Motors
. SPINDLE, TAPER4CU-F3173-00
Required: 1
. SPINDLE, TAPER
Price unavailable
. SPRING, FRONT FORK
13
Yamaha Motors
. SPRING, FRONT FORK4CU-F3141-P0
Required: 1
. SPRING, FRONT FORK
Price unavailable
. WASHER, FELT
14
Yamaha Motors
. WASHER, FELT4CU-F3165-00
Required: 1
. WASHER, FELT
Price unavailable
. O-RING
15
Yamaha Motors
. O-RING4CU-F3147-00
Required: 1
. O-RING
Price unavailable
. BOLT, CAP
16
Yamaha Motors
. BOLT, CAP4CU-F3111-00
Required: 1
. BOLT, CAP
Price unavailable
. BOLT, HEXAGON SOCKET HEAD
17
Yamaha Motors
. BOLT, HEXAGON SOCKET HEAD4CU-F3181-00
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
FRONT FORK ASSY (R.H)
18
Yamaha Motors
FRONT FORK ASSY (R.H)4PC-F3103-P0
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
. TUBE, OUTER (RIGHT)
19
Yamaha Motors
. TUBE, OUTER (RIGHT)4PC-F3136-P0
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
. SEAL, DUST
20
Yamaha Motors
. SEAL, DUST4CU-F3144-00
Required: 1
. SEAL, DUST
Price unavailable
. OIL SEAL
21
Yamaha Motors
. OIL SEAL4CU-F3145-00
Required: 1
. OIL SEAL
Price unavailable
. CLIP, OIL SEAL
22
Yamaha Motors
. CLIP, OIL SEAL4CU-F3156-00
Required: 1
. CLIP, OIL SEAL
Price unavailable
. INNER TUBE COMP.1
23
Yamaha Motors
. INNER TUBE COMP.14CU-F3110-00
Required: 1
. INNER TUBE COMP.1
Price unavailable
. PLUG, INNER TUBE
24
Yamaha Motors
. PLUG, INNER TUBE4CU-F3154-00
Required: 1
. PLUG, INNER TUBE
Price unavailable
. CIRCLIP
25
Yamaha Motors
. CIRCLIP4CU-F3183-00
Required: 1
. CIRCLIP
Price unavailable
. SPRING, REBOUND
26
Yamaha Motors
. SPRING, REBOUND4CU-F3151-00
Required: 1
. SPRING, REBOUND
Price unavailable
. SPRING, FRONT FORK
27
Yamaha Motors
. SPRING, FRONT FORK4PC-F3141-P0
Required: 1
. SPRING, FRONT FORK
Price unavailable
. WASHER, FELT
28
Yamaha Motors
. WASHER, FELT4CU-F3165-00
Required: 1
. WASHER, FELT
Price unavailable
. O-RING
29
Yamaha Motors
. O-RING4CU-F3147-00
Required: 1
. O-RING
Price unavailable
. BOLT, CAP
30
Yamaha Motors
. BOLT, CAP4CU-F3111-00
Required: 1
. BOLT, CAP
Price unavailable
. BOLT, HEXAGON SOCKET HEAD
31
Yamaha Motors
. BOLT, HEXAGON SOCKET HEAD4CU-F3181-00
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
. PISTON, FRONT FORK
32
Yamaha Motors
. PISTON, FRONT FORK4PC-F3171-P0
Required: 1
. PISTON, FRONT FORK
Price unavailable
. RING, PISTON
33
Yamaha Motors
. RING, PISTON4CU-F3157-00
Required: 1
. RING, PISTON
Price unavailable
. SPINDLE, TAPER
34
Yamaha Motors
. SPINDLE, TAPER4CU-F3173-00
Required: 1
. SPINDLE, TAPER
Price unavailable
RING, SNAP
35
Yamaha Motors
RING, SNAP4CU-F3153-00
Required: 1
RING, SNAP
Price unavailable
RING, SNAP
36
Yamaha Motors
RING, SNAP4CU-F3153-00
Required: 1
RING, SNAP
Price unavailable
UNDER BRACKET COMP.
37
Yamaha Motors
UNDER BRACKET COMP.4PC-F3340-00
Required: 1
UNDER BRACKET COMP.
Price unavailable
-15%
BALL RACE
38
Yamaha Motors
BALL RACEBP2-23414-00-00
Required: 1
. RACE, BALL 4
Supersedes: 22F-23414-01-00
Cross Ship
Leaves in 2-5 days
$19.49
$16.57
You save $2.92
More details
-15%
Flange Bolt
39
Yamaha Motors
Flange Bolt95817-10030-00
Required: 2
BOLT, FLANGE
Supersedes: 95827-10030-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
HOLDER, CABLE
40
Yamaha Motors
HOLDER, CABLE4PC-F3317-00
Required: 1
HOLDER, CABLE
Price unavailable
HOLDER, BRAKE HOSE 1
41
Yamaha Motors
HOLDER, BRAKE HOSE 14PC-F5875-00
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
-15%
Bind Screw
42
Yamaha Motors
Bind Screw98907-06010-00
Required: 1
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$1.80
$1.53
You save $0.27
More details
-15%
Flange Bolt
43
Yamaha Motors
Flange Bolt95807-06016-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details
-15%
BALL RACE
44
Yamaha Motors
BALL RACEBP2-23411-00-00
Required: 1
RACE, BALL 1
Supersedes: 22F-23411-01-00
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
-15%
Ball Race
45
Yamaha Motors
Ball RaceBP2-23412-00-00
Required: 2
RACE, BALL 2
Supersedes: 22F-23412-01-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
COVER, BALL RACE 2
46
Yamaha Motors
COVER, BALL RACE 23VP-23416-00
Required: 1
COVER, BALL RACE 2
Price unavailable
-15%
Nut
48
Yamaha Motors
Nut90179-25004-00
Required: 2
NUT
Supersedes: 90179-25033-00
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
