1994 Scooter YA50R - YA50R (4PC1) [999] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

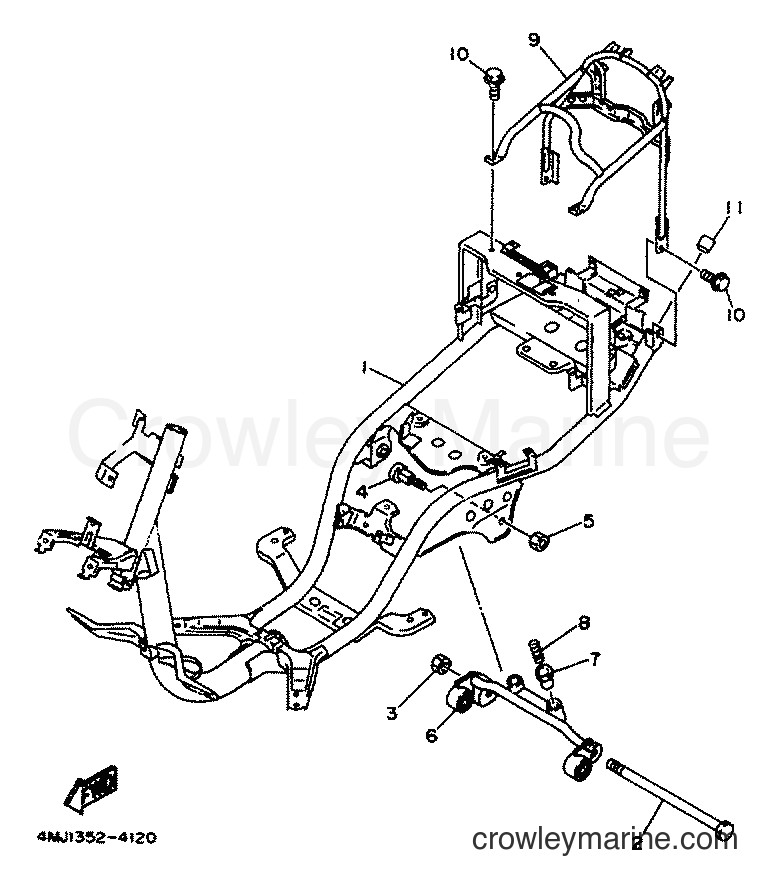

Yamaha Motors YA50R (4PC1) [999] - FRAME

Change View:

Yamaha Motors

FRAME COMP.4PC-F1110-00

Required: 1

FRAME COMP.

Price unavailable

Yamaha Motors

BOLT, ENGINE MOUNTING 13WG-F1481-00

Required: 1

BOLT, ENGINE MOUNTING 1

Price unavailable

-15%

Yamaha Motors

FLANGE NUT95607-12200-00

Required: 1

NUT, SELF-LOCKING

~~$6.49~~

$5.52

You save $0.97

More details

Yamaha Motors

BOLT, ENGINE MOUNTING 13WG-F1481-10

Required: 2

BOLT, ENGINE MOUNTING 1

Price unavailable

-15%

Yamaha Motors

Self-Locking Nut90185-10154-00

Required: 2

NUT, SELF-LOCKING

~~$9.49~~

$8.07

You save $1.42

More details

Yamaha Motors

ENGINE BRACKET COMP.3WG-F1410-00

Required: 1

ENGINE BRACKET COMP.

Price unavailable

Yamaha Motors

DAMPER3WG-F139X-00

Required: 2

DAMPER

Price unavailable

-15%

Yamaha Motors

Compression Spring90501-290K2-00

Required: 2

SPRING, COMPRESSION

Supersedes: 90501-29517-00

No longer availableSearch Nationwide Inventory

~~$2.30~~

$1.96

You save $0.35

More details

Yamaha Motors

REINFORCEMENT, TAIL4MJ-F1232-00

Required: 1

REINFORCEMENT, TAIL

Price unavailable

-20%

Yamaha Motors

Flange Bolt95817-06012-00

Required: 4

BOLT, FLANGE

Supersedes: 95807-06012-00

1 aftermarket alternative

In stock

Only 2 remaining

~~$1.95~~

$1.56

You save $0.39

More details

Yamaha Motors

COVER 24MJ-F117M-00

Required: 2

COVER 2

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
