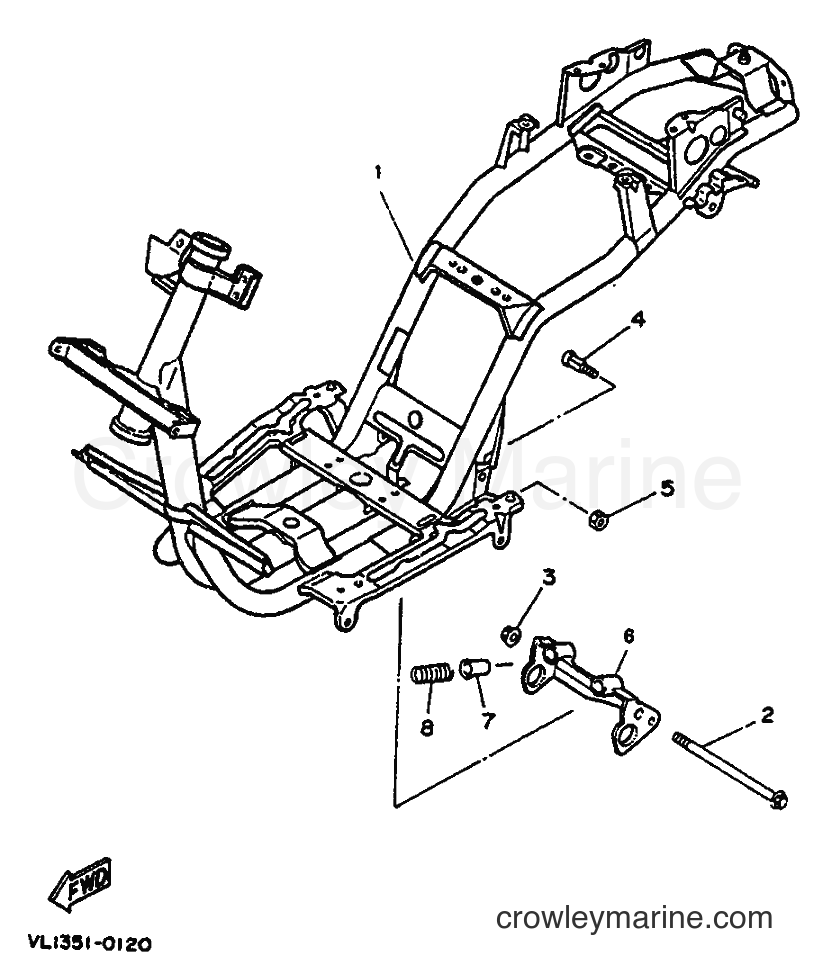

1994 Scooter CW50 - CW50 (4EY2) [999] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Yamaha Motors

FRAME COMP.3VL-F1110-30

Required: 1

FRAME COMP.

Price unavailable

-15%

Yamaha Motors

Washer Based Bolt90105-10063-00

Required: 1

BOLT, WASHER BASED

~~$12.49~~

$10.62

You save $1.87

-15%

NUT

~~$9.49~~

$8.07

You save $1.42

More details

-12%

Yamaha Motors

Engine Mounting Bolt2T4-21481-01-00

Required: 2

BOLT, ENGINE MOUNTING 1

~~$3.60~~

$3.15

You save $0.45

-15%

NUT, U

Supersedes: 95611-10100-00

~~$8.49~~

$7.22

You save $1.27

More details

Yamaha Motors

ENGINE BRACKET COMP.3VL-F1410-10

Required: 1

ENGINE BRACKET COMP.

Price unavailable

-15%

Yamaha Motors

DAMPER 22T4-2139X-00-00

Required: 2

DAMPER

No longer availableSearch Nationwide Inventory

~~$10.99~~

$9.34

You save $1.65

More details

Yamaha Motors

LABEL, WARNING4EY-F1568-00

Required: 1

LABEL, WARNING

Price unavailable

-15%

Yamaha Motors

Compression Spring90501-290K2-00

Required: 1

SPRING, COMPRESSION

Supersedes: 90501-29517-00

No longer availableSearch Nationwide Inventory

~~$2.30~~

$1.96

You save $0.35

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
