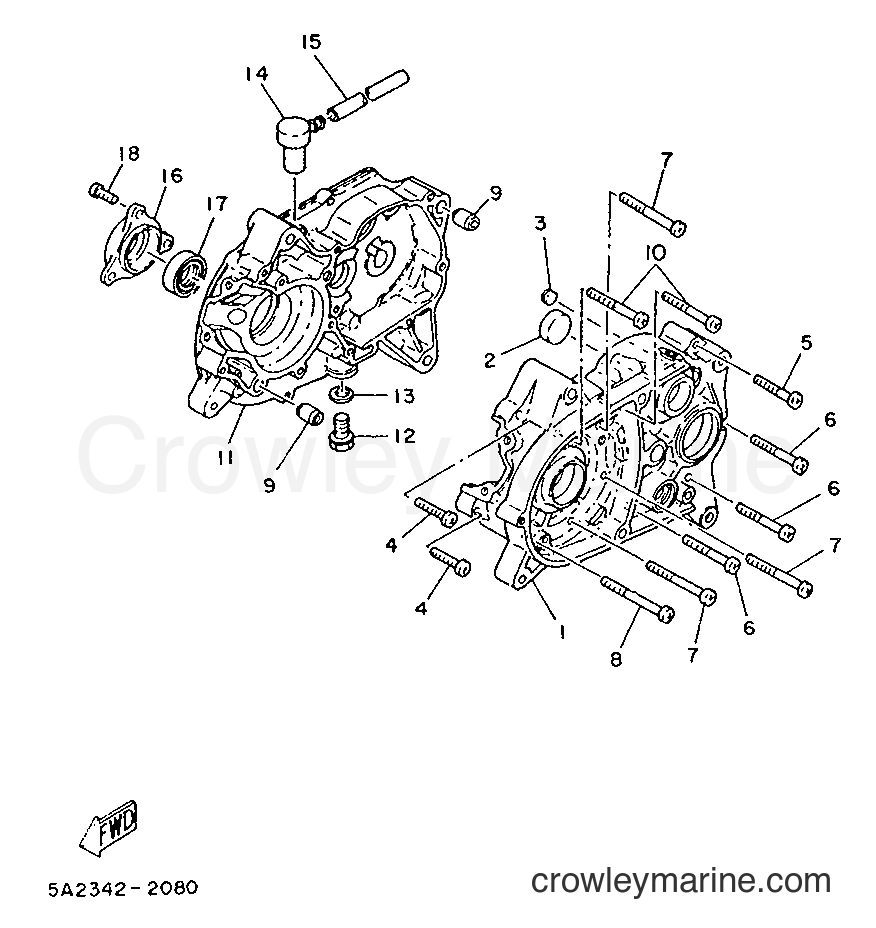

1988 Scooter FS1 - FS1 (3EE1) [999] CRANKCASE diagram
![Yamaha Motors FS1 (3EE1) [999] - CRANKCASE](https://cdn.crowleymarine.com/yamaha/Zp3EFZgv.png)
1
Yamaha Motors
CRANKCASE 1257-15111-02
Required: 1
CRANKCASE 1
Price unavailable
-15%
$14.02
You save $2.47
-15%
3
Yamaha Motors
Straight Plug90334-10006-00
Required: 1
PLUG, STRAIGHT
No longer availableSearch Nationwide Inventory
$5.94
You save $1.05
-15%
4
Yamaha Motors
98580-06030-0098501-06030-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06030-00
No longer availableSearch Nationwide Inventory
$4.29
You save $0.76
-15%
5
Yamaha Motors
Pan Head Screw98580-06545-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92503-06045-00
$5.52
You save $0.97
-15%
6
Yamaha Motors
Pan Head Screw98580-06550-00
Required: 3
SCREW, PAN HEAD
Supersedes: 92501-06050-00
$8.07
You save $1.42
-15%
7
Yamaha Motors
Pan Head Screw98580-06560-00
Required: 3
SCREW, PAN HEAD
Supersedes: 92501-06060-00
$8.92
You save $1.57
-15%
8
Yamaha Motors
98580-06565-0098501-06065-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92501-06065-00
No longer availableSearch Nationwide Inventory
$5.52
You save $0.97
-50%
9
Yamaha Motors
Dowel Pin99530-12016-00
Required: 2
PIN, DOWEL
Supersedes: 99510-12016-00
In stock
Only 2 remaining
$2.45
You save $2.45
-15%
10
Yamaha Motors
98501-06055-0092501-06055-00
Required: 2
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$4.72
You save $0.83
11
Yamaha Motors
CRANKCASE 2378-15121-60
Required: 1
CRANKCASE 2
Price unavailable
-15%
12
Yamaha Motors
Straight Screw Plug90340-12005-00
Required: 1
PLUG, STRAIGHT SCREW
$8.07
You save $1.42
-50%
13
Yamaha Motors
Tank Cap Gasket90430-12207-00
Required: 1
GASKET
Supersedes: 90430-12038-00
In stock
Only 5 remaining
$4.25
You save $4.25
-15%
$6.37
You save $1.12
-15%
No longer availableSearch Nationwide Inventory
$0.89
You save $0.16
16
Yamaha Motors
HOUSING, OIL SEAL378-15359-60
Required: 1
HOUSING, OIL SEAL
Price unavailable
17
Yamaha Motors
OIL SEAL93103-25708
Required: 1
OIL SEAL
Price unavailable
-15%
18
Yamaha Motors
98501-06014-0092501-06014-00
Required: 3
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$0.76
You save $0.14
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
