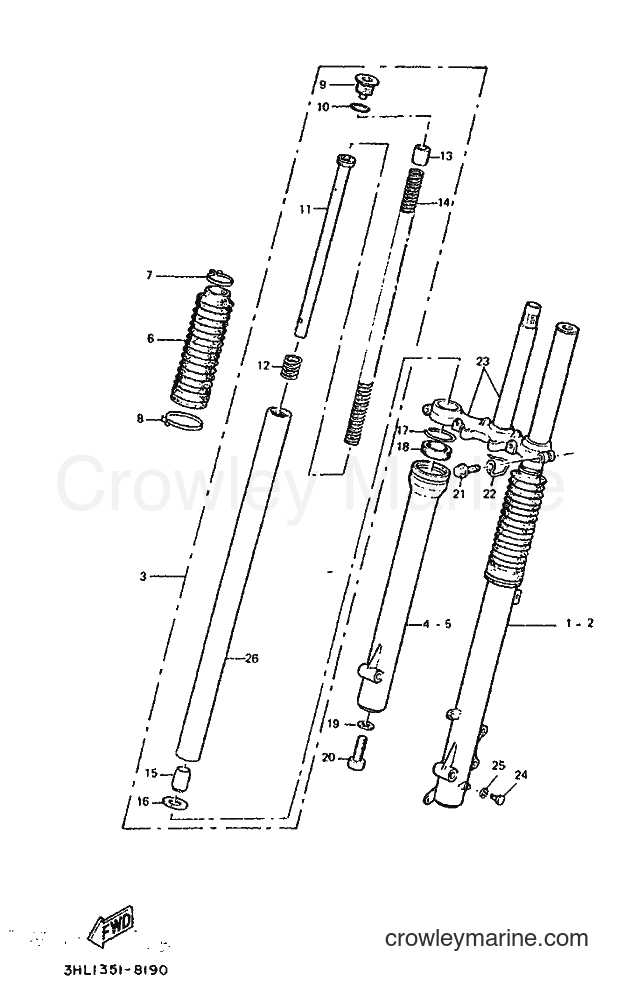

Yamaha Motors DT50R (3HL2) [999] - FOURCHE
Change View:
FRONT FORK ASSY (L.H)
1
Yamaha Motors
FRONT FORK ASSY (L.H)3HL-F3102-20
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
FRONT FORK ASSY (R.H)
2
Yamaha Motors
FRONT FORK ASSY (R.H)3HL-F3103-00
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
INNER TUBE COMP.1
3
Yamaha Motors
INNER TUBE COMP.13HL-F3110-00
Required: 2
INNER TUBE COMP.1
Price unavailable
TUBE, OUTER (L.H)
4
Yamaha Motors
TUBE, OUTER (L.H)3HL-F3126-10
Required: 1
TUBE, OUTER (L.H)
Price unavailable
TUBE, OUTER 2
5
Yamaha Motors
TUBE, OUTER 23HL-F3136-00
Required: 1
TUBE, OUTER 2
Price unavailable
BOOT
6
Yamaha Motors
BOOT3HL-F3191-00
Required: 2
BOOT
Price unavailable
BOOT
6
Yamaha Motors
BOOT3HL-F3191-20
Required: 2
BOOT
Price unavailable
BOOT
6
Yamaha Motors
BOOT3HL-F3191-10
Required: 2
BOOT
Price unavailable
BAND
7
Yamaha Motors
BAND3HL-F3192-00
Required: 2
BAND
Price unavailable
BAND
8
Yamaha Motors
BAND3HL-F3192-10
Required: 2
BAND
Price unavailable
BOLT, CAP
9
Yamaha Motors
BOLT, CAP3HL-F3111-00
Required: 2
BOLT, CAP
Price unavailable
GASKET
10
Yamaha Motors
GASKET3HL-F3114-00
Required: 2
GASKET
Price unavailable
PISTON, FRONT FORK
11
Yamaha Motors
PISTON, FRONT FORK3HL-F3171-00
Required: 2
PISTON, FRONT FORK
Price unavailable
SPRING, SUB
12
Yamaha Motors
SPRING, SUB3HL-F3152-00
Required: 2
SPRING, SUB
Price unavailable
SPACER
13
Yamaha Motors
SPACER3HL-F3118-00
Required: 2
SPACER
Price unavailable
SPRING, FRONT FORK
14
Yamaha Motors
SPRING, FRONT FORK3HL-F3141-00
Required: 2
SPRING, FRONT FORK
Price unavailable
SPINDLE, TAPER
15
Yamaha Motors
SPINDLE, TAPER3HL-F3173-00
Required: 2
SPINDLE, TAPER
Price unavailable
SEAT 2
16
Yamaha Motors
SEAT 23HL-F3116-00
Required: 2
SEAT 2
Price unavailable
RING, SNAP
17
Yamaha Motors
RING, SNAP3HL-F3156-00
Required: 2
RING, SNAP
Price unavailable
OIL SEAL
18
Yamaha Motors
OIL SEAL3HL-F3145-00
Required: 2
OIL SEAL
Price unavailable
GASKET
19
Yamaha Motors
GASKET3HL-F3158-00
Required: 2
GASKET
Price unavailable
BOLT, HEXAGON SOCKET HEAD
20
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD3HL-F3181-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
BOLT, FITTING 1
21
Yamaha Motors
BOLT, FITTING 13HL-F3451-00
Required: 1
BOLT, FITTING 1
Price unavailable
UNDER BRACKET COMP.
23
Yamaha Motors
UNDER BRACKET COMP.3HL-F3340-00
Required: 1
UNDER BRACKET COMP.
Price unavailable
SCREW
24
Yamaha Motors
SCREW3HL-F3119-00
Required: 2
SCREW
Price unavailable
GASKET, DRAIN PLUG
25
Yamaha Motors
GASKET, DRAIN PLUG3HL-F3129-00
Required: 2
GASKET, DRAIN PLUG
Price unavailable
TUBE, INNER 1
26
Yamaha Motors
TUBE, INNER 13HL-F3124-00
Required: 2
TUBE, INNER 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
