1987 Scooter TZR75 - TZR75 (2UV) [999] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

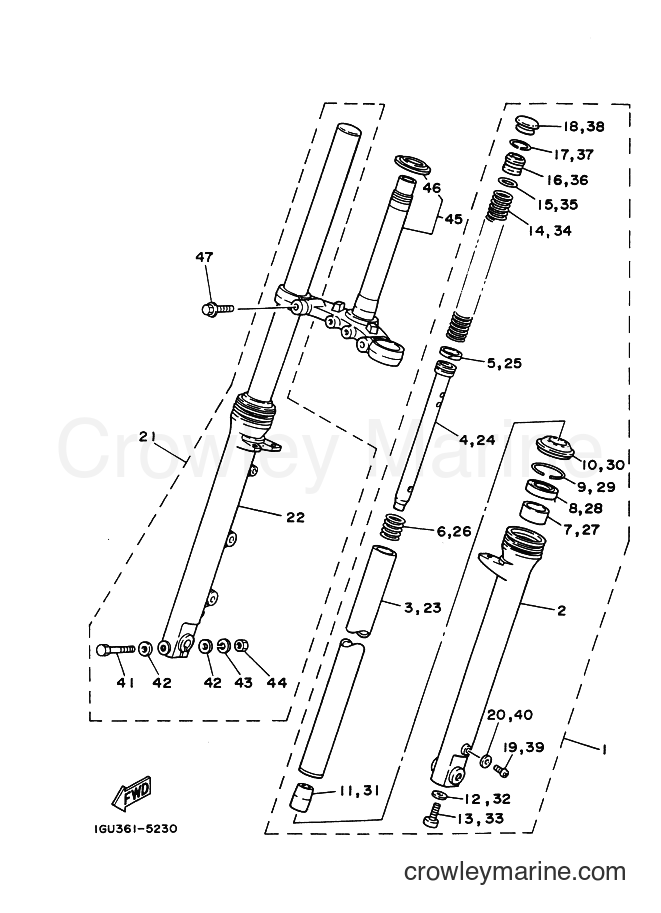

Yamaha Motors TZR75 (2UV) [999] - FRONT FORK
Change View:
FRONT FORK ASSY (L.H)
1
Yamaha Motors
FRONT FORK ASSY (L.H)2RN-F3102-00
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
. TUBE, OUTER (L.H)
2
Yamaha Motors
. TUBE, OUTER (L.H)2RN-F3126-00
Required: 1
. TUBE, OUTER (L.H)
Price unavailable
. INNER TUBE COMP.1
3
Yamaha Motors
. INNER TUBE COMP.12RN-F3110-00
Required: 11
. INNER TUBE COMP.1
Price unavailable
. PISTON, FRONT FORK
4
Yamaha Motors
. PISTON, FRONT FORK2RN-F3171-00
Required: 1
. PISTON, FRONT FORK
Price unavailable
. RING, PISTON
5
Yamaha Motors
. RING, PISTON2RN-F3157-00
Required: 1
. RING, PISTON
Price unavailable
. SPRING, REBOUND
6
Yamaha Motors
. SPRING, REBOUND2RN-F3151-00
Required: 1
. SPRING, REBOUND
Price unavailable
. METAL, SLIDE 1
7
Yamaha Motors
. METAL, SLIDE 12RN-F3125-00
Required: 1
. METAL, SLIDE 1
Price unavailable
-15%
OK Seal SWO-Type
8
Yamaha Motors
OK Seal SWO-Type93110-33023-00
Required: 1
. OIL SEAL
Supersedes: 93110-33018-00
Cross Ship
Leaves in 2-5 days
$17.49
$14.87
You save $2.62
More details
. RING, SNAP
9
Yamaha Motors
. RING, SNAP2RN-F3156-00
Required: 1
. RING, SNAP
Price unavailable
. SEAL, DUST
10
Yamaha Motors
. SEAL, DUST1GU-23144-00
Required: 1
. SEAL, DUST
Price unavailable
. SPINDLE, TAPER
11
Yamaha Motors
. SPINDLE, TAPER2RN-F3173-00
Required: 1
. SPINDLE, TAPER
Price unavailable
-20%
Gasket
12
Yamaha Motors
Gasket90430-08143-00
Required: 1
. GASKET
Supersedes: 90430-08155-00
2 aftermarket alternatives
Cross Ship
Backordered
$3.45
$2.76
You save $0.69
More details
-15%
Socket Bolt
13
Yamaha Motors
Socket Bolt91314-08025-00
Required: 1
. BOLT
Supersedes: 91311-08025-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
. SPRING, FRONT FORK
14
Yamaha Motors
. SPRING, FRONT FORK2RN-F3141-00
Required: 1
. SPRING, FRONT FORK
Price unavailable
. O-RING
15
Yamaha Motors
. O-RING93210-23858
Required: 1
. O-RING
Price unavailable
. BOLT, CAP
16
Yamaha Motors
. BOLT, CAP2RN-F3111-00
Required: 1
. BOLT, CAP
Price unavailable
. CAP
18
Yamaha Motors
. CAP2RN-F3154-00
Required: 1
. CAP
Price unavailable
. SCREW, PAN HEAD
19
Yamaha Motors
. SCREW, PAN HEAD98501-04006
Required: 1
. SCREW, PAN HEAD
Price unavailable
. GASKET, DRAIN PLUG
20
Yamaha Motors
. GASKET, DRAIN PLUG2RN-F3129-00
Required: 1
. GASKET, DRAIN PLUG
Price unavailable
FRONT FORK ASSY (R.H)
21
Yamaha Motors
FRONT FORK ASSY (R.H)2RN-F3103-00
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
. TUBE, OUTER 2
22
Yamaha Motors
. TUBE, OUTER 22RN-F3136-00
Required: 1
. TUBE, OUTER 2
Price unavailable
. INNER TUBE COMP.1
23
Yamaha Motors
. INNER TUBE COMP.12RN-F3110-00
Required: 1
. INNER TUBE COMP.1
Price unavailable
. PISTON, FRONT FORK
24
Yamaha Motors
. PISTON, FRONT FORK2RN-F3171-00
Required: 1
. PISTON, FRONT FORK
Price unavailable
. RING, PISTON
25
Yamaha Motors
. RING, PISTON2RN-F3157-00
Required: 1
. RING, PISTON
Price unavailable
. SPRING, REBOUND
26
Yamaha Motors
. SPRING, REBOUND2RN-F3151-00
Required: 1
. SPRING, REBOUND
Price unavailable
. METAL, SLIDE 1
27
Yamaha Motors
. METAL, SLIDE 12RN-F3125-00
Required: 1
. METAL, SLIDE 1
Price unavailable
-15%
OK Seal SWO-Type
28
Yamaha Motors
OK Seal SWO-Type93110-33023-00
Required: 1
. OIL SEAL
Supersedes: 93110-33018-00
Cross Ship
Leaves in 2-5 days
$17.49
$14.87
You save $2.62
More details
. RING, SNAP
29
Yamaha Motors
. RING, SNAP2RN-F3156-00
Required: 1
. RING, SNAP
Price unavailable
. GASKET
30
Yamaha Motors
. GASKET1GU-23114-00
Required: 1
. GASKET
Price unavailable
. SPINDLE, TAPER
31
Yamaha Motors
. SPINDLE, TAPER2RN-F3173-00
Required: 1
. SPINDLE, TAPER
Price unavailable
-20%
Gasket
32
Yamaha Motors
Gasket90430-08143-00
Required: 1
. GASKET
Supersedes: 90430-08155-00
2 aftermarket alternatives
Cross Ship
Backordered
$3.45
$2.76
You save $0.69
More details
-15%
Socket Bolt
33
Yamaha Motors
Socket Bolt91314-08025-00
Required: 1
. BOLT
Supersedes: 91311-08025-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
. SPRING, FRONT FORK
34
Yamaha Motors
. SPRING, FRONT FORK2RN-F3141-00
Required: 1
. SPRING, FRONT FORK
Price unavailable
. O-RING
35
Yamaha Motors
. O-RING93210-23858
Required: 1
. O-RING
Price unavailable
. BOLT, CAP
36
Yamaha Motors
. BOLT, CAP2RN-F3111-00
Required: 1
. BOLT, CAP
Price unavailable
. CAP
38
Yamaha Motors
. CAP2RN-F3154-00
Required: 1
. CAP
Price unavailable
. SCREW, PAN HEAD
39
Yamaha Motors
. SCREW, PAN HEAD98501-04006
Required: 1
. SCREW, PAN HEAD
Price unavailable
. GASKET, DRAIN PLUG
40
Yamaha Motors
. GASKET, DRAIN PLUG2RN-F3129-00
Required: 1
. GASKET, DRAIN PLUG
Price unavailable
-15%
Bolt (663)
41
Yamaha Motors
Bolt (663)97013-08060-00
Required: 1
. BOLT
Supersedes: 97321-08060-00
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
-20%
Nut
44
Yamaha Motors
Nut95333-08600-00
Required: 1
. NUT
Supersedes: 95311-08600-00
Cross Ship
Leaves in 2-5 days
$3.80
$3.04
You save $0.76
More details
UNDER BRACKET COMP.
45
Yamaha Motors
UNDER BRACKET COMP.2RN-F3340-00
Required: 1
UNDER BRACKET COMP.
Price unavailable
-15%
BALL RACE
46
Yamaha Motors
BALL RACEB6E-23411-00-00
Required: 1
. RACE, BALL 1
Supersedes: 156-23411-00-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
