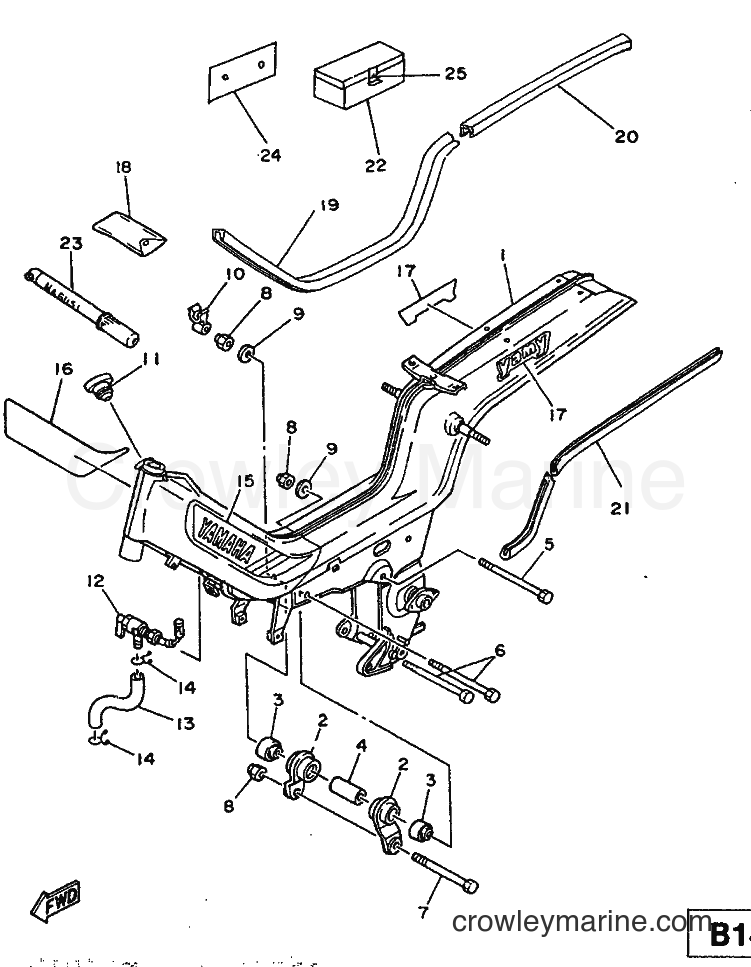

Yamaha Motors ME50 (1TK) [999] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.1TK-F1110-00-RE
Required: 1
FRAME COMP.
Price unavailable
FRAME COMP.
1
Yamaha Motors
FRAME COMP.1TK-F1110-00-33
Required: 1
FRAME COMP.
Price unavailable
FRAME COMP.
1
Yamaha Motors
FRAME COMP.1TK-F1110-00-6R
Required: 1
FRAME COMP.
Price unavailable
FRAME COMP.
1
Yamaha Motors
FRAME COMP.1TK-F1110-00-GE
Required: 1
FRAME COMP.
Price unavailable
FRAME COMP.
1
Yamaha Motors
FRAME COMP.1TK-F1110-00-LN
Required: 1
FRAME COMP.
Price unavailable
ENGINE BRACKET COMP.
2
Yamaha Motors
ENGINE BRACKET COMP.1TK-F1410-00
Required: 2
ENGINE BRACKET COMP.
Price unavailable
-15%
Rear Shock Absorber Bushing
3
Yamaha Motors
Rear Shock Absorber Bushing164-22216-00-00
Required: 2
BUSH, REAR SHOCK ABSORBER
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
COLLAR
4
Yamaha Motors
COLLAR90387-08868
Required: 1
COLLAR
Price unavailable
BOLT
5
Yamaha Motors
BOLT90101-08834
Required: 1
BOLT
Price unavailable
BOLT
6
Yamaha Motors
BOLT90101-08833
Required: 2
BOLT
Price unavailable
BOLT
7
Yamaha Motors
BOLT90101-08835
Required: 1
BOLT
Price unavailable
CLAMP
10
Yamaha Motors
CLAMP90464-07802
Required: 1
CLAMP
Price unavailable
CAP ASSY
11
Yamaha Motors
CAP ASSY1TK-F4610-00
Required: 1
CAP ASSY
Price unavailable
FUEL COCK ASSY 1
12
Yamaha Motors
FUEL COCK ASSY 11TK-F4500-00
Required: 1
FUEL COCK ASSY 1
Price unavailable
HOLDER, NOZZLE
15
Yamaha Motors
HOLDER, NOZZLE1TK-14244-40
Required: 1
HOLDER, NOZZLE
Price unavailable
GRAPHIC, FUEL TANK 1
15
Yamaha Motors
GRAPHIC, FUEL TANK 11TK-24244-10
Required: 1
GRAPHIC, FUEL TANK 1
Price unavailable
GRAPHIC, FUEL TANK 1
15
Yamaha Motors
GRAPHIC, FUEL TANK 11TK-24244-20
Required: 1
GRAPHIC, FUEL TANK 1
Price unavailable
HOLDER, NOZZLE
15
Yamaha Motors
HOLDER, NOZZLE1TK-14244-30
Required: 1
HOLDER, NOZZLE
Price unavailable
HOLDER, NOZZLE
15
Yamaha Motors
HOLDER, NOZZLE1TK-14244-50
Required: 1
HOLDER, NOZZLE
Price unavailable
GRAPHIC, FUEL TANK 1
15
Yamaha Motors
GRAPHIC, FUEL TANK 11TK-24244-00
Required: 1
GRAPHIC, FUEL TANK 1
Price unavailable
SCREW, GUIDE
16
Yamaha Motors
SCREW, GUIDE1TK-14245-50
Required: 1
SCREW, GUIDE
Price unavailable
SCREW, GUIDE
16
Yamaha Motors
SCREW, GUIDE1TK-14245-10
Required: 1
SCREW, GUIDE
Price unavailable
GRAPHIC, FUEL TANK 2
16
Yamaha Motors
GRAPHIC, FUEL TANK 21TK-24245-00
Required: 1
GRAPHIC, FUEL TANK 2
Price unavailable
GRAPHIC, FUEL TANK 2
16
Yamaha Motors
GRAPHIC, FUEL TANK 21TK-24245-40
Required: 1
GRAPHIC, FUEL TANK 2
Price unavailable
SCREW, GUIDE
16
Yamaha Motors
SCREW, GUIDE1TK-14245-20
Required: 1
SCREW, GUIDE
Price unavailable
SCREW, GUIDE
16
Yamaha Motors
SCREW, GUIDE1TK-14245-30
Required: 1
SCREW, GUIDE
Price unavailable
GRAPHIC 1
17
Yamaha Motors
GRAPHIC 11TK-F4891-00
Required: 2
GRAPHIC 1
Price unavailable
GRAPHIC 1
17
Yamaha Motors
GRAPHIC 11TK-F4891-50
Required: 2
GRAPHIC 1
Price unavailable
GRAPHIC 1
17
Yamaha Motors
GRAPHIC 11TK-F4891-10
Required: 2
GRAPHIC 1
Price unavailable
GRAPHIC 1
17
Yamaha Motors
GRAPHIC 11TK-F4891-20
Required: 2
GRAPHIC 1
Price unavailable
GRAPHIC 1
17
Yamaha Motors
GRAPHIC 11TK-F4891-40
Required: 2
GRAPHIC 1
Price unavailable
GRAPHIC 1
17
Yamaha Motors
GRAPHIC 11TK-F4891-30
Required: 2
GRAPHIC 1
Price unavailable
TOOL KIT
18
Yamaha Motors
TOOL KIT1TK-F8100-00
Required: 1
TOOL KIT
Price unavailable
COVER
19
Yamaha Motors
COVER1TK-F117F-00
Required: 1
COVER
Price unavailable
COVER
19
Yamaha Motors
COVER1TK-F117F-10
Required: 1
COVER
Price unavailable
COVER 2
20
Yamaha Motors
COVER 21TK-F117M-00
Required: 1
COVER 2
Price unavailable
COVER 2
20
Yamaha Motors
COVER 21TK-F117M-10
Required: 1
COVER 2
Price unavailable
COVER 3
21
Yamaha Motors
COVER 31TK-F117N-00
Required: 2
COVER 3
Price unavailable
BOX, TOOL
22
Yamaha Motors
BOX, TOOL1TK-F8173-00
Required: 1
BOX, TOOL
Price unavailable
PUMP, AIR
23
Yamaha Motors
PUMP, AIR1TK-F8181-00
Required: 1
PUMP, AIR
Price unavailable
WASHER
24
Yamaha Motors
WASHER1TK-F815G-00
Required: 1
WASHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
