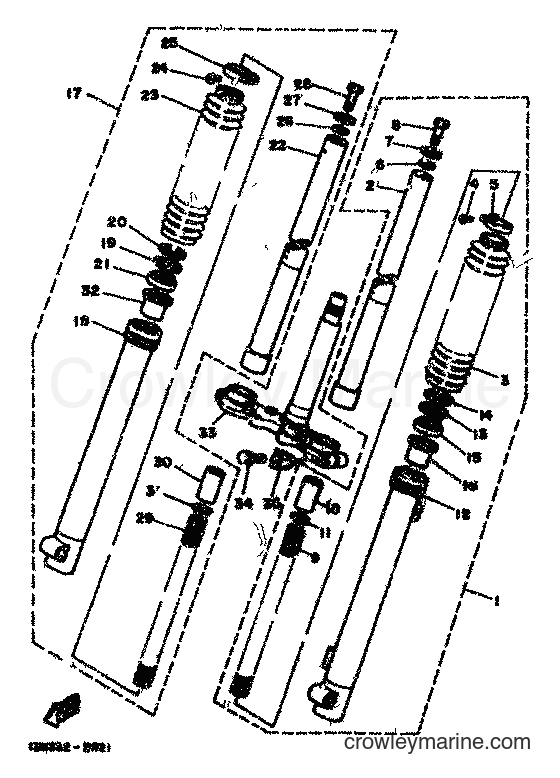

1983 Scooter DT80MX - DT80MX (36N) [999] FRONT FORK diagram
![Yamaha Motors DT80MX (36N) [999] - FRONT FORK](https://cdn.crowleymarine.com/yamaha/pjUJz5Jp.png)
1
Yamaha Motors
FRONT FORK ASSY (L.H)5T8-23102-00
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
2
Yamaha Motors
. TUBE, INNER 15J0-23124-00
Required: 1
. TUBE, INNER 1
Price unavailable
3
Yamaha Motors
. BOOT5J0-23191-00
Required: 1
. BOOT
Price unavailable
-15%
4
Yamaha Motors
BOOTBAND SCREW509-23194-L0-00
Required: 2
. SCREW, BOOT BAND
$4.17
You save $0.74
5
Yamaha Motors
. BAND5J0-23192-00
Required: 1
. BAND
Price unavailable
6
Yamaha Motors
. GASKET2Y1-23114-00
Required: 1
. GASKET
Price unavailable
7
Yamaha Motors
. WASHER, CAP5J0-23112-01
Required: 1
. WASHER, CAP
Price unavailable
8
Yamaha Motors
. BOLT, CAP5G0-23111-00
Required: 1
. BOLT, CAP
Price unavailable
9
Yamaha Motors
. SPRING, FRONT FORK5T8-23141-00
Required: 1
. SPRING, FRONT FORK
Price unavailable
-15%
No longer availableSearch Nationwide Inventory
$3.37
You save $0.59
-15%
11
Yamaha Motors
Oil Seal Washer5J0-23146-00-00
Required: 1
. WASHER, OIL SEAL
No longer availableSearch Nationwide Inventory
$2.80
You save $0.50
12
Yamaha Motors
. TUBE, OUTER (LEFT)5J0-23126-00-98
Required: 1
. TUBE, OUTER (LEFT)
Price unavailable
13
Yamaha Motors
. WASHER, SPRING UPPER5J0-23149-00
Required: 1
. WASHER, SPRING UPPER
Price unavailable
-15%
14
Yamaha Motors
Oil Seal Clip3V3-23156-00-00
Required: 1
. CLIP, OIL SEAL
$7.22
You save $1.27
-15%
15
Yamaha Motors
Oil Seal33J-23145-00-00
Required: 1
. OIL SEAL
Supersedes: 5F6-23145-00-00
$22.09
You save $3.90
16
Yamaha Motors
. METAL, SLIDE 15J0-23125-00
Required: 1
. METAL, SLIDE 1
Price unavailable
17
Yamaha Motors
FRONT FORK ASSY (R.H)5J0-23103-00
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
18
Yamaha Motors
. TUBE, OUTER (RIGHT)5J0-23136-00-98
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
19
Yamaha Motors
. WASHER, SPRING UPPER5J0-23149-00
Required: 1
. WASHER, SPRING UPPER
Price unavailable
-15%
20
Yamaha Motors
Oil Seal Clip3V3-23156-00-00
Required: 1
. CLIP, OIL SEAL
$7.22
You save $1.27
-15%
21
Yamaha Motors
Oil Seal33J-23145-00-00
Required: 1
. OIL SEAL
Supersedes: 5F6-23145-00-00
$22.09
You save $3.90
22
Yamaha Motors
. TUBE, INNER 15J0-23124-00
Required: 1
. TUBE, INNER 1
Price unavailable
23
Yamaha Motors
. BOOT5J0-23191-00
Required: 1
. BOOT
Price unavailable
-15%
24
Yamaha Motors
BOOTBAND SCREW509-23194-L0-00
Required: 2
. SCREW, BOOT BAND
$4.17
You save $0.74
25
Yamaha Motors
. BAND5J0-23192-00
Required: 1
. BAND
Price unavailable
26
Yamaha Motors
. GASKET2Y1-23114-00
Required: 1
. GASKET
Price unavailable
27
Yamaha Motors
. WASHER, CAP5J0-23112-01
Required: 1
. WASHER, CAP
Price unavailable
28
Yamaha Motors
. BOLT, CAP5G0-23111-00
Required: 1
. BOLT, CAP
Price unavailable
29
Yamaha Motors
. SPRING, FRONT FORK5T8-23141-00
Required: 1
. SPRING, FRONT FORK
Price unavailable
-15%
No longer availableSearch Nationwide Inventory
$3.37
You save $0.59
-15%
31
Yamaha Motors
Oil Seal Washer5J0-23146-00-00
Required: 1
. WASHER, OIL SEAL
No longer availableSearch Nationwide Inventory
$2.80
You save $0.50
32
Yamaha Motors
. METAL, SLIDE 15J0-23125-00
Required: 1
. METAL, SLIDE 1
Price unavailable
33
Yamaha Motors
UNDER BRACKET COMP.5T8-23340-00
Required: 1
UNDER BRACKET COMP.
Price unavailable
-15%
34
Yamaha Motors
Bolt122-23346-02-00
Required: 2
BOLT 1
Supersedes: 5J0-23346-00-00
$6.37
You save $1.12
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
