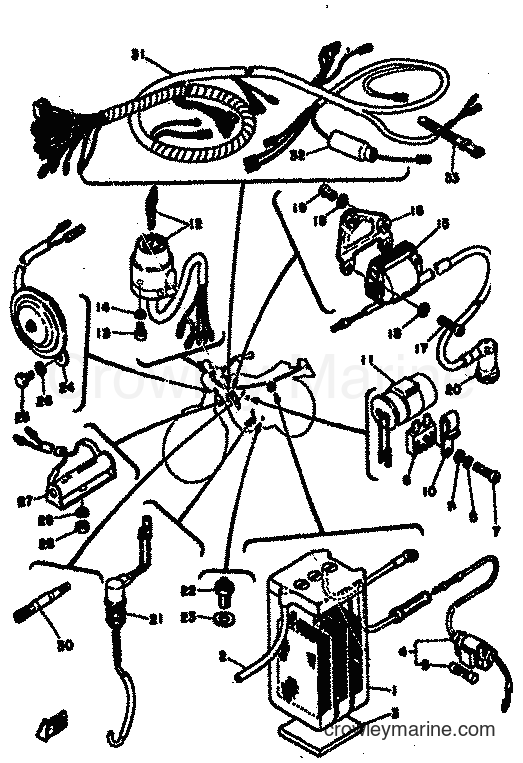

1977 Dirt Bike TY50 - TY50 (1F4) [999] ELECTRICAL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TY50 (1F4) [999] - ELECTRICAL
Change View:
-15%
Obsolete Yamaha Part
5
Yamaha Motors
Obsolete Yamaha Part1A0-82151-00-00
Required: 2
. FUSE
Supersedes: 116-82151-00-00
Cross Ship
Leaves in 2-5 days
$17.99
$15.29
You save $2.70
More details
RECTIFIER ASSY
6
Yamaha Motors
RECTIFIER ASSY482-81970-60
Required: 1
RECTIFIER ASSY
Price unavailable
-15%
RECTIFIER ASSY
6
Yamaha Motors
RECTIFIER ASSY353-81970-M2-00
Required: 1
RECTIFIER ASSY
Supersedes: 353-81970-62-00
Cross Ship
Leaves in 2-5 days
$21.99
$18.69
You save $3.30
More details
-15%
Clamp
10
Yamaha Motors
Clamp90465-06376-00
Required: 1
CLAMP
Supersedes: 90465-06038-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
FLASHER RELAY ASSY
11
Yamaha Motors
FLASHER RELAY ASSY420-83350-30
Required: 1
FLASHER RELAY ASSY
Price unavailable
FLASHER RELAY ASSY
11
Yamaha Motors
FLASHER RELAY ASSY353-83350-10
Required: 1
FLASHER RELAY ASSY
Price unavailable
MAIN SWITCH ASSY
12
Yamaha Motors
MAIN SWITCH ASSY1G4-82508-20
Required: 1
MAIN SWITCH ASSY
Price unavailable
-20%
Spring Washer
14
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
WASHER, SPRING
Supersedes: 92901-05100-00
Cross Ship
Leaves in 2-5 days
$0.35
$0.28
You save $0.07
More details
-12%
Screw
19
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.60
You save $0.50
More details
-15%
Neutral Switch Assembly
22
Yamaha Motors
Neutral Switch Assembly4GY-82540-10-00
Required: 1
NEUTRAL SWITCH ASSY
Supersedes: 341-82540-01-00
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details
-15%
Tank Cap Gasket
23
Yamaha Motors
Tank Cap Gasket296-82543-00-00
Required: 1
GASKET
Supersedes: 116-82543-00-00
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
HORN
24
Yamaha Motors
HORN420-83371-41
Required: 1
HORN
Price unavailable
RESISTOR ASSY
27
Yamaha Motors
RESISTOR ASSY353-85370-00
Required: 1
RESISTOR ASSY
Price unavailable
WIRE HARNESS ASSY
31
Yamaha Motors
WIRE HARNESS ASSY597-82590-40
Required: 1
WIRE HARNESS ASSY
Price unavailable
WIRE HARNESS ASSY
31
Yamaha Motors
WIRE HARNESS ASSY1F4-82590-80
Required: 1
WIRE HARNESS ASSY
Price unavailable
-15%
Connector Cover
32
Yamaha Motors
Connector Cover538-82599-10-00
Required: 1
COVER, CONNECTER
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
