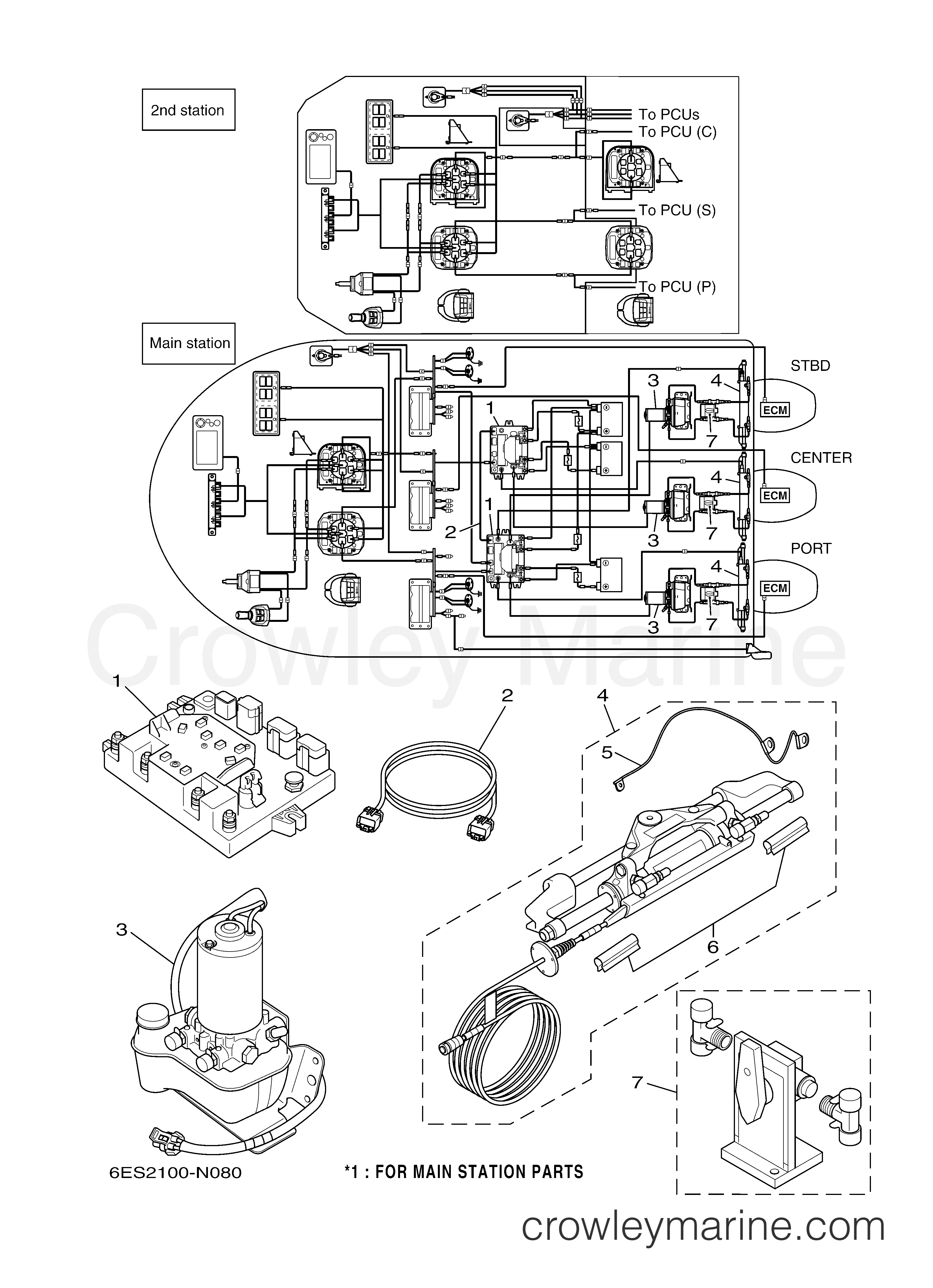

Various Years Rigging Helm Master - Helm Master 2014 STEERING KIT (TRIPLE) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Yamaha Motors Helm Master 2014 - STEERING KIT (TRIPLE)

Change View:

Yamaha Motors

Steering Connecting Unit6ES-859A0-01-00

Required: 2

STEERING CON UNIT (SERIALIZED)

Supersedes: 6ES-859A0-00-00

No longer availableSearch Nationwide Inventory

$3042.90

More details

Yamaha Motors

Link Cable6ES-81115-10-00

Required: 1

SCU LINK CABLE

$69.30

More details

Yamaha Motors

STEERING PUMP ASSY (SERIALIZED)6ES-7611A-01-00

Required: 3

STEERING PUMP ASSY (SERIALIZED)

Price unavailable

-15%

Yamaha Motors

Steering Cylinder Assembly6ES-42401-03-00

Required: 3

STEERING CYL ASSY (SERIALIZED)

Supersedes: 6ES-42401-02-00

~~$2028.00~~

$1723.80

You save $304.20

More details

-15%

Yamaha Motors

Earth Lead Wire6ES-8131Y-00-00

Required: 1

..WIRE, EARTH LEAD

~~$126.00~~

$107.10

You save $18.90

More details

-15%

Yamaha Motors

Holder Steering Lock6ES-23326-00-00

Required: 1

..STEERING LOCK CLIP

~~$25.25~~

$21.46

You save $3.79

More details

-15%

Yamaha Motors

Steering Bypass Valve Assembly6ES-13340-00-00

Required: 3

STEERING BY-PASS VALVE ASSY

~~$1150.00~~

$977.50

You save $172.50

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
