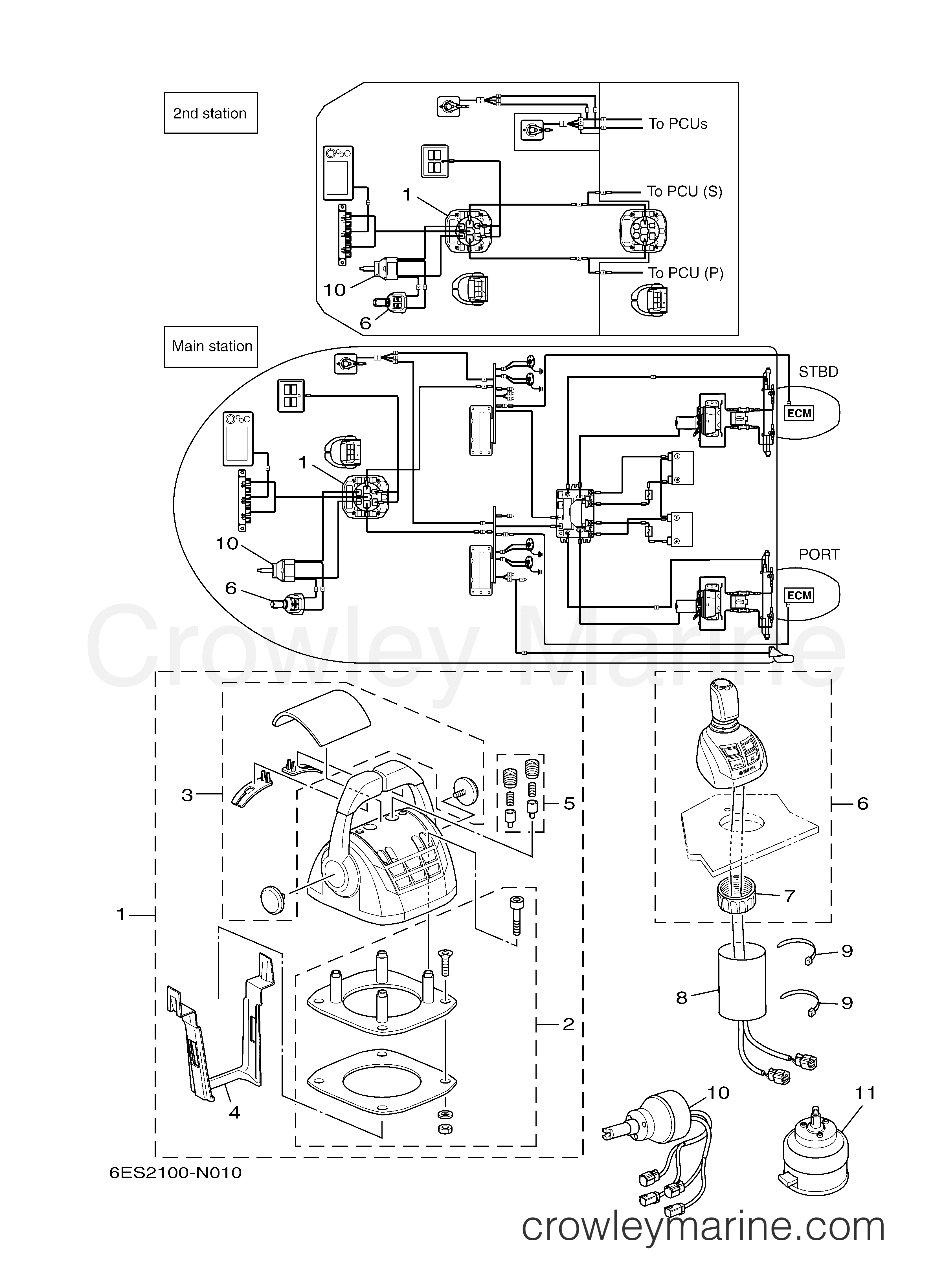

Various Years Rigging Helm Master - Helm Master 2014 REMOCON JOYSTICK (TWIN) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

9

to see part

9

Ships Now

9

Ships Later

9

Out of Stock

Yamaha Motors Helm Master 2014 - REMOCON JOYSTICK (TWIN)

Change View:

REMOTE CONTROL ASSY (SERIALIZED)

1

Yamaha Motors

REMOTE CONTROL ASSY (SERIALIZED)6ES-48207-02-00

Required: 1

REMOTE CONTROL ASSY (SERIALIZED)

Price unavailable

-15%

Attachment

Attachment6ES-48291-00-00

.ATTACHMENT

~~$184.00~~

$156.40

You save $27.60

-15%

Cover

Cover6ES-48119-00-00

.COVER SET

~~$159.00~~

$135.15

You save $23.85

-15%

Cable Set-Plate

Cable Set-Plate6ES-48354-00-00

.SET-PLATE, CABLE

~~$181.00~~

$153.85

You save $27.15

-15%

Adaptor Set

Adaptor Set6ES-48237-00-00

.ADAPTOR SET

~~$157.00~~

$133.45

You save $23.55

-15%

Joystick Assembly

Joystick Assembly6ES-482A0-03-00

JOYSTICK ASSY (SERIALIZED)

Supersedes: 6ES-482A0-00-00

No longer availableSearch Nationwide Inventory

~~$3868.00~~

$3287.80

You save $580.20

-15%

Nut

Nut6ES-48156-00-00

.NUT 1

~~$57.00~~

$48.45

You save $8.55

-15%

Connector Cover

Connector Cover6ES-82599-00-00

COVER, CONNECTER

~~$13.75~~

$11.69

You save $2.06

-50%

Clamp

Clamp90465-14M66-00

CLAMP

In stock

Only 2 remaining

~~$4.95~~

$2.48

You save $2.48

-15%

HELM ASSY.

HELM ASSY.6ES-615A0-01-00

HELM UNIT ASSY (SERIALIZED)

Supersedes: 6ES-615A0-00-00

No longer availableSearch Nationwide Inventory

~~$2301.00~~

$1955.85

You save $345.15

-15%

Tilt Helm Unit

Tilt Helm Unit6ES-6154A-01-00

TILT HELM UNIT

Supersedes: 6ES-6154A-00-00

No longer availableSearch Nationwide Inventory

~~$294.00~~

$249.90

You save $44.10

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
