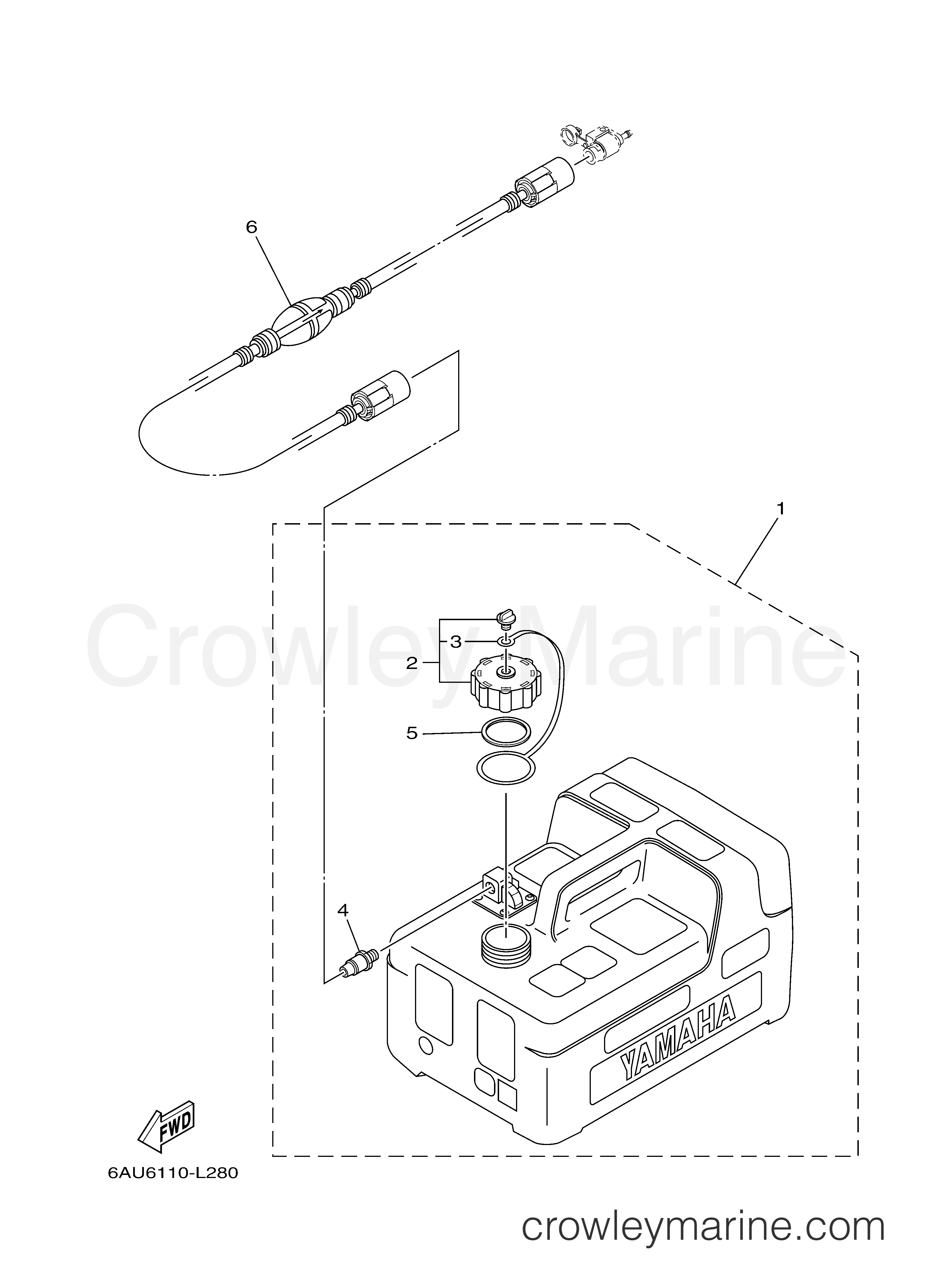

2012 Outboard 9.9hp - F9.9LEA FUEL TANK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

-15%

Yamaha Motors

FUEL TANK ASSEMBLY (12 Liters)6YL-24201-21-00

Required: 1

FUEL TANK ASSY (12L)

No longer availableSearch Nationwide Inventory

~~$152.00~~

$129.20

You save $22.80

More details

-50%

Yamaha Motors

Cap Assembly6YL-24610-10-00

Required: 1

.CAP ASSY

In stock

Only 1 remaining

~~$32.99~~

$16.50

You save $16.50

More details

-50%

Yamaha Motors

Cap Gasket6YL-24641-10-00

Required: 1

..GASKET, CAP 1

In stock

Only 1 remaining

~~$3.90~~

$1.95

You save $1.95

More details

-15%

Yamaha Motors

Joint Pipe6YL-24377-10-00

Required: 1

.PIPE, JOINT 2

Supersedes: 6YL-24377-00-00

~~$32.99~~

$28.04

You save $4.95

-15%

.RING

~~$2.70~~

$2.29

You save $0.41

More details

-15%

Yamaha Motors

6YK-24306-64-006YK-24306-68-00

Required: 1

FUEL PIPE COMP. 1

Supersedes: 6YK-24306-72-00

No longer availableSearch Nationwide Inventory

~~$115.15~~

$97.88

You save $17.27

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
