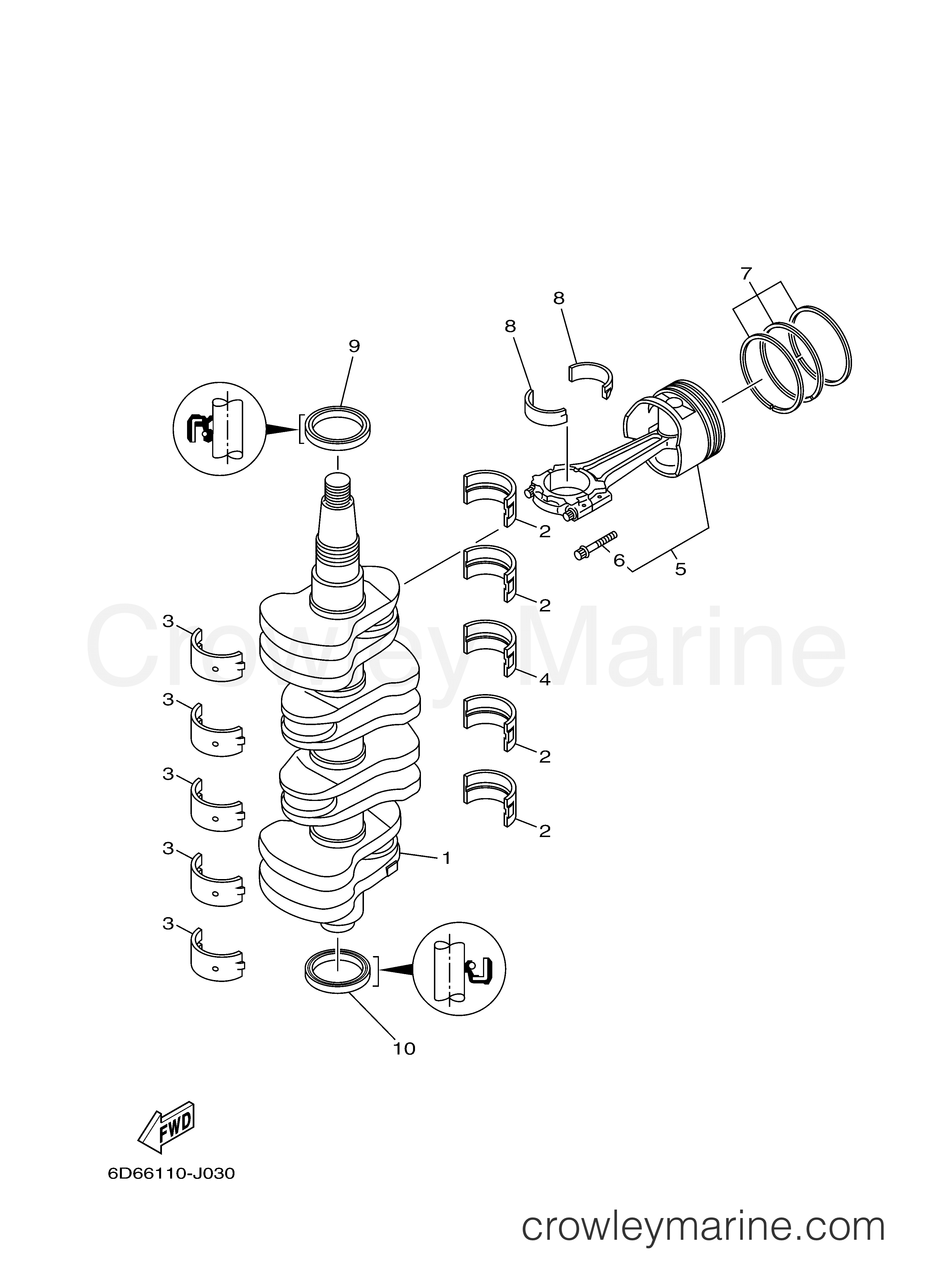

2009 Outboard 75hp - F75TLR CRANKSHAFT PISTON diagram
-15%
1
Yamaha Motors
Crankshaft6D8-11411-01-00
Required: 1
CRANKSHAFT
Supersedes: 6D8-11411-00-00
$889.09
You save $156.90
-15%
2
Yamaha Motors
Crankshaft Plane Bearing67F-11416-20-00
Required: 4
PLANE BEARING, CRANKSHAFT 1
$31.44
You save $5.55
-15%
2
Yamaha Motors
Crankshaft Plane Bearing67F-11416-00-00
Required: 4
PLANE BEARING, CRANKSHAFT 1
In stock
Only 2 remaining
$31.44
You save $5.55
-15%
2
Yamaha Motors
Crankshaft Plane Bearing67F-11416-10-00
Required: 4
PLANE BEARING, CRANKSHAFT 1
$31.44
You save $5.55
-15%
3
Yamaha Motors
Crankshaft Plane Bearing67F-11417-10-00
Required: 5
PLANE BEARING, CRANKSHAFT 2
In stock
5+ in stock
$31.44
You save $5.55
-15%
3
Yamaha Motors
Crankshaft Plane Bearing67F-11417-30-00
Required: 5
PLANE BEARING, CRANKSHAFT 2
$29.74
You save $5.25
-15%
3
Yamaha Motors
Crankshaft Plane Bearing67F-11417-20-00
Required: 5
PLANE BEARING, CRANKSHAFT 2
$31.44
You save $5.55
-15%
3
Yamaha Motors
Crankshaft Plane Bearing67F-11417-00-00
Required: 5
PLANE BEARING, CRANKSHAFT 2
In stock
Only 2 remaining
$31.44
You save $5.55
-15%
4
Yamaha Motors
Crankshaft Plane Bearing67F-11418-20-00
Required: 1
PLANE BEARING, CRANKSHAFT 3
$40.79
You save $7.20
-15%
4
Yamaha Motors
Crankshaft Plane Bearing67F-11418-10-00
Required: 1
PLANE BEARING, CRANKSHAFT 3
$39.09
You save $6.90
-15%
4
Yamaha Motors
Crankshaft Plane Bearing67F-11418-00-00
Required: 1
PLANE BEARING, CRANKSHAFT 3
$39.09
You save $6.90
-15%
5
Yamaha Motors
Piston/Con-Rod Assembly Std6D8-W1164-21-00
Required: 4
PISTON/CON-ROD ASSY(STD)
$372.29
You save $65.70
-15%
5
Yamaha Motors
Piston/Con-Rod Assembly6D8-W1164-31-00
Required: 4
PISTON/CON-ROD ASSY(0.25MM OS)
$372.29
You save $65.70
-15%
6
Yamaha Motors
Connecting Rod BoltK1C-A3275-00-00
Required: 2
.BOLT, CONNECTING ROD
$5.94
You save $1.05
-15%
7
Yamaha Motors
Piston Ring Set (Standard)6D8-11603-01-00
Required: 4
PISTON RING SET (STD)
No longer availableSearch Nationwide Inventory
$59.97
You save $10.58
-15%
7
Yamaha Motors
PISTON RING SET (0.25MM O/S)6D8-11604-11-00
Required: 4
PISTON RING SET (0.25MM O/S)
Supersedes: 6D8-11604-01-00
$68.84
You save $12.15
-15%
8
Yamaha Motors
Connecting Rod Plane Bearing6D8-11656-30-00
Required: 8
PLANE BEARING, CONNECTING ROD
In stock
Only 1 remaining
$12.74
You save $2.25
-15%
8
Yamaha Motors
Connecting Rod Plane Bearing6D8-11656-20-00
Required: 8
PLANE BEARING, CONNECTING ROD
$12.74
You save $2.25
-50%
8
Yamaha Motors
Connecting Rod Plane Bearing6D8-11656-00-00
Required: 8
PLANE BEARING, CONNECTING ROD
In stock
Only 2 remaining
$7.50
You save $7.50
-15%
8
Yamaha Motors
Connecting Rod Plane Bearing6D8-11656-10-00
Required: 8
PLANE BEARING, CONNECTING ROD
$12.74
You save $2.25
-20%
$32.79
You save $8.20
-15%
$34.84
You save $6.15
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
