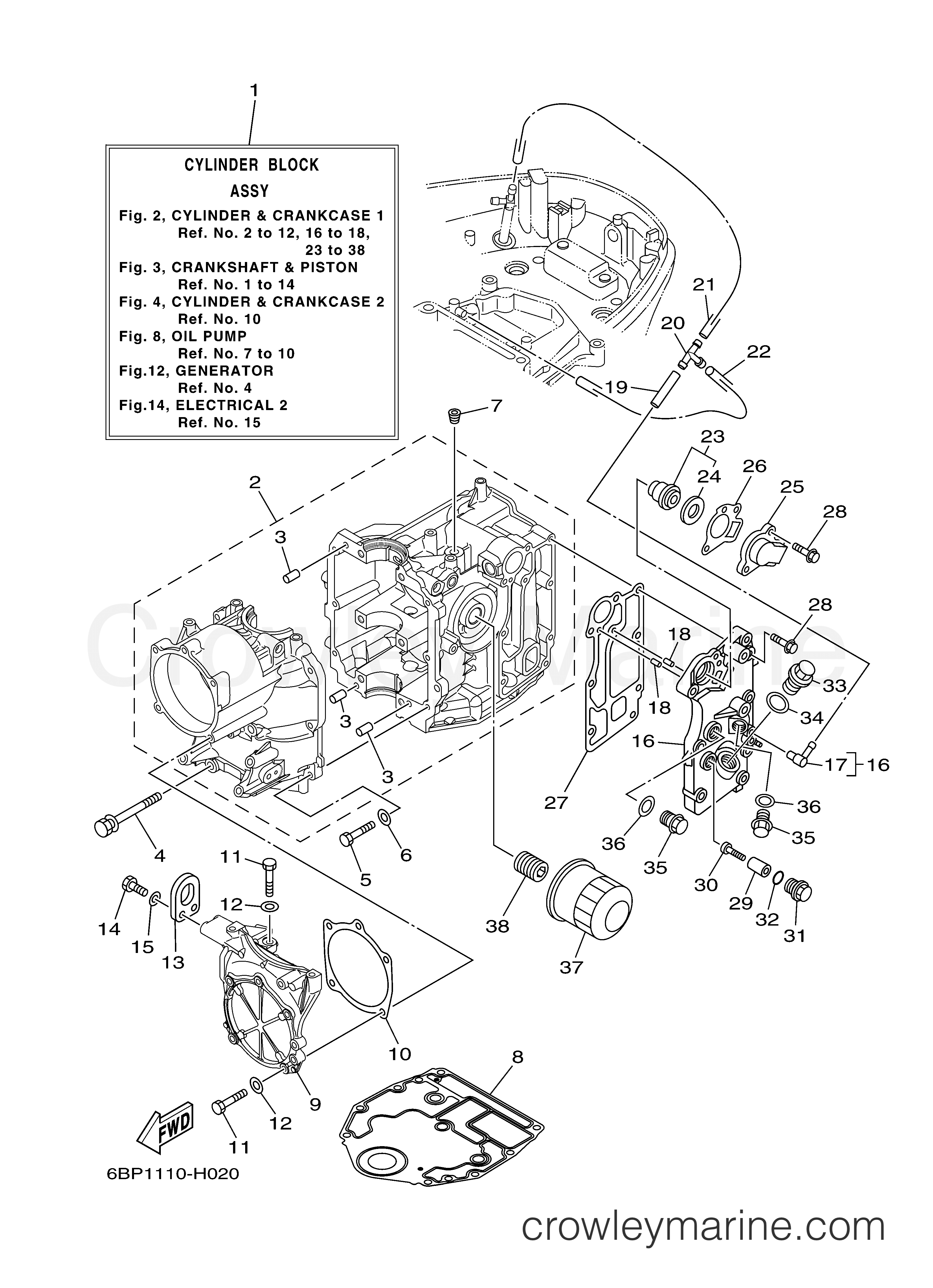

2009 Outboard 25hp - F25LEA CYLINDER CRANKCASE 1 diagram
-15%
1
Yamaha Motors
CYLINDER BLOCK ASSEMBLY6BL-W009B-03-1S
Required: 1
CYLINDER BLOCK ASSY
Supersedes: 6BL-W009B-00-1S
$1291.49
You save $227.91
-15%
2
Yamaha Motors
Crankcase Assembly6BL-15100-01-1S
Required: 1
CRANKCASE ASSY
Supersedes: 6BL-15100-00-1S
$1542.74
You save $272.25
-20%
In stock
5+ in stock
$3.68
You save $0.92
-20%
4
Yamaha Motors
Bolt w/ Washer90119-08M01-00
Required: 6
BOLT, WITH WASHER
$5.99
You save $1.50
-20%
In stock
5+ in stock
$1.28
You save $0.32
-20%
6
Yamaha Motors
Plate Washer92990-06600-00
Required: 6
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-15%
7
Yamaha Motors
PLUG, TAPER SCREW90344-51007-00
Required: 1
PLUG, TAPER SCREW
Supersedes: 90344-51003-00
$5.94
You save $1.05
-15%
8
Yamaha Motors
Cylinder Gasket6BG-11351-01-00
Required: 1
.GASKET, CYLINDER
Supersedes: 6BG-11351-00-00
No longer availableSearch Nationwide Inventory
$62.77
You save $11.08
-15%
$113.04
You save $19.95
-15%
$12.74
You save $2.25
-20%
In stock
5+ in stock
$1.28
You save $0.32
-20%
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 6
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-15%
13
Yamaha Motors
Engine Hanger62Y-11119-00-00
Required: 1
HANGER, ENGINE
$11.89
You save $2.10
-20%
14
Yamaha Motors
Bolt97080-06020-00
Required: 2
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.68
You save $0.92
-20%
15
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-15%
16
Yamaha Motors
OUTER COVER, EXHAUST & PIPE99999-04234-00
Required: 1
OUTER COVER, EXHAUST
Supersedes: 6BL-41113-00-1S
$88.39
You save $15.60
-20%
17
Yamaha Motors
Hose Nipple676-11372-00-00
Required: 1
.NIPPLE, HOSE
In stock
5+ in stock
$12.79
You save $3.20
-20%
In stock
5+ in stock
$4.39
You save $1.10
-15%
19
Yamaha Motors
Hose (L180)90445-09M00-00
Required: 1
HOSE (L43)
Supersedes: 90445-09057-00
No longer availableSearch Nationwide Inventory
$5.91
You save $1.04
-20%
20
Yamaha Motors
Joint Pipe688-24378-00-00
Required: 1
PIPE, JOINT 3
In stock
5+ in stock
$13.59
You save $3.40
-20%
21
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L350)
Supersedes: 90445-09251-00
In stock
5+ in stock
$9.99
You save $2.50
-20%
22
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L300)
Supersedes: 90445-09104-00
In stock
5+ in stock
$9.99
You save $2.50
-20%
23
Yamaha Motors
Thermostat66M-12411-01-00
Required: 1
THERMOSTAT
Supersedes: 6G8-12411-03-00
In stock
5+ in stock
$36.76
You save $9.19
-20%
24
Yamaha Motors
Thermostat Seal688-12412-00-00
Required: 1
.SEAL, THERMOSTAT
In stock
5+ in stock
$4.79
You save $1.20
-20%
25
Yamaha Motors
Thermostat Cover6C5-12413-00-9S
Required: 1
COVER, THERMOSTAT
Supersedes: 6C5-12413-00-1S
$16.79
You save $4.20
-20%
26
Yamaha Motors
GASKET, COVER62Y-12414-01-00
Required: 1
.GASKET, COVER
Supersedes: 62Y-12414-00-00
In stock
5+ in stock
$8.39
You save $2.10
-15%
27
Yamaha Motors
Exhaust Outer Cover Gasket6BL-41114-00-00
Required: 1
.GASKET, EXHAUST OUTER COVER
$14.02
You save $2.47
-20%
28
Yamaha Motors
Bolt w/ Washer90119-06MA5-00
Required: 8
BOLT, WITH WASHER
In stock
5+ in stock
$2.92
You save $0.73
-20%
In stock
5+ in stock
$4.76
You save $1.19
-20%
30
Yamaha Motors
Pan Head Screw98580-05525-00
Required: 1
.SCREW, PAN HEAD
Supersedes: 97880-05025-00
In stock
Only 2 remaining
$1.60
You save $0.40
-15%
31
Yamaha Motors
Blind Plug6G8-11197-A0-00
Required: 1
PLUG, BLIND
Supersedes: 6G8-11197-01-00
No longer availableSearch Nationwide Inventory
$11.56
You save $2.04
-20%
$3.88
You save $0.97
-15%
33
Yamaha Motors
Straight Screw Plug90340-18M09-00
Required: 1
.PLUG, STRAIGHT SCREW
$24.64
You save $4.35
-15%
$8.07
You save $1.42
-20%
35
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 2
PLUG, STRAIGHT SCREW
In stock
5+ in stock
$11.59
You save $2.90
-20%
In stock
Only 2 remaining
$2.48
You save $0.62
-20%
37
Yamaha Motors
ELEMENT ASSY, OIL5GH-13440-90-00
Required: 1
ELEMENT ASSY, OIL CLEANER
Supersedes: 5GH-13440-20-00
PartX Recommends:Mercury Marine 8M0154780
In stock
5+ in stock
$13.19
You save $3.30
-15%
$14.87
You save $2.62
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
