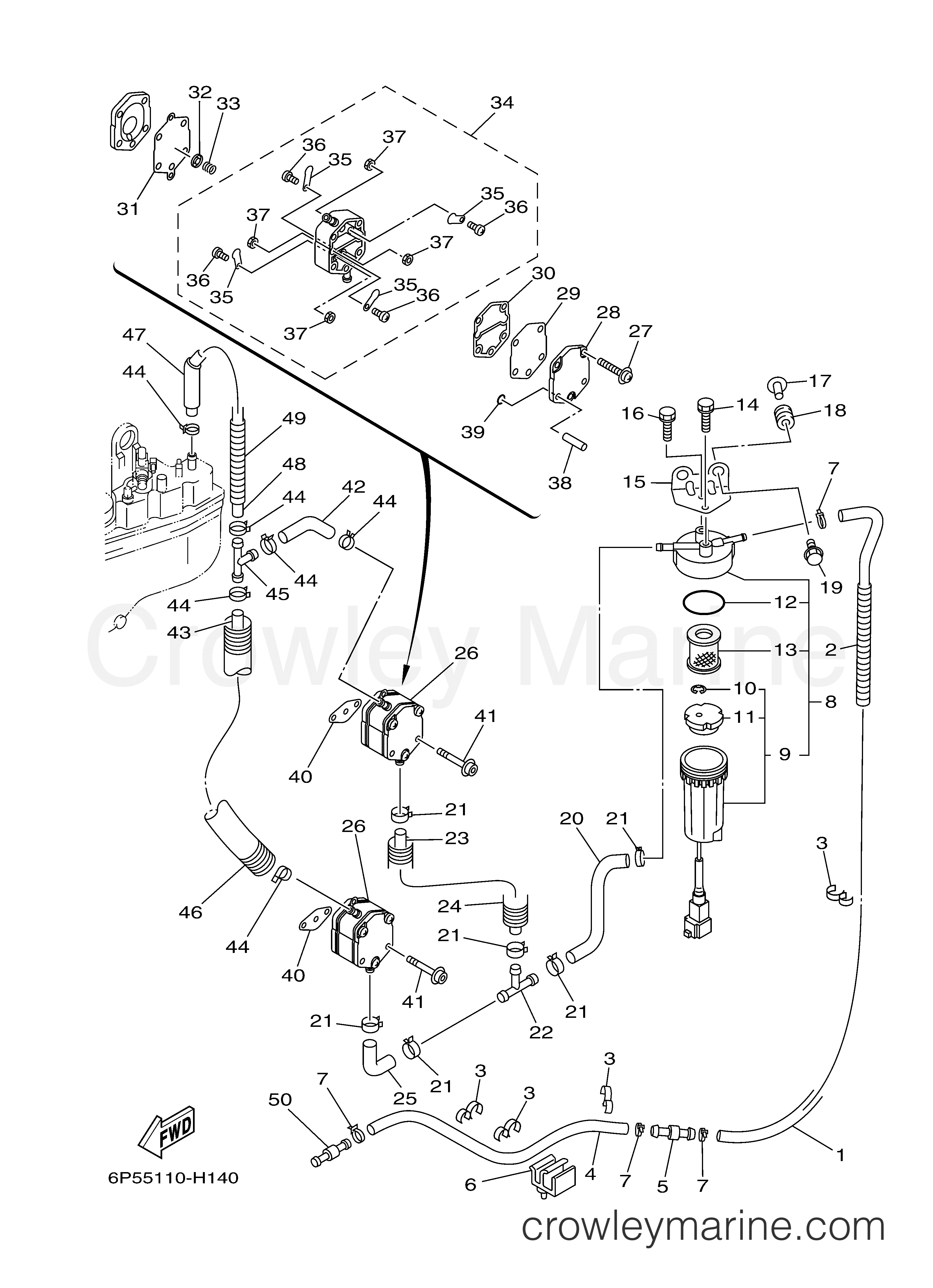

2008 Outboard 200hp - VZ200RTLR FUEL diagram
-20%
1
Yamaha Motors
Pipe61A-24313-10-00
Required: 1
PIPE 3
Supersedes: 61A-24313-00-00
In stock
5+ in stock
$13.59
You save $3.40
-15%
$4.04
You save $0.71
-20%
$1.24
You save $0.31
-20%
In stock
5+ in stock
$51.19
You save $12.80
-20%
5
Yamaha Motors
Joint Pipe6R3-24377-00-00
Required: 1
PIPE, JOINT 2
In stock
5+ in stock
$7.59
You save $1.90
-15%
$46.74
You save $8.25
-20%
7
Yamaha Motors
Clamp90465-10098-00
Required: 4
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.24
You save $0.56
8
Yamaha Motors
Filter Assembly6P3-24560-23-00
Required: 1
FILTER ASSY
Supersedes: 6P3-24560-11-00
PartX Recommends:Yamaha Motors 6P3-24560-23-00
No longer availableSearch Nationwide Inventory
$166.16
-15%
9
Yamaha Motors
Obsolete Yamaha Part6P3-WS24B-11-00
Required: 1
.CUP, FILTER
Supersedes: 6P3-24562-11-00
No longer availableSearch Nationwide Inventory
$126.65
You save $22.35
-20%
In stock
Only 1 remaining
$4.79
You save $1.20
-20%
11
Yamaha Motors
Water Level Float6P3-24469-00-00
Required: 1
..FLOAT, WATER LEVEL
$9.19
You save $2.30
-20%
In stock
Only 5 remaining
$9.08
You save $2.27
-20%
13
Yamaha Motors
ELEMENT, FILTER (WITH TAG)6P3-WS24A-02-00
Required: 1
.ELEMENT, FILTER
Supersedes: 6P3-24563-00-00
In stock
5+ in stock
$23.96
You save $5.99
-50%
14
Yamaha Motors
Bolt w/ Washer97595-06514-00
Required: 1
BOLT, WITH WASHER
In stock
Only 2 remaining
$1.35
You save $1.35
-15%
15
Yamaha Motors
Filter Bracket68F-24566-00-00
Required: 1
BRACKET, FILTER
$12.32
You save $2.17
-50%
16
Yamaha Motors
Bolt w/ Washer97595-06514-00
Required: 1
BOLT, WITH WASHER
In stock
Only 2 remaining
$1.35
You save $1.35
-15%
In stock
Only 1 remaining
$7.64
You save $1.35
-50%
In stock
Only 3 remaining
$5.00
You save $5.00
-20%
19
Yamaha Motors
Bolt with Washer90119-06311-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06M88-00
$1.59
You save $0.40
-20%
20
Yamaha Motors
Fuel Pipe68F-24311-10-00
Required: 1
PIPE, FUEL 1
Supersedes: 68F-24311-00-00
$12.79
You save $3.20
-20%
21
Yamaha Motors
Clamp90465-10098-00
Required: 6
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.24
You save $0.56
-20%
22
Yamaha Motors
Joint Pipe6E5-24378-00-00
Required: 1
PIPE, JOINT 3
In stock
Only 2 remaining
$17.59
You save $4.40
-20%
In stock
Only 3 remaining
$12.79
You save $3.20
-15%
24
Yamaha Motors
With Spring (L=130) Hose90447-19004-00
Required: 1
HOSE, WITH SPRING (L=130)
$2.54
You save $0.45
-20%
In stock
5+ in stock
$11.19
You save $2.80
-20%
26
Yamaha Motors
FUEL PUMP ASSY6E5-24410-09-00
Required: 2
FUEL PUMP ASSY
Supersedes: 6E5-24410-04-00
In stock
5+ in stock
$45.59
You save $11.40
-15%
27
Yamaha Motors
Screw (M8 X 40)6E5-24444-09-00
Required: 3
.SCREW
Supersedes: 6E5-24444-01-00
$5.52
You save $0.98
-15%
$23.79
You save $4.20
-20%
$10.39
You save $2.60
-15%
30
Yamaha Motors
Body Gasket6E5-24435-01-00
Required: 1
.GASKET, BODY 2
$5.52
You save $0.97
-15%
$45.89
You save $8.10
-15%
32
Yamaha Motors
Spring Seat648-24424-00-00
Required: 1
.SEAT, SPRING
In stock
Only 1 remaining
$3.87
You save $0.68
-15%
33
Yamaha Motors
Diaphragm Spring6E5-24423-00-00
Required: 1
.SPRING, DIAPHRAGM
In stock
Only 1 remaining
$9.34
You save $1.65
-15%
$64.59
You save $11.40
-20%
35
Yamaha Motors
Check Valve62Y-24421-01-00
Required: 4
..VALVE, CHECK
Supersedes: 6A0-24421-01-00
In stock
5+ in stock
$12.79
You save $3.20
-15%
36
Yamaha Motors
Pan Head Screw6A0-14325-00-00
Required: 4
..SCREW, PAN HEAD
In stock
Only 4 remaining
$4.67
You save $0.82
-20%
In stock
Only 4 remaining
$1.48
You save $0.37
-15%
38
Yamaha Motors
Fuel Pump Bushing6E5-24492-00-00
Required: 2
.BUSH, FUEL PUMP
$12.32
You save $2.17
-15%
$6.79
You save $1.20
-20%
40
Yamaha Motors
Fuel Pump Gasket650-24431-A0-00
Required: 2
GASKET, FUEL PUMP 1
In stock
5+ in stock
$2.88
You save $0.72
-15%
41
Yamaha Motors
Hexagon Socket Head Bolt90110-06128-00
Required: 4
BOLT, HEXAGON SOCKET HEAD
$4.17
You save $0.74
-20%
In stock
5+ in stock
$11.19
You save $2.80
-20%
43
Yamaha Motors
Pipe6E5-24313-10-00
Required: 1
PIPE 3
Supersedes: 6E5-24313-00-00
In stock
Only 2 remaining
$16.79
You save $4.20
-20%
44
Yamaha Motors
Clamp90465-10098-00
Required: 6
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.24
You save $0.56
-20%
45
Yamaha Motors
Joint Pipe6E5-24378-00-00
Required: 1
PIPE, JOINT 3
In stock
Only 2 remaining
$17.59
You save $4.40
-15%
No longer availableSearch Nationwide Inventory
$4.72
You save $0.83
-20%
In stock
5+ in stock
$2.92
You save $0.73
-20%
48
Yamaha Motors
Fuel Pipe68V-24311-00-00
Required: 1
HOSE (L235)
Supersedes: 90445-13M12-00
In stock
Only 1 remaining
$17.59
You save $4.40
-15%
$4.04
You save $0.71
-20%
50
Yamaha Motors
Joint Pipe6R3-24377-10-00
Required: 1
PIPE, JOINT 2
In stock
Only 1 remaining
$5.19
You save $1.30
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
