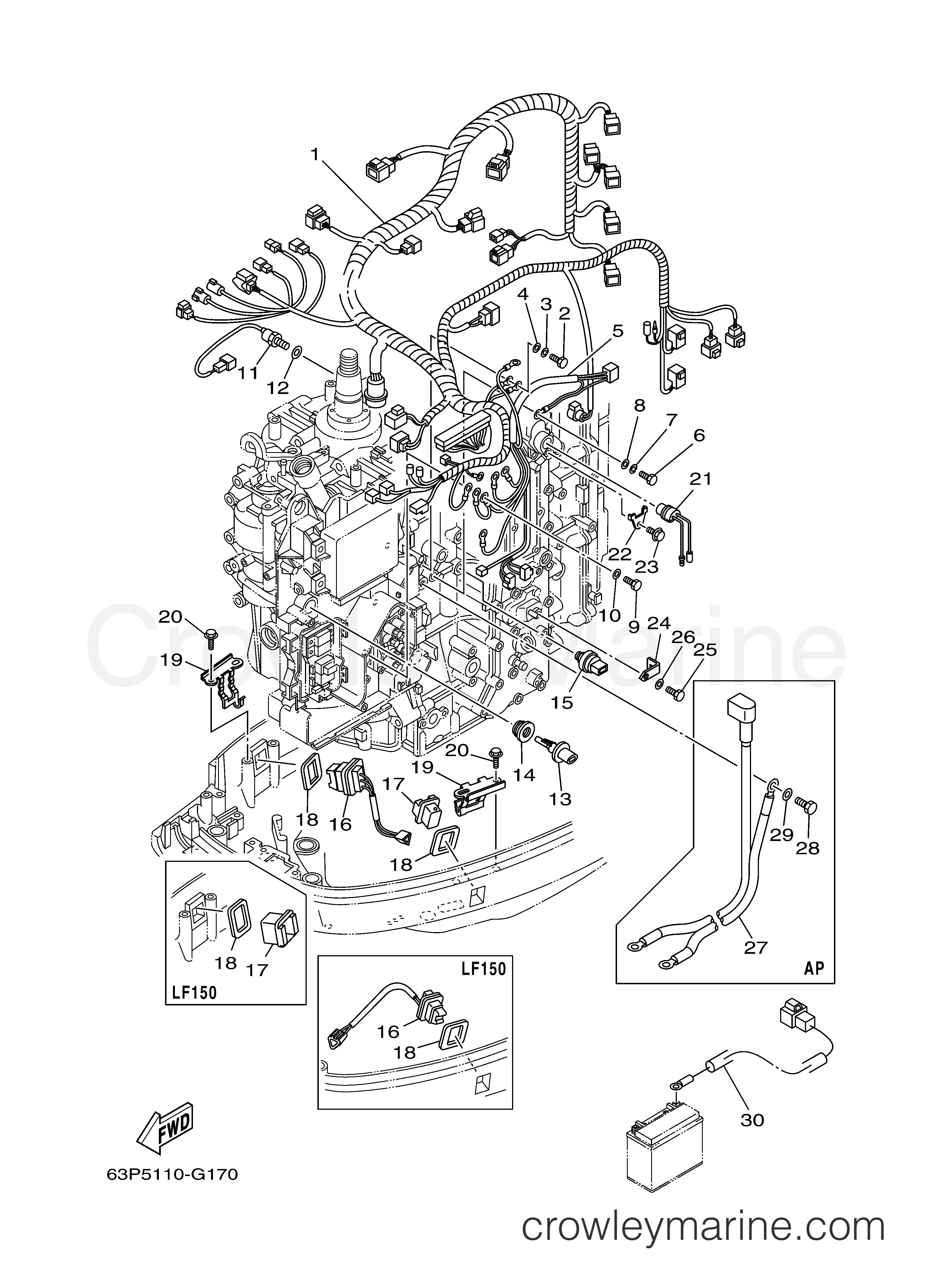

2007 Outboard 150hp - LF150TXR ELECTRICAL 3 diagram
-15%
1
Yamaha Motors
Wire Harness Assembly63P-82590-31-00
Required: 1
WIRE HARNESS ASSY
Supersedes: 63P-82590-30-00
$925.64
You save $163.35
-20%
2
Yamaha Motors
Bolt97080-06020-00
Required: 1
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.68
You save $0.92
-20%
3
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.84
You save $0.71
-20%
4
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-15%
5
Yamaha Motors
Wire Harness Assembly63P-8259M-00-00
Required: 1
WIRE HARNESS ASSY 2
$197.19
You save $34.80
-20%
6
Yamaha Motors
Bolt97080-06020-00
Required: 1
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.68
You save $0.92
-20%
7
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.84
You save $0.71
-20%
8
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-15%
No longer availableSearch Nationwide Inventory
$2.54
You save $0.45
-20%
10
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-20%
11
Yamaha Motors
THERMOSENSOR ASSY61A-85790-01-00
Required: 1
THERMOSENSOR ASSY
Supersedes: 61A-85790-00-00
In stock
5+ in stock
$117.95
You save $29.04
-20%
12
Yamaha Motors
Plate Washer92990-10600-00
Required: 1
WASHER, PLATE
In stock
Only 3 remaining
$2.48
You save $0.62
-15%
13
Yamaha Motors
Air Temperature Sensor63P-85886-00-00
Required: 1
SENSOR, AIR TEMPERATURE
$39.94
You save $7.05
-15%
$6.79
You save $1.20
-20%
15
Yamaha Motors
SENDER, OIL PRESSURE6AW-83651-01-00
Required: 1
SENDER, OIL PRESSURE
Supersedes: 69J-83651-01-00
In stock
Only 2 remaining
$296.95
You save $74.04
-20%
16
Yamaha Motors
Trim & Tilt Switch Assembly69J-82563-01-00
Required: 1
TRIM & TILT SWITCH ASSY
Supersedes: 69J-82563-00-00
PartX Recommends:Yamaha Motors 69J-82563-01-00
In stock
5+ in stock
$52.79
You save $13.20
-15%
17
Yamaha Motors
Bottom Cover69J-42723-01-00
Required: 1
COVER, BOTTOM
Supersedes: 69J-42723-00-8D
$29.74
You save $5.25
-20%
18
Yamaha Motors
Tank Cap Gasket69J-82587-01-00
Required: 2
GASKET
Supersedes: 69J-82587-00-00
In stock
Only 1 remaining
$4.79
You save $1.20
-15%
19
Yamaha Motors
Bracket63P-83614-01-00
Required: 2
BRACKET
Supersedes: 63P-83614-00-00
$20.39
You save $3.60
-20%
In stock
5+ in stock
$1.48
You save $0.37
-20%
21
Yamaha Motors
Thermo Switch Assembly6P2-82560-01-00
Required: 1
THERMO SWITCH ASSY
$47.99
You save $12.00
-15%
$14.02
You save $2.47
-20%
In stock
Only 3 remaining
$2.36
You save $0.59
-15%
24
Yamaha Motors
Bracket63P-8366P-01-00
Required: 1
BRACKET 4
Supersedes: 63P-8366P-00-00
$7.22
You save $1.27
-15%
No longer availableSearch Nationwide Inventory
$2.54
You save $0.45
-20%
26
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-15%
27
Yamaha Motors
Battery Cable63P-82105-01-00
Required: 1
BATTERY CABLE
Supersedes: 63P-82105-00-00
In stock
Only 1 remaining
$367.95
You save $65.04
-15%
$5.09
You save $0.90
-20%
29
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
WASHER
Supersedes: 92995-08600-00
In stock
Only 5 remaining
$2.24
You save $0.56
-15%
30
Yamaha Motors
LEAD WIRE69J-81949-03-00
Required: 1
WIRE, LEAD (ISOLATOR CABLE)
Supersedes: 68F-81949-00-00
$77.35
You save $13.65
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
