All diagrams for this model

2007 Outboard 200hp - F200TXR FUEL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

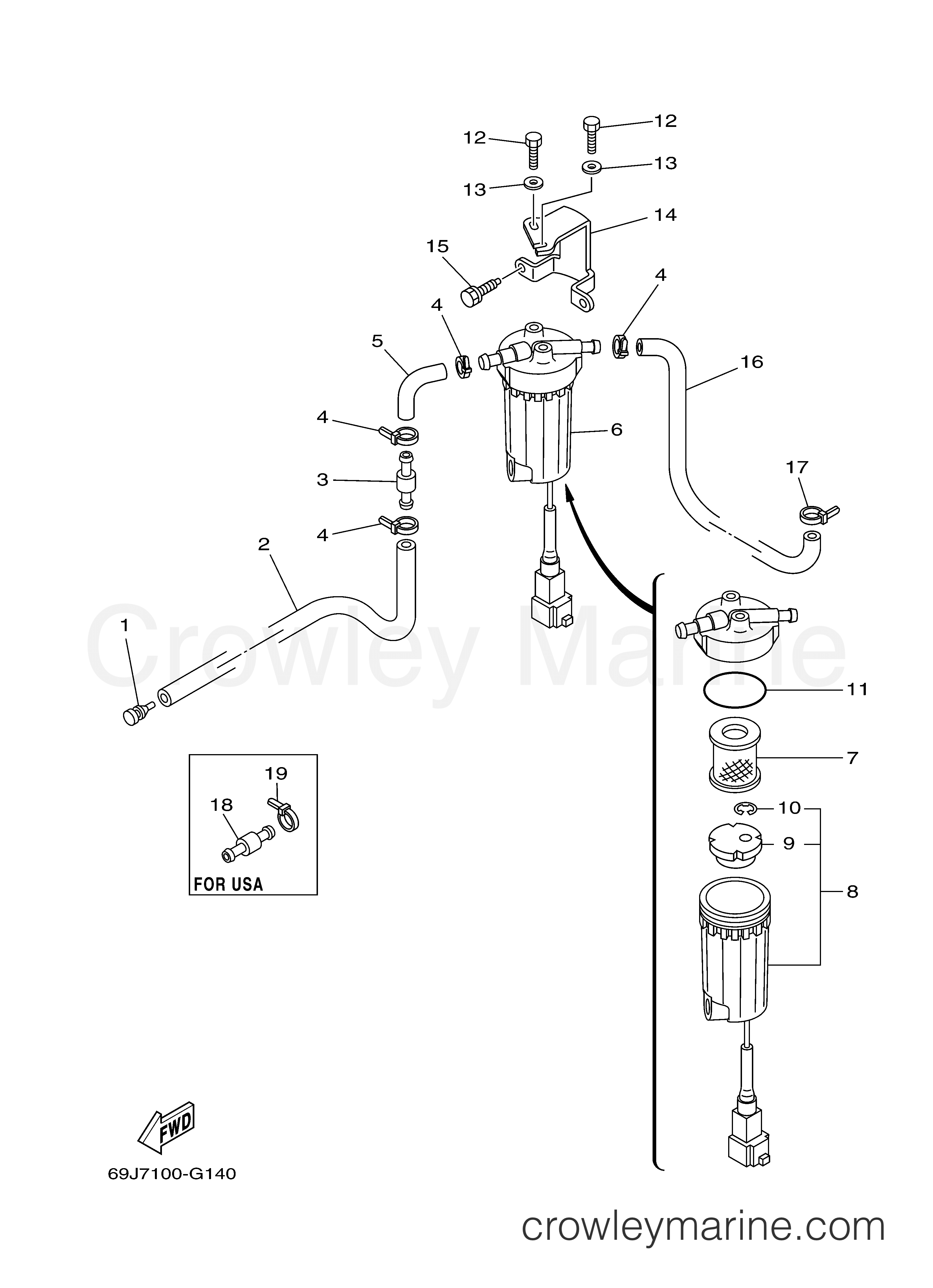

Yamaha Motors F200TXR - FUEL 1
Change View:
-20%
DAMPER 2
1
Yamaha Motors
DAMPER 2689-85547-01-00
Required: 1
DAMPER
Supersedes: 689-85547-00-00
Cross Ship
Leaves in 2-5 days
$5.99
$4.79
You save $1.20
More details
-15%
FILTER ASSY
6
Yamaha Motors
FILTER ASSY6P3-24560-05-00
Required: 1
FILTER ASSY
Supersedes: 6P3-24560-00-00
Cross Ship
Leaves in 2-5 days
$82.95
$70.51
You save $12.44
More details
-20%
Water Level Float
9
Yamaha Motors
Water Level Float6P3-24469-00-00
Required: 1
..FLOAT, WATER LEVEL
Cross Ship
Leaves in 2-5 days
$11.49
$9.19
You save $2.30
More details
-15%
Filter Bracket
14
Yamaha Motors
Filter Bracket69J-24566-00-00
Required: 1
BRACKET, FILTER
Cross Ship
Leaves in 2-5 days
$43.99
$37.39
You save $6.60
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
